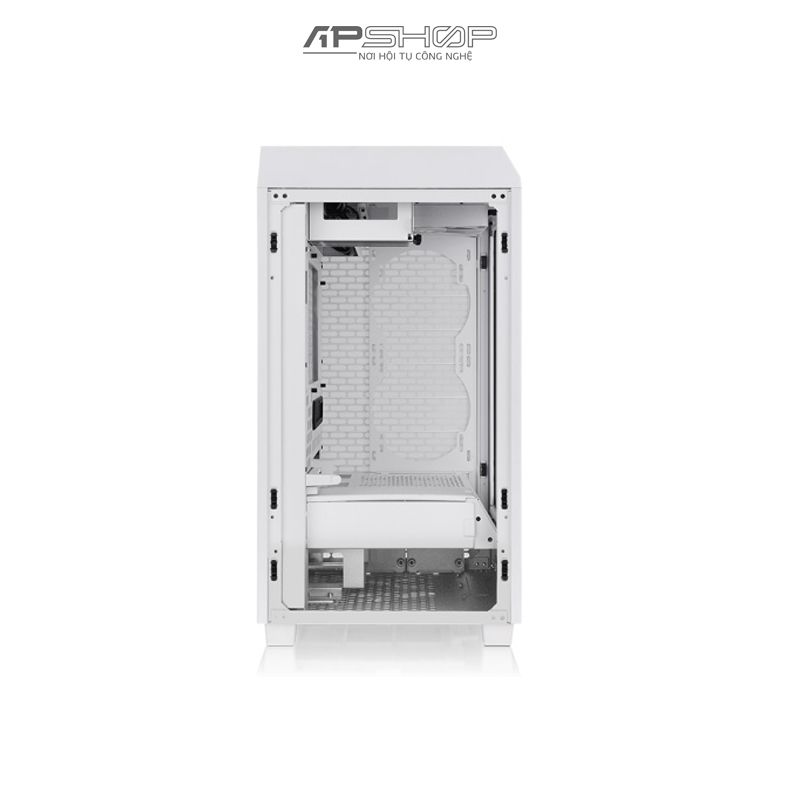

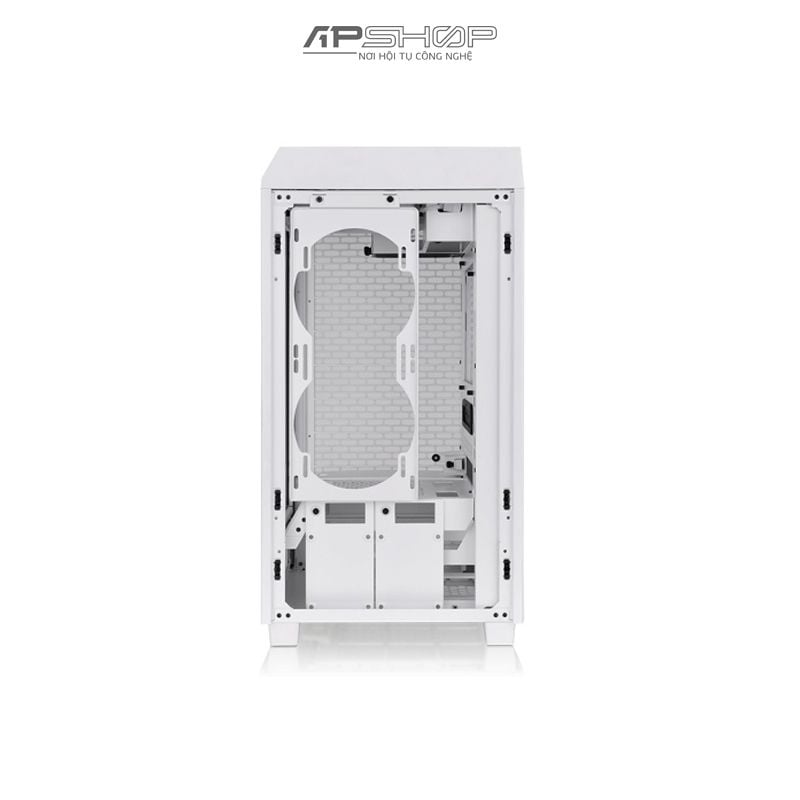

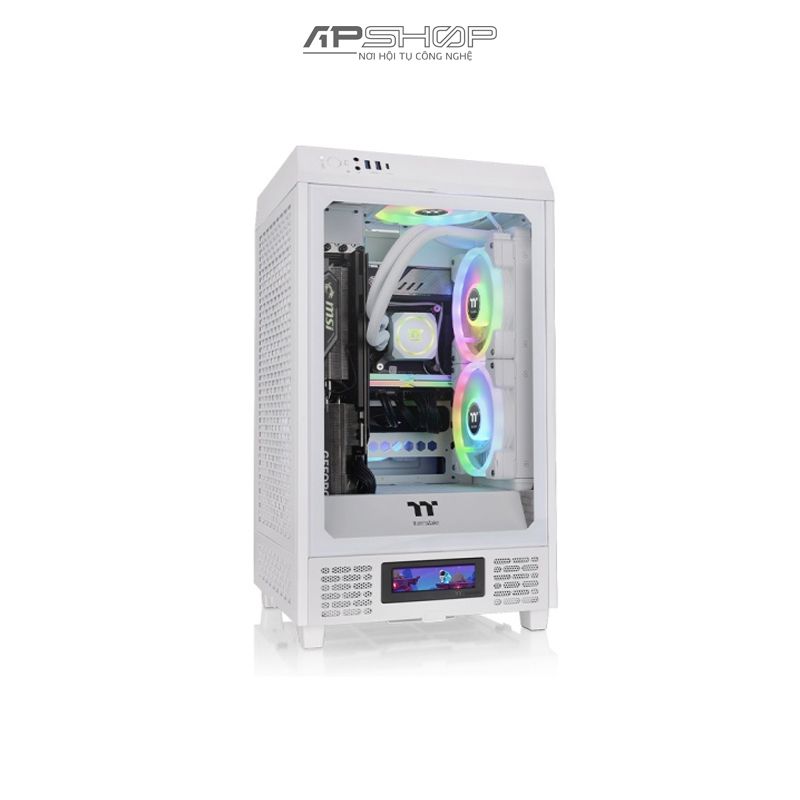

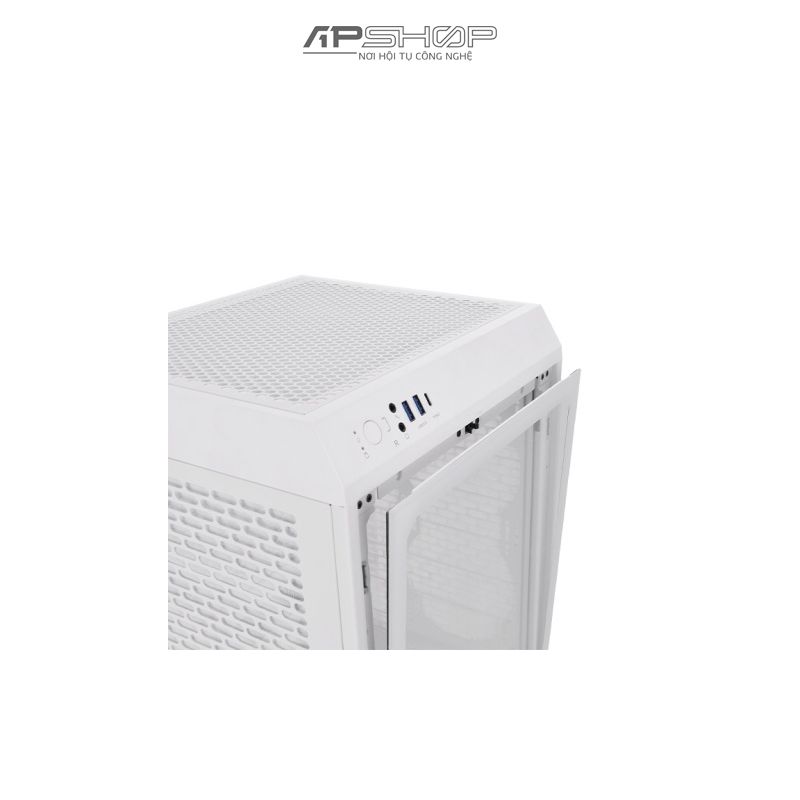

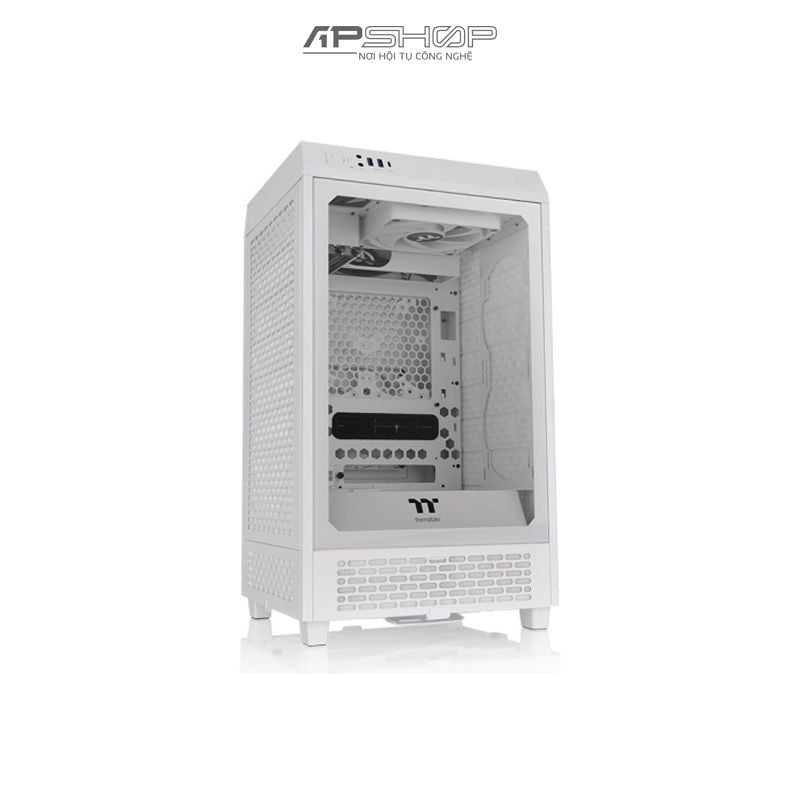

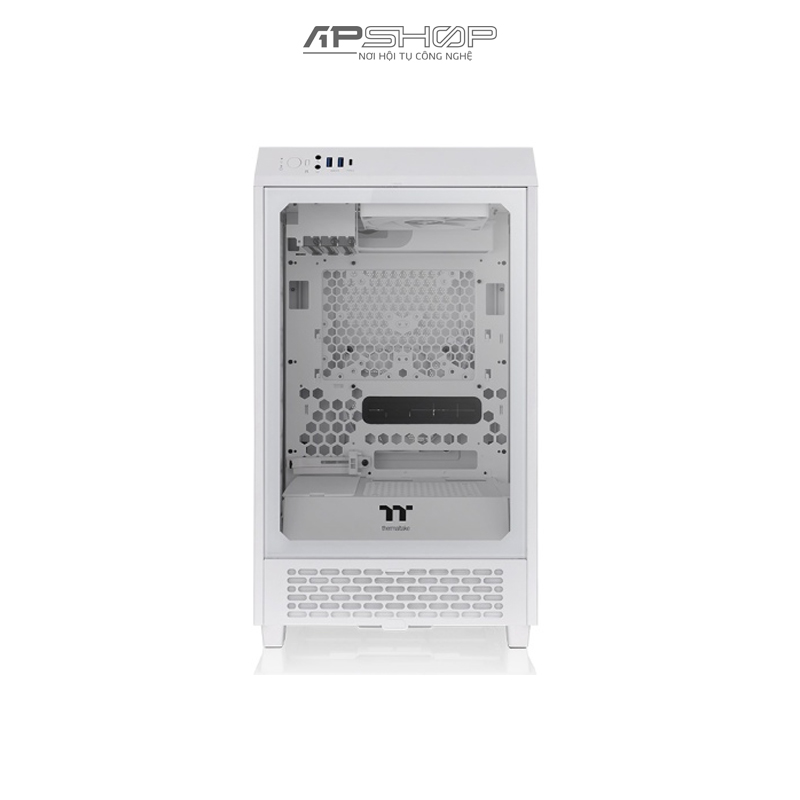

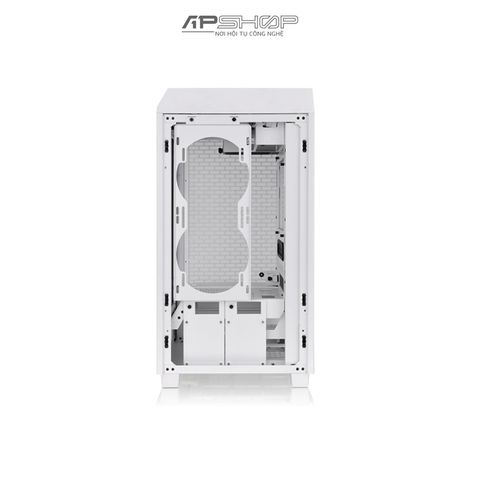

Case Thermaltake TOWER 200 TG Snow

P/N: CA-1X9-00S4WN-00

SERIES: The Tower

CASE TYPE: Mini Tower

DIMENSION (H X W X D): 537 x 300 x 280 mm / (21.14 x 11.8 x 11 inch)

NET WEIGHT: 7.7 kg / 16.98 lbs.

PANEL: 3mm Tempered Glass x 1

COLOR: Snow

MATERIAL: SPCC

COOLING SYSTEM

Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

Rear(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

DRIVE BAYS: 2 x 3.5”, 2 x 2.5” or 4 x 2.5”

EXPANSION SLOTS: 3

MOTHERBOARDS: 6.7" x 6.7" (Mini ITX)

I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT

Top:

1 x 120mm

1 x 140mm

Right Side:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Rear:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

1 x 120mm

1 x 140mm

RADIATOR SUPPORT

Top:

1 x 120mm

1 x 140mm

Right Side(AIO):

1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

CLEARANCE

CPU cooler height limitation: 200mm

VGA length limitation:

280mm(With power cover)

380mm(Without power cover)

PSU length limitation: 220mm
