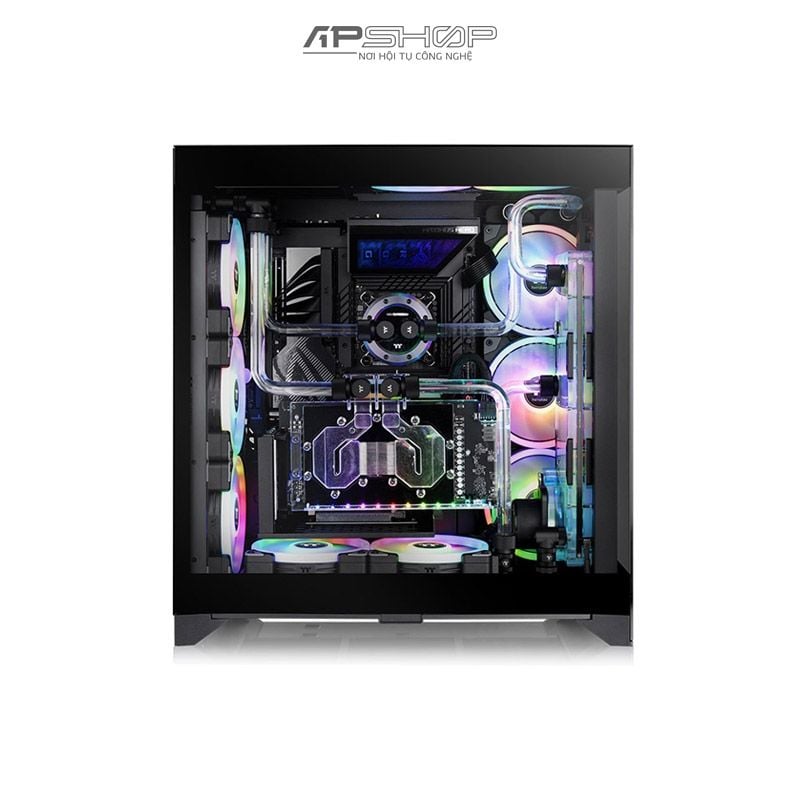

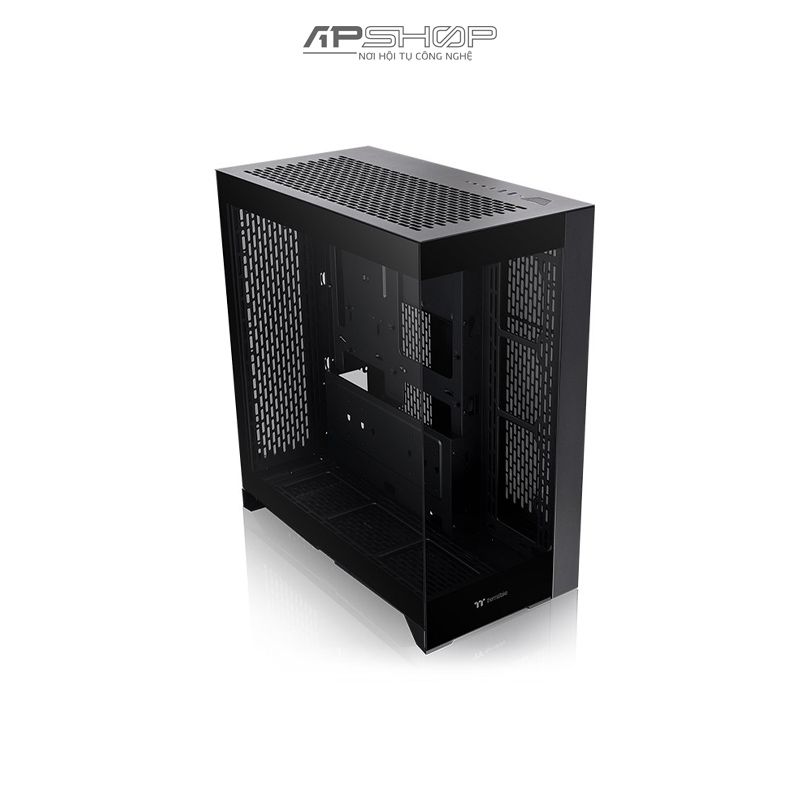

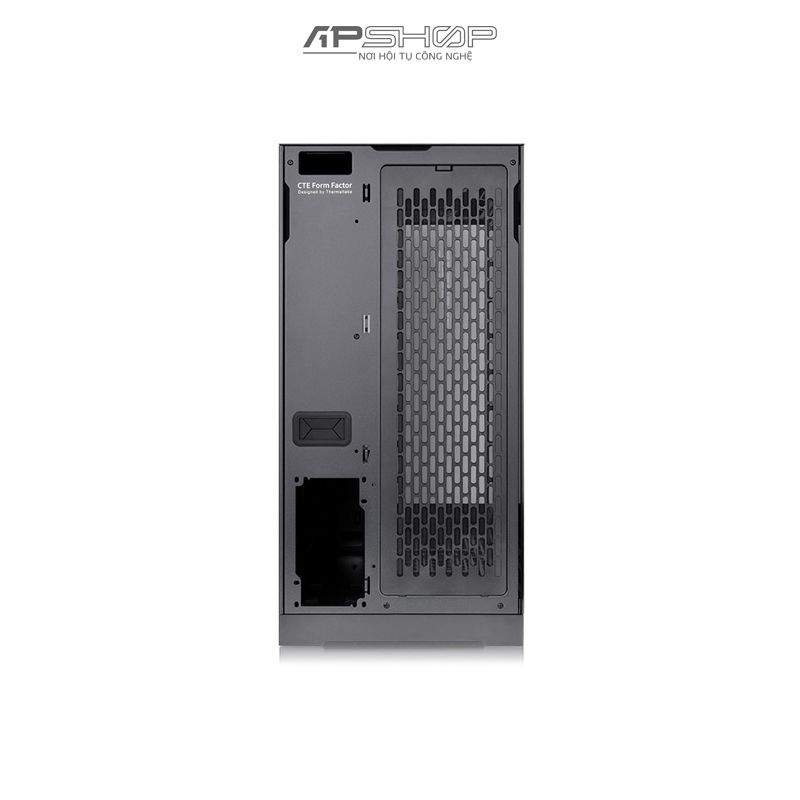

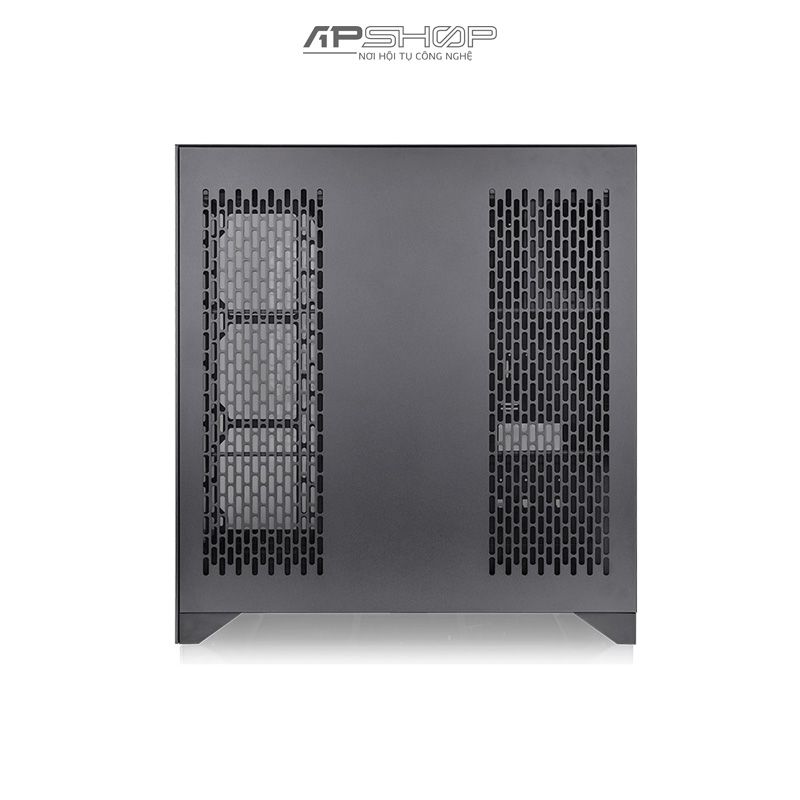

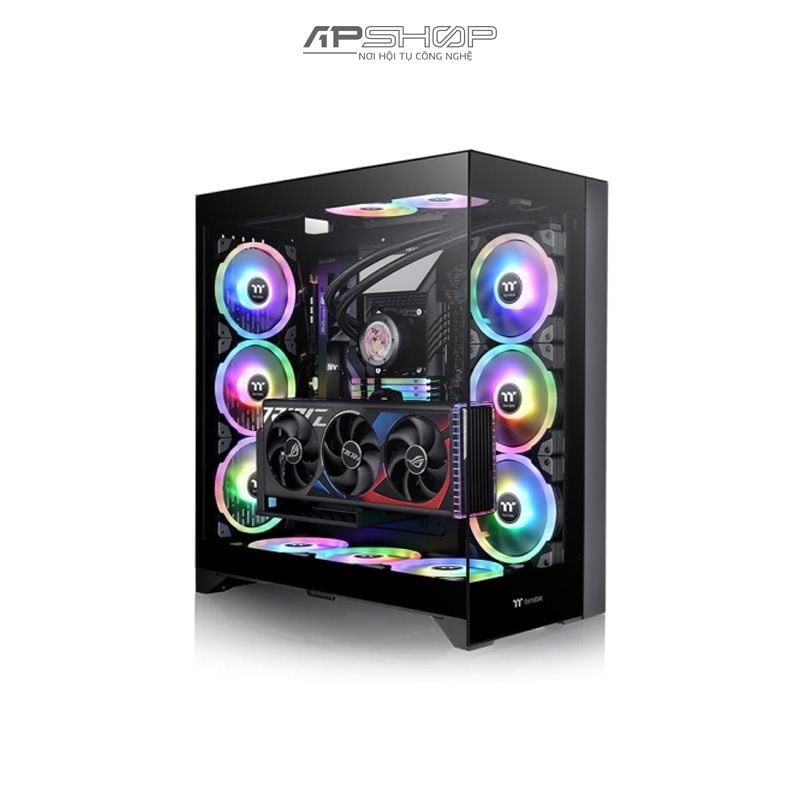

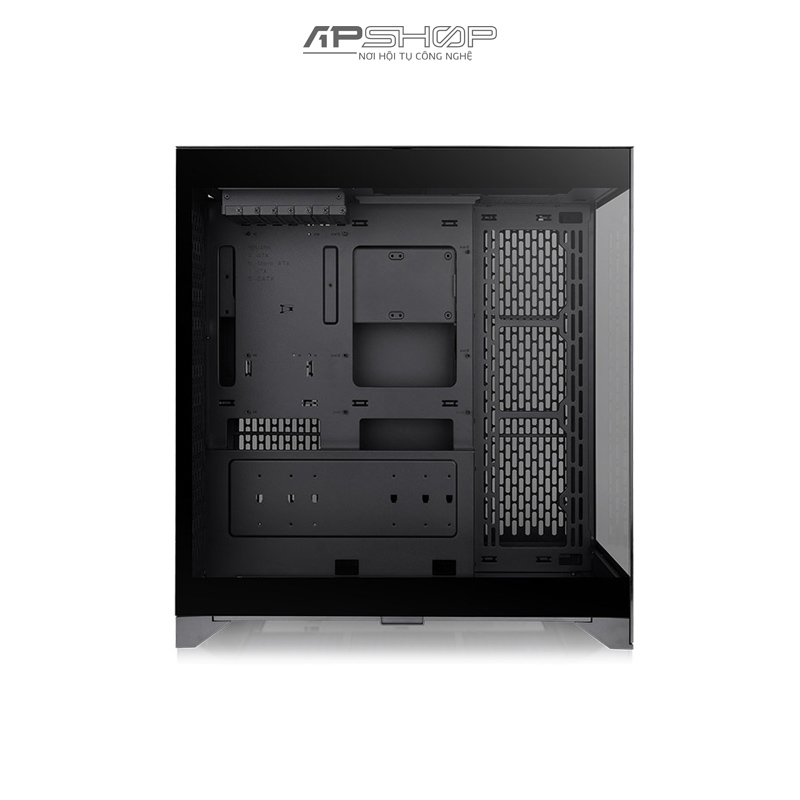

Case Thermaltake CTE E600 MX - Black

P/N: CA-1Y3-00M1WN-00

SERIES: CTE

CASE TYPE: Mid Tower

Kích thước (H X W X D): 558.5 x 270 x 513mm / (21.99 x 10.63 x 20.2 inch)

Trọng lượng: 16 kg / 35.27 lbs.

PANEL: 4mm Tempered Glass x 2

Màu sắc: Black

Chất liệu: SPCC

Khoang ổ đĩa: 2 x 3.5”, 2 x 2.5”

Khe mở rộng: 7

Bo mạch chủ: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX)

I/O PORT: USB 3.0 x 2, Type-c x1, HD Audio x 1

PSU: Standard PS2 PSU (optional)

Hỗ trợ quạt:

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Top:

2 x 120mm, 1 x 120mm

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Hỗ trợ tản nhiệt:

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Top:

1 x 240mm, 1 x 120mm

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Bottom (DIY only):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

CLEARANCE

CPU cooler max height: 166mm

VGA max length:

415mm (with radiator)

443.8mm (without radiator)

PSU max length: 220mm
