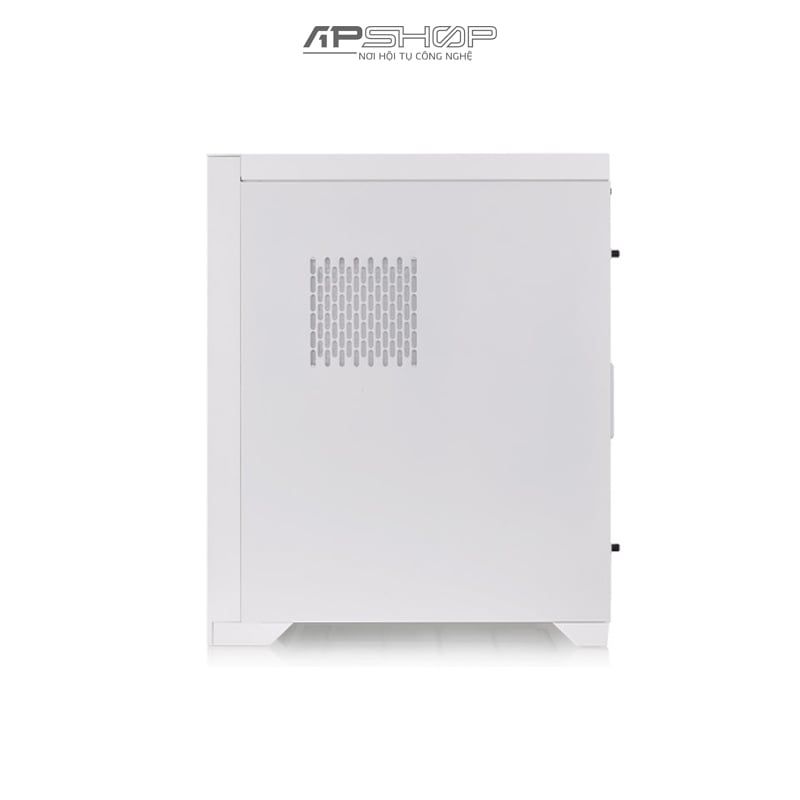

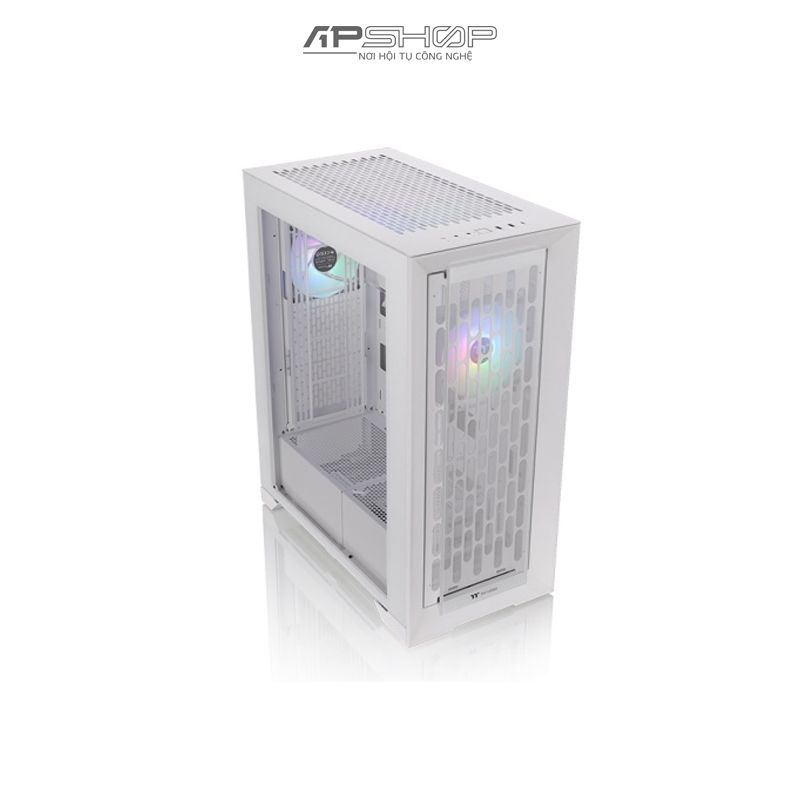

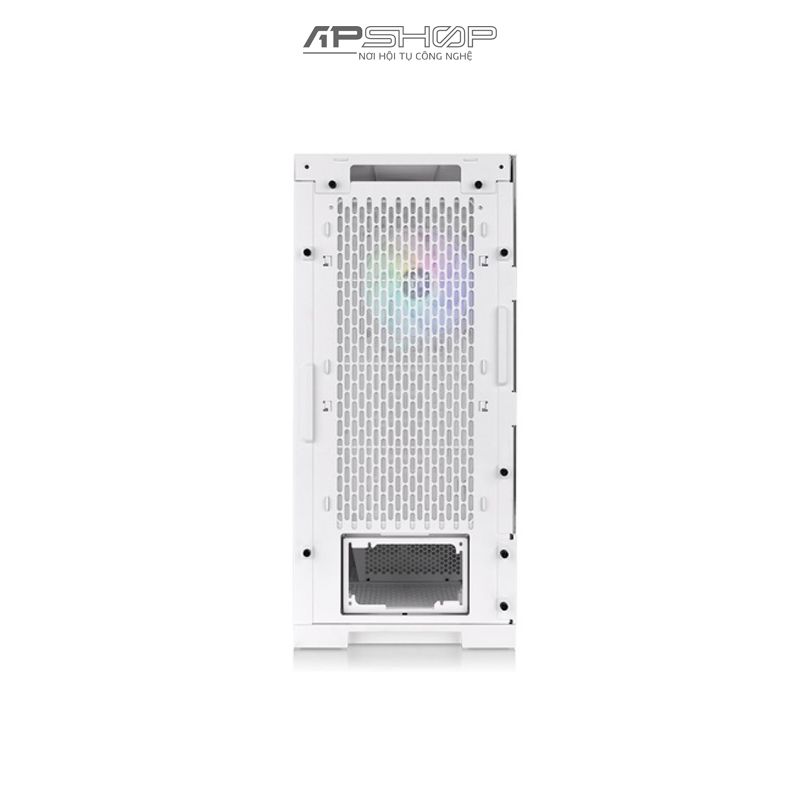

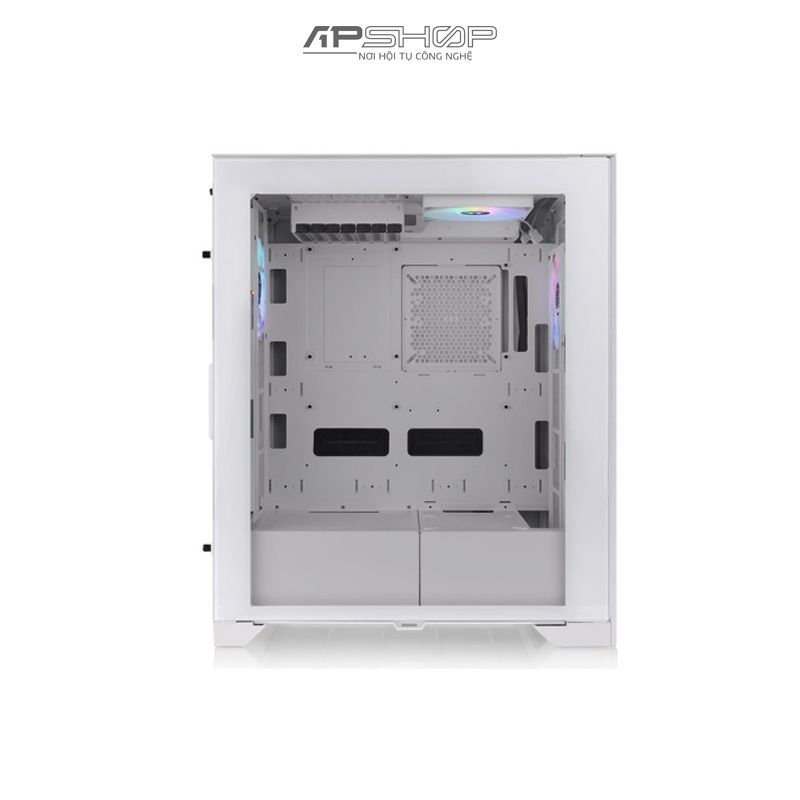

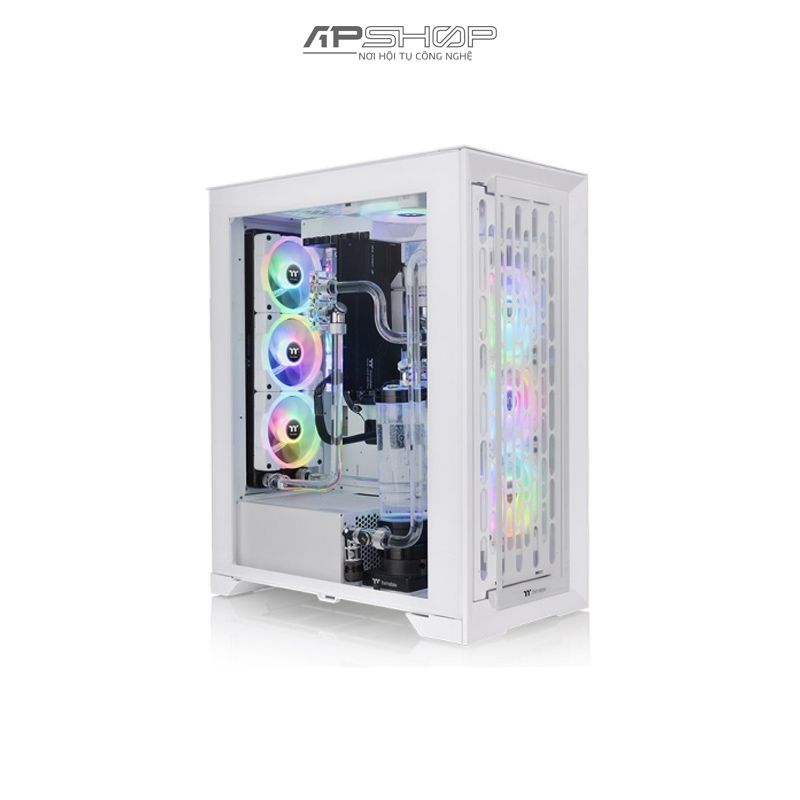

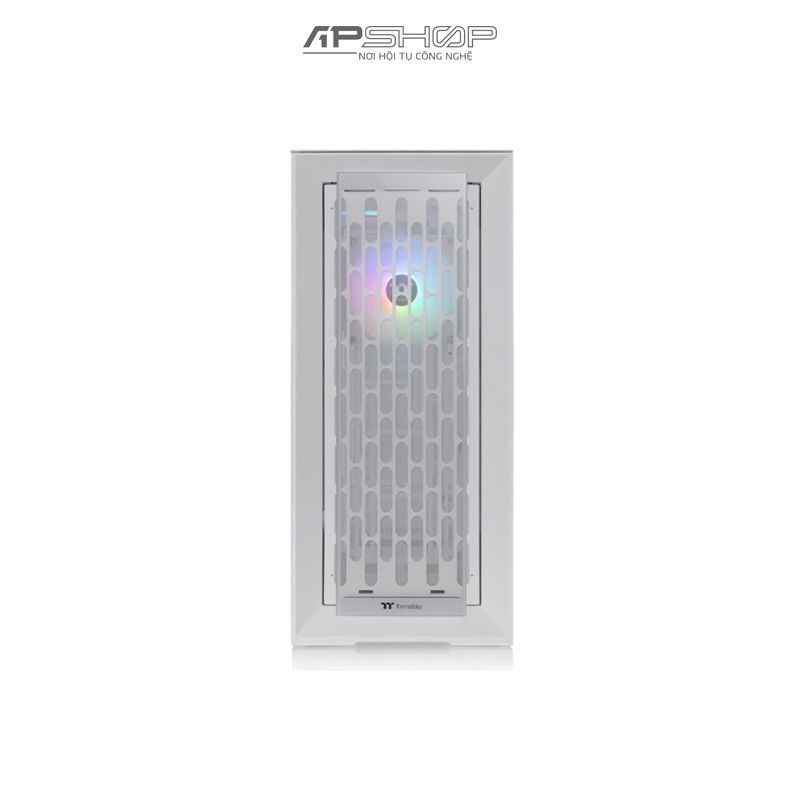

Case Thermaltake CTE T500 TG Snow

P/N: CA-1X8-00F6WN-01

SERIES: CTE

CASE TYPE: Full Tower

DIMENSION (H X W X D): 615x 275 x 516 mm / (24.21 x 10.83 x 20.31 inch)

NET WEIGHT: 15.6 kg / 34.39 lbs.

PANEL: 4mm Tempered Glass x 2

COLOR: White

MATERIAL: SPCC / ABS

Hệ thống làm mát:

Front(intake): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Top(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Rear(intake): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

DRIVE BAYS: 4 x 3.5” or 6 x 2.5”

EXPANSION SLOTS: 7

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

1 x 120mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Bottom:

1 x 120mm, 1 x 140mm

PSU Cover:

1 x 120mm, 1 x 140mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Top:

1 x 120mm(AIO only)

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

CLEARANCE

CPU cooler max height: 195mm

VGA max length: 385mm

PSU max length: 180mm
