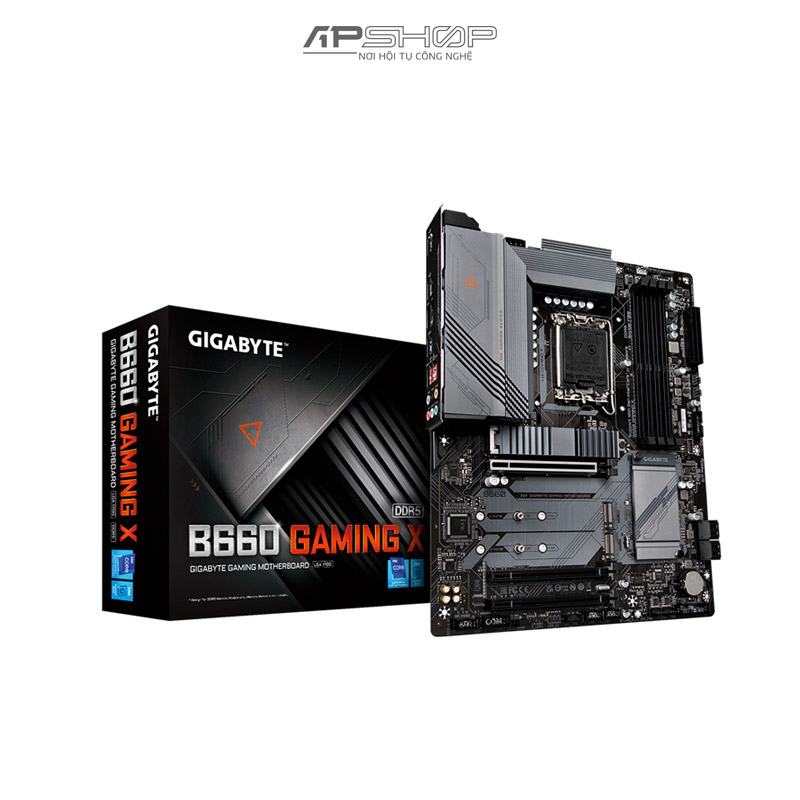

Mainboard GIGABYTE B660 GAMING X | Chính hãng

₋ Sản phẩm: Bo mạch chủ

₋ Tên Hãng: Gigabyte

₋ Tên sản phẩm: Mainboard GIGABYTE B660 GAMING X

₋ CPU hỗ trợ: Intel

₋ Chipset: B660

₋ RAM hỗ trợ: Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

₋ Khe cắm mở rộng:

   + 1 x PCI Express x16 slot, running at x16 (PCIEX16)

   + 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)

₋ Ổ cứng hỗ trợ: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

₋ Chipset:

   + 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

   + 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)

   + 4 x SATA 6Gb/s connectors

   + Support for RAID 0, RAID 1, RAID 5, and RAID 10

₋ Cổng kết nối (Internal)

   + 1 x 24-pin ATX main power connector

   + 1 x 8-pin ATX 12V power connector

₋ 1 x CPU fan header

₋ 1 x water cooling CPU fan header

₋ 3 x system fan headers

₋ 1 x system fan/water cooling pump header

₋ 2 x addressable LED strip headers

₋ 2 x RGB LED strip headers

₋ 3 x M.2 Socket 3 connectors

₋ 4 x SATA 6Gb/s connectors

₋ 1 x front panel header

₋ 1 x front panel audio header

₋ 1 x USB Type-C® header, with USB 3.2 Gen 2 support

₋ 1 x USB 3.2 Gen 1 header

₋ 2 x USB 2.0/1.1 headers

₋ 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

₋ 1 x serial port header

₋ 1 x Q-Flash Plus button

₋ 1 x reset button

₋ 1 x reset jumper

₋ 1 x Clear CMOS jumper

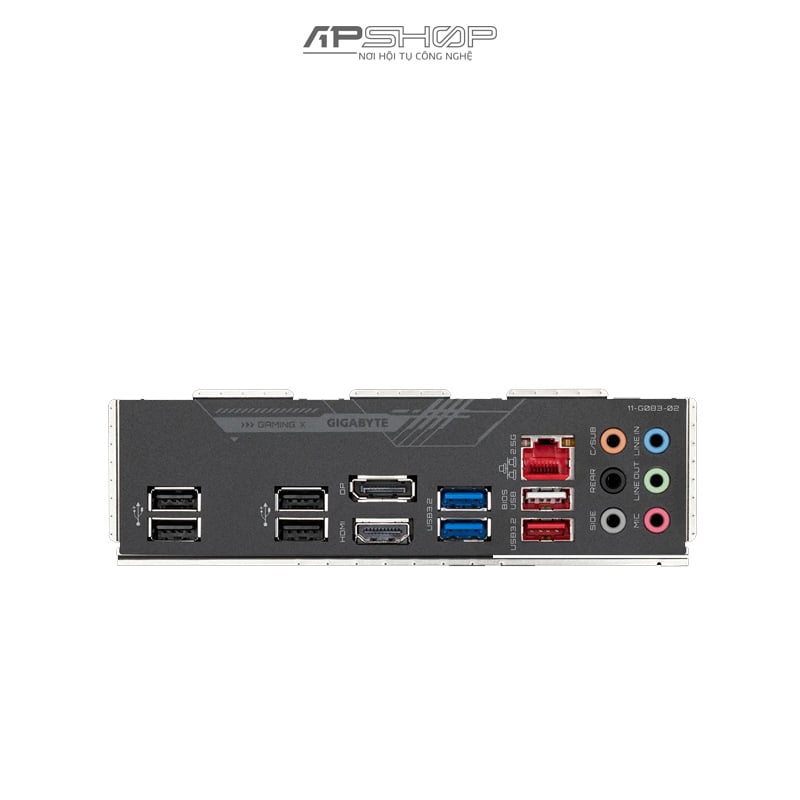

₋ Cổng kết nối (Back Panel)

₋ 1 x USB 3.2 Gen 2 Type-A port (red)

₋ 2 x USB 3.2 Gen 1 ports

₋ 5 x USB 2.0/1.1 ports

₋ 1 x DisplayPort

₋ 1 x HDMI 2.0 port

₋ 1 x RJ-45 port

₋ 6 x audio jacks

₋ LAN / Wireless

₋ Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

₋ Kích cỡ

₋ ATX Form Factor; 30.5cm x 24.4cm
