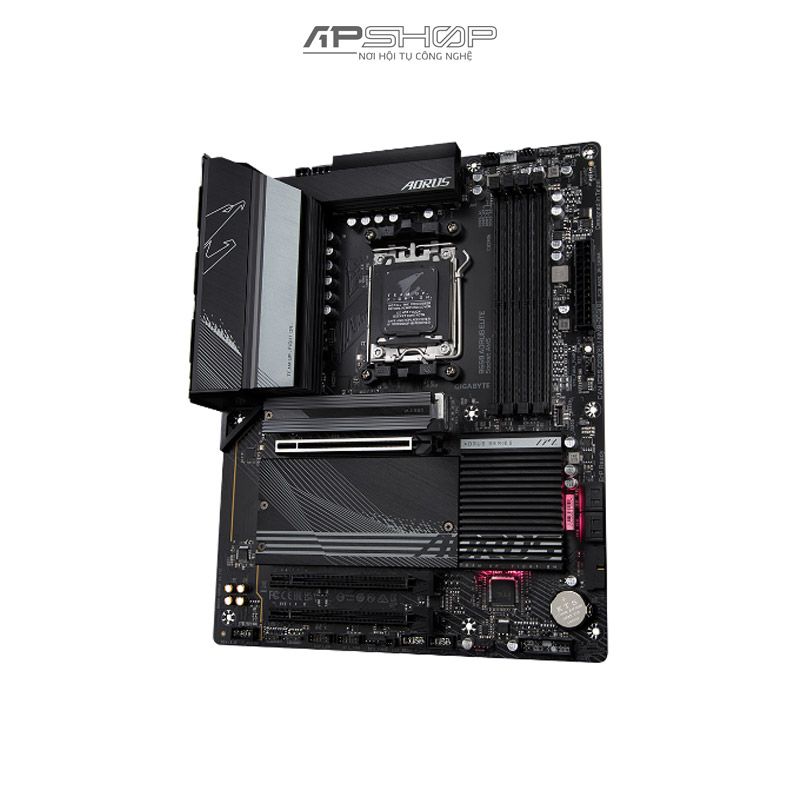

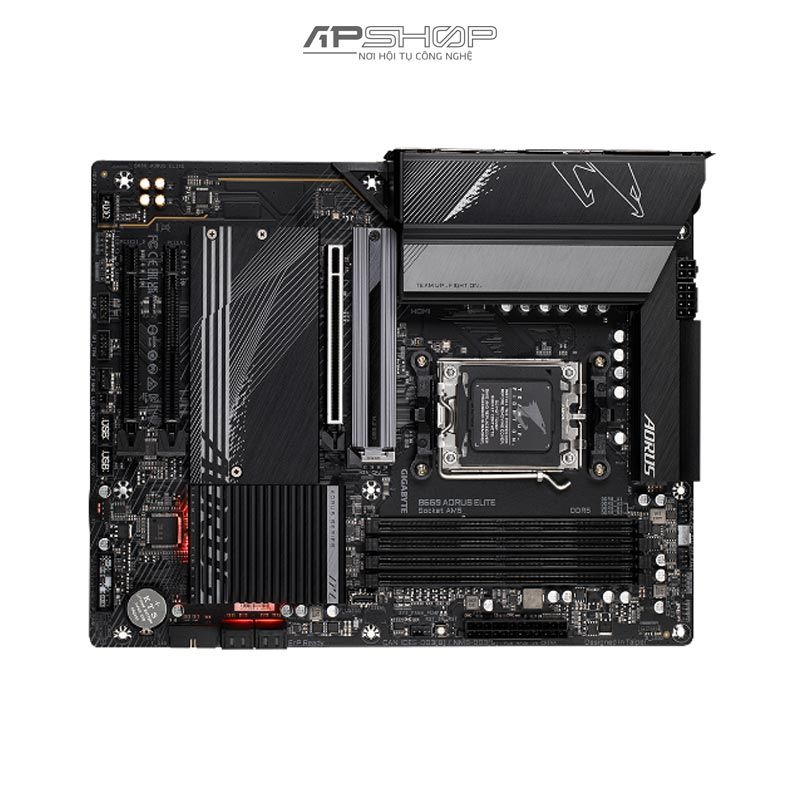

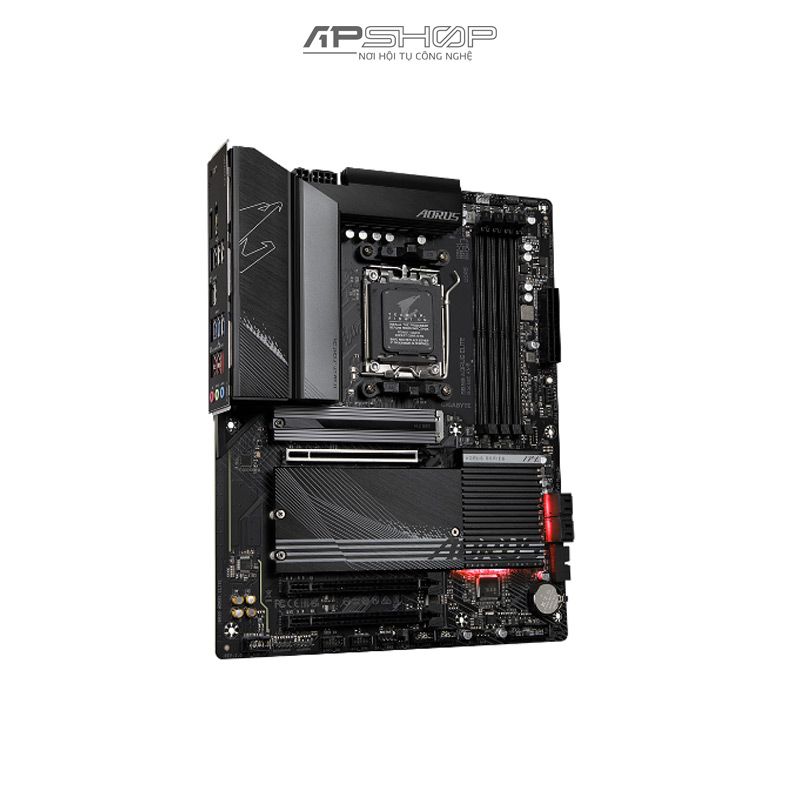

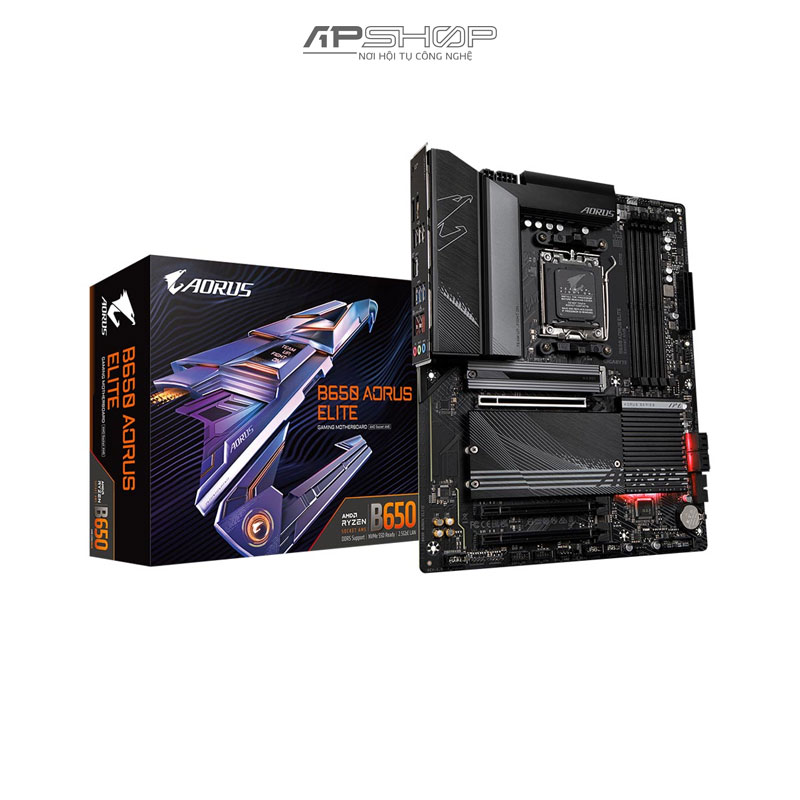

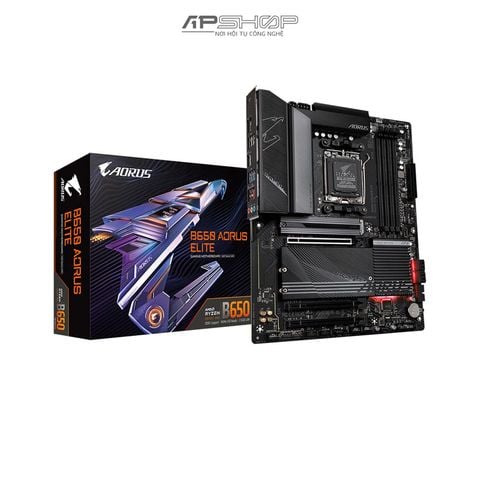

Mainboard GIGABYTE B650 AORUS ELITE | Chính hãng

CPU:

AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer "CPU Support List" for more information.)

Chipset: AMD B650

Bộ nhớ:

Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Card đồ họa tích hợp:

Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Âm thanh:

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Khe cắm mở rộng:

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Giao diện lưu trữ:

CPU:

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)

* Actual support may vary by CPU.

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Kết nối I/O bên trong:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

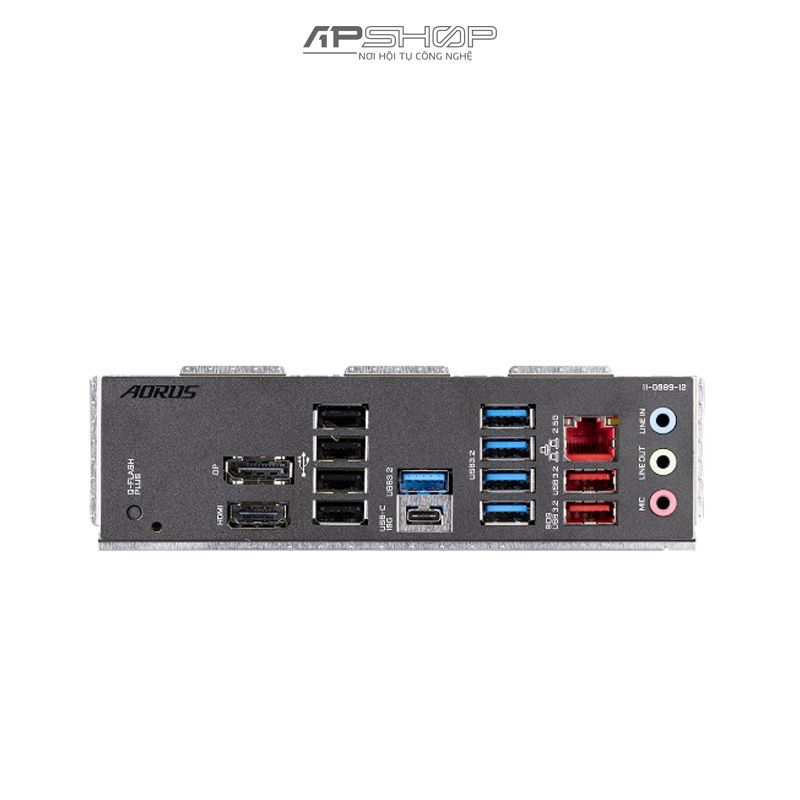

Kết nối bảng phía sau:

1 x Q-Flash Plus button

1 x DisplayPort

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

5 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Điều khiển I/O:

iTE® I/O Controller Chip

Theo dõi phần cứng

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất:

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Gói phần mềm:

Norton® Internet Security (OEM version)

LAN bandwidth management software

Hệ điều hành:

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form factor:

ATX Form Factor; 30.5cm x 24.4cm
