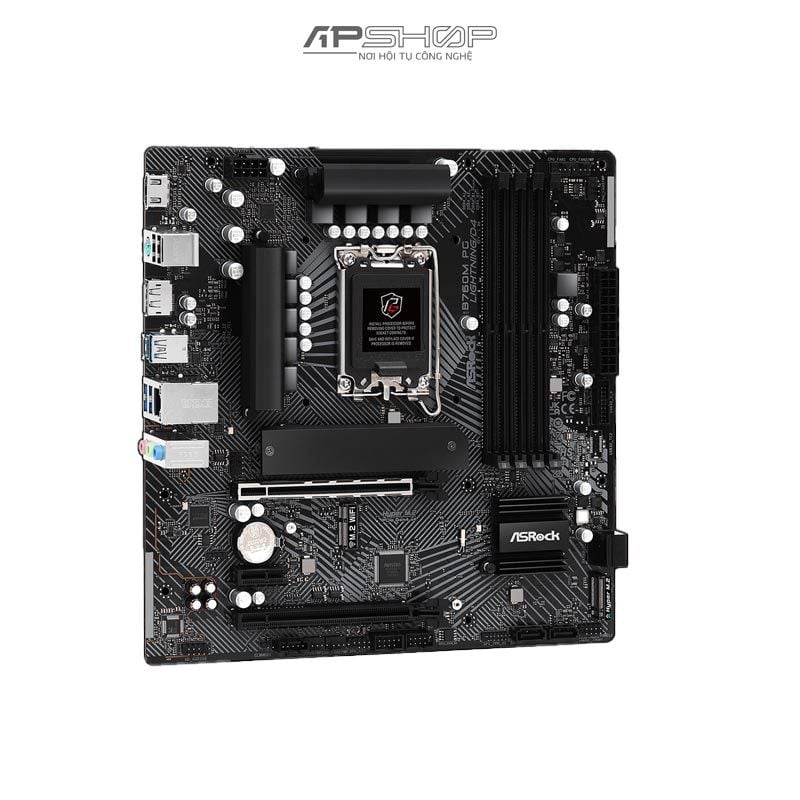

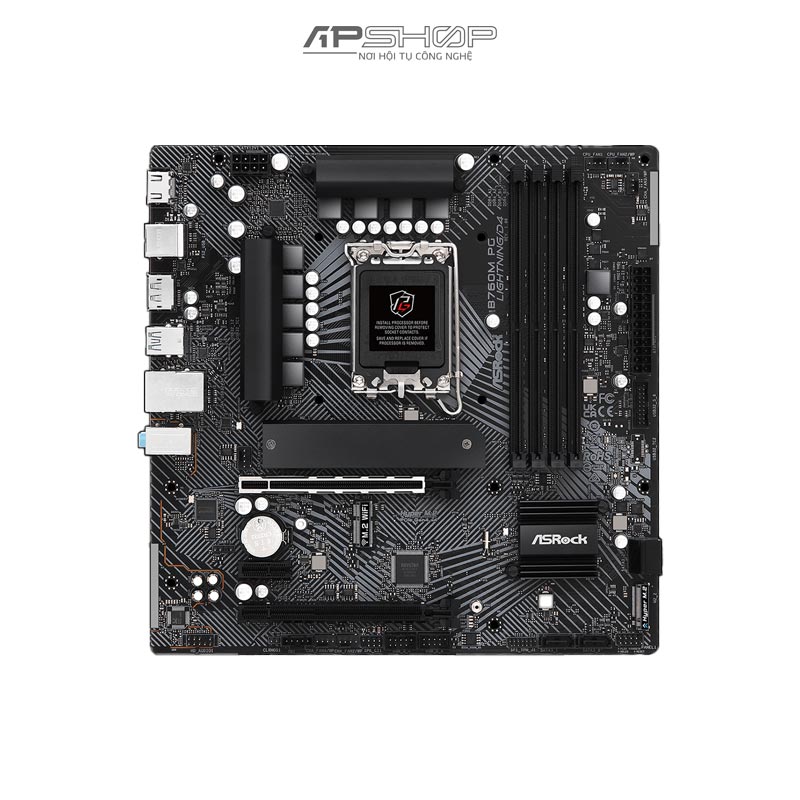

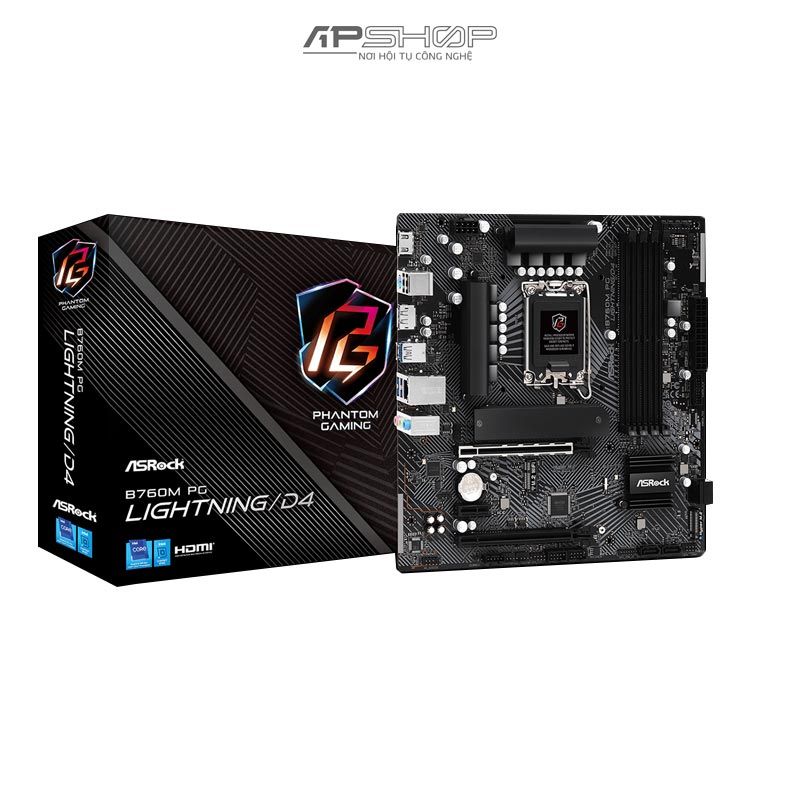

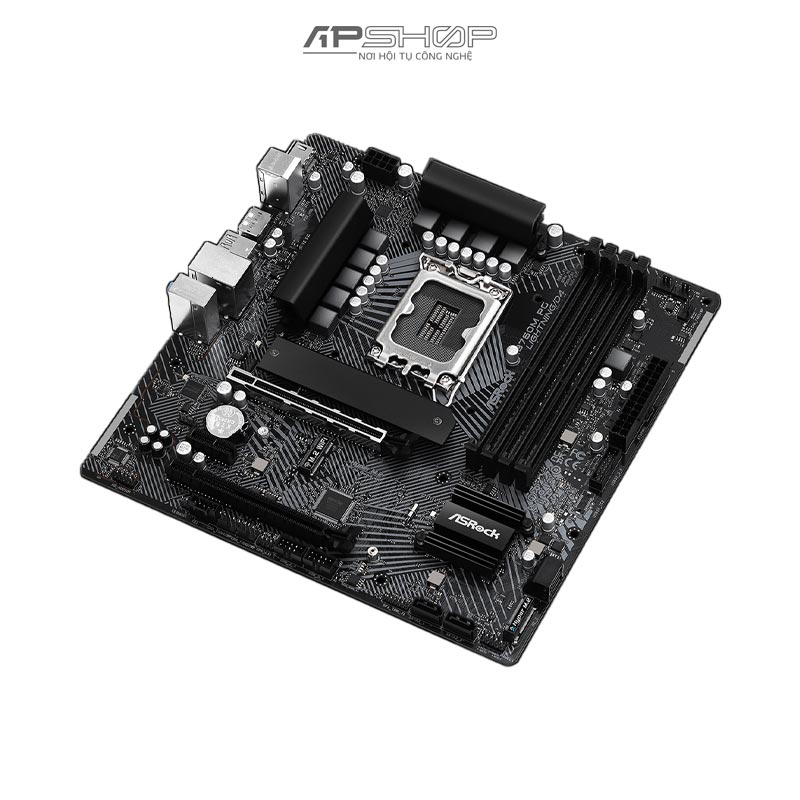

Mainboard ASrock B760M PG Lightning/D4 | Chính hãng

Unique Feature:

Rock-Solid Durability

- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT

- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

EZ Update

- ASRock Auto Driver Installer

EZ Troubleshooter

- ASRock Post Status Checker

CPU

- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

- Supports Intel® Thermal Velocity Boost (TVB)

- Supports Intel® Adaptive Boost Technology (ABT)

Chipset

- Intel® B760

Bộ nhớ RAM

- Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.

1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.

2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.

2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Card đồ họa

- Intel® Xe Graphics Architecture (Gen 12)

- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Card âm thanh

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Nahimic Audio

LAN

- Gigabit LAN 10/100/1000 Mb/s

- Realtek 8111H

Khe cắm

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 4.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

- Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

- 1 x USB 3.2 Gen1 Type-C (Rear)

- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

- 6 x USB 2.0 (2 Rear, 4 Front)

Phụ kiện

- 1 x User Manual

- 1 x I/O Shield

- 2 x SATA Data Cables

- 3 x Screws for M.2 Sockets

- 1 x Standoff for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Hệ điều hành

- Microsoft® Windows® 10 64-bit / 11 64-bit

Chứng nhận

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
