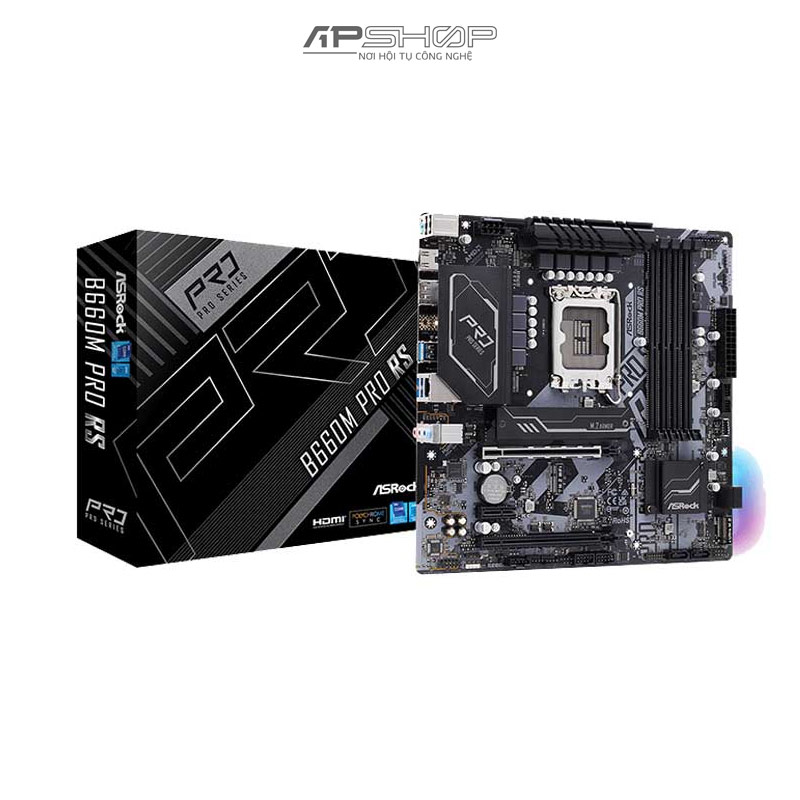

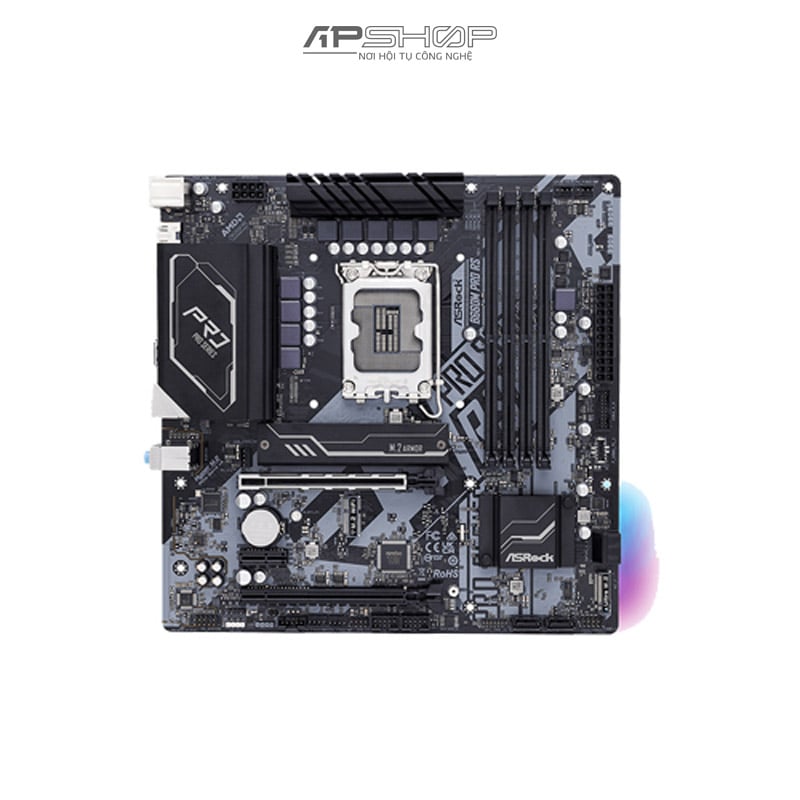

Mainboard Asrock B660M Pro RS/ax | Chính hãng

- Tên Hãng: Asrock

- Model: Asrock B660M Pro RS/ax

- CPU hỗ trợ: Intel

- Chipset: B660

- RAM hỗ trợ: 4 x DDR4 DIMM Slots hỗ trợ tối đa 128GB

- Khe cắm mở rộng

   + 1 x PCIe 4.0 x16 Slot,

   + 1 x PCIe 3.0 x16 Slot (supports x4 mode)

   + 1 x PCIe 3.0 x1 Slot

   + 1 x M.2 Socket (Key E)

- Ổ cứng hỗ trợ

   + 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

   + 4 x SATA3 6.0 Gb/s Connectors

- Cổng kết nối (Internal)

   + 1 x SPI TPM Header

   + 1 x Chassis Intrusion and Speaker Header

   + 1 x RGB LED Header*

   + 3 x Addressable LED Headers**

   + 1 x CPU Fan Connector (4-pin)***

   + 1 x CPU/Water Pump Fan Connector (4-pin)

   + 3 x Chassis/Water Pump Fan Connectors (4-pin)

   + 1 x 24 pin ATX Power Connector

   + 1 x 8 pin 12V Power Connector

   + 1 x Front Panel Audio Connector

   + 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

   + 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

   + 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

   + 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

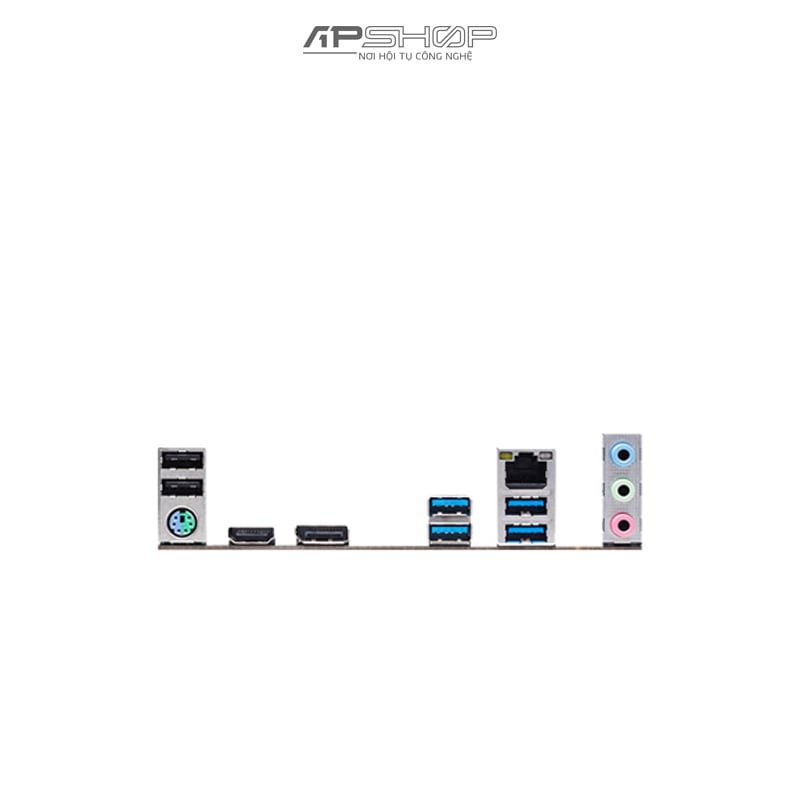

- Cổng kết nối (Back Panel)

   + 2 x Antenna Ports

   + 1 x PS/2 Mouse/Keyboard Port

   + 1 x HDMI Port

   + 1 x DisplayPort 1.4

   + 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

   + 2 x USB 2.0 Ports (Supports ESD Protection)

   + 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

- LAN / Wireless:

   + 802.11ax Wi-Fi 6E Module

   + Gigabit LAN 10/100/1000 Mb/s

- Kích cỡ

   + 24.4 cm x 24.4 cm

   + m-ATX Form Factor
