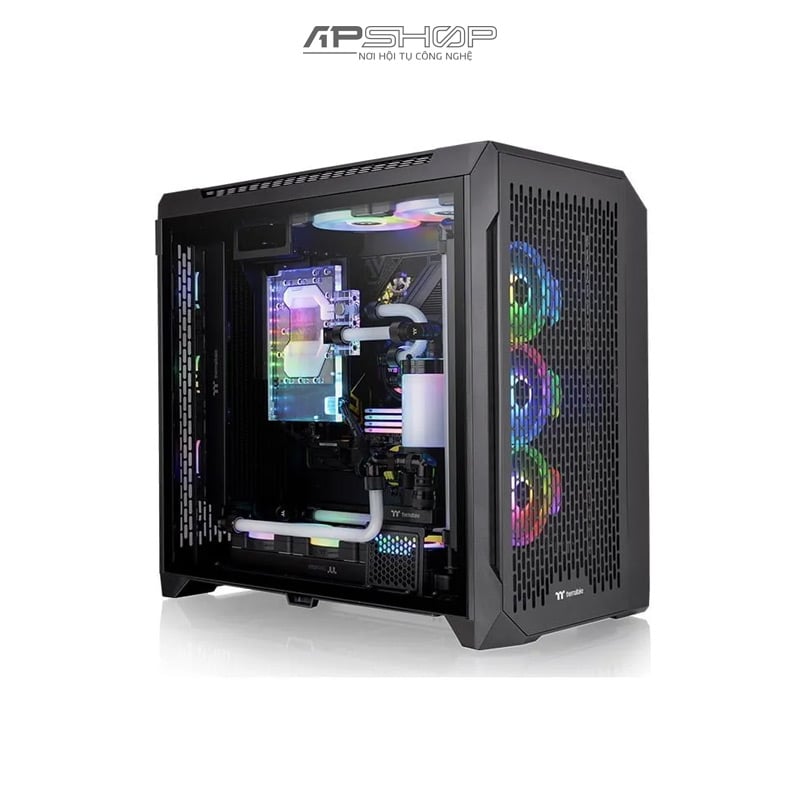

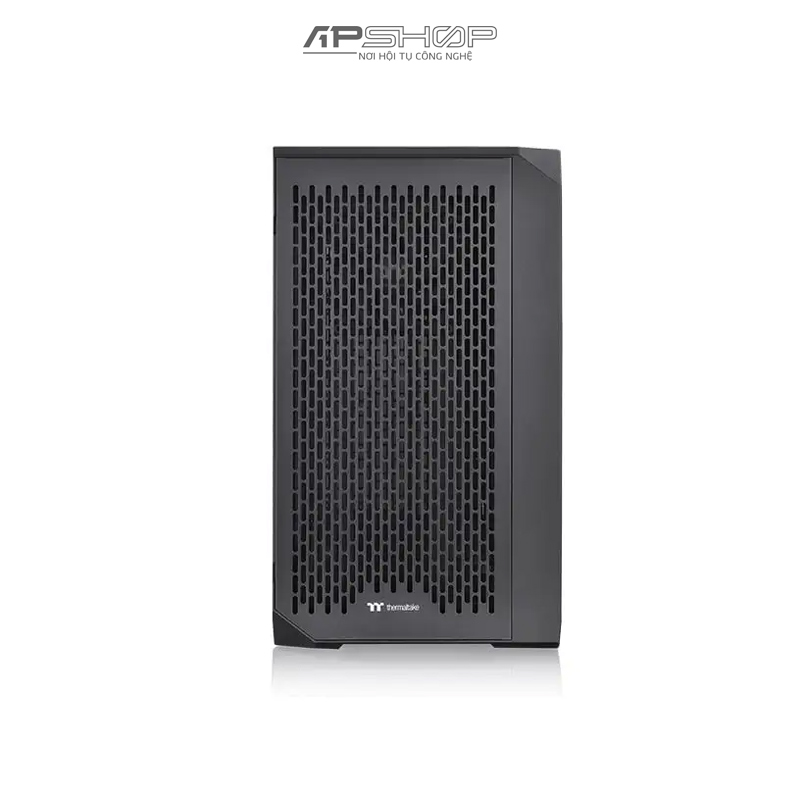

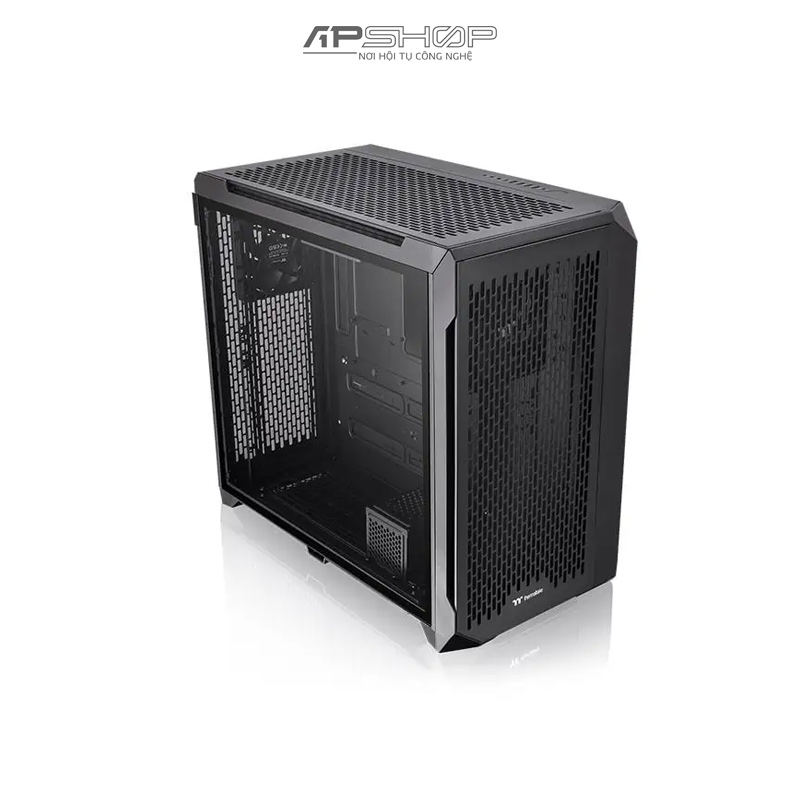

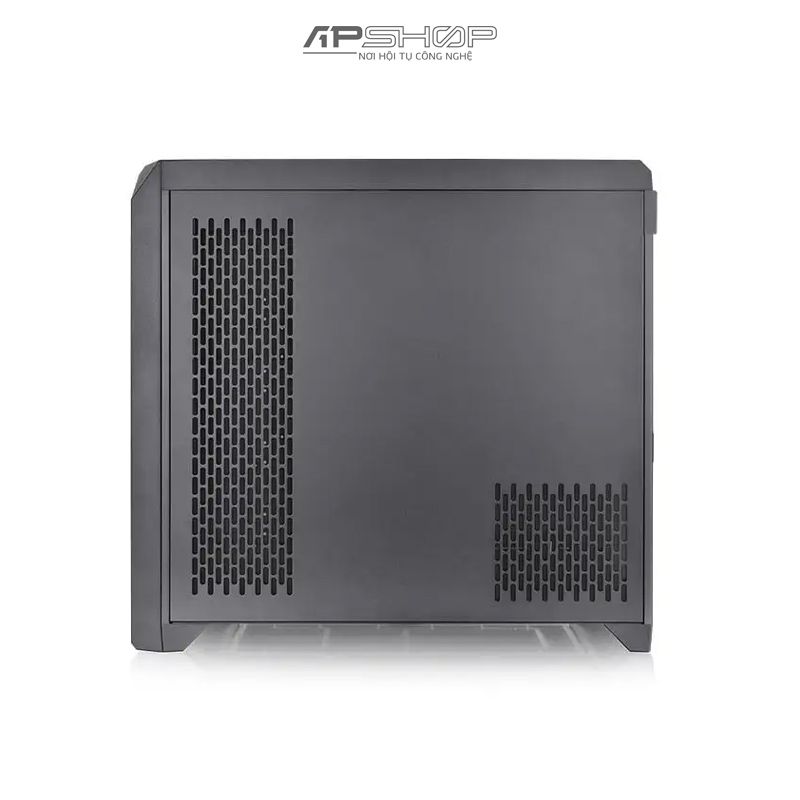

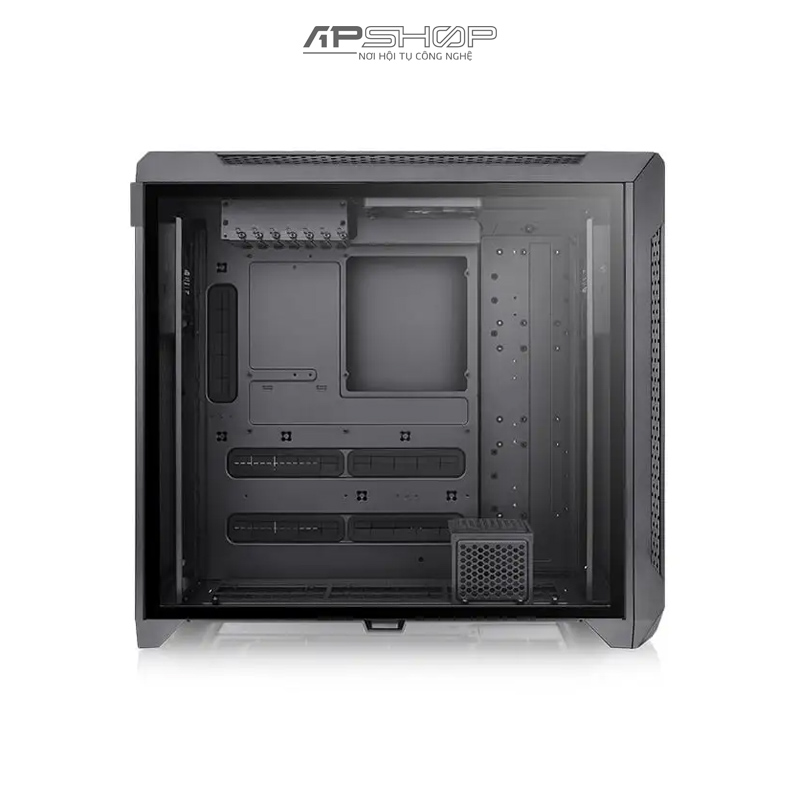

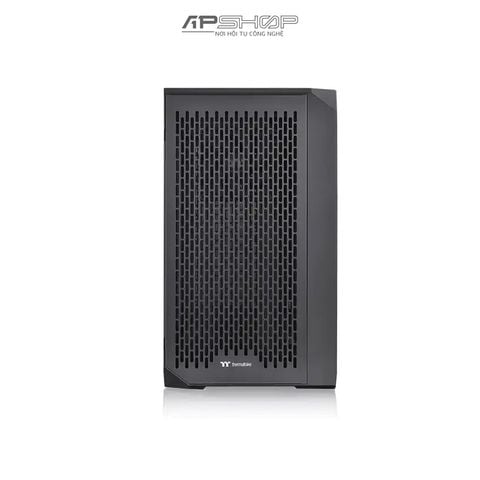

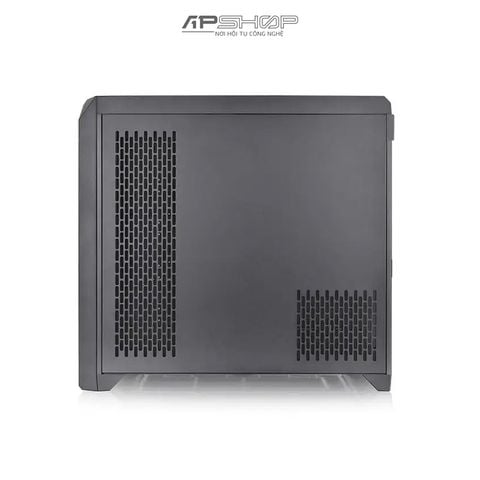

Case Thermaltake CTE C750 Air Black | E-ATX

P/N: CA-1X6-00F1WN-00

SERIES: CTE

Loại case: Full Tower

Kích thước (H X W X D): 565.2 x 327 x 599.2 mm / (22.25 x 12.87 x 23.59 inch)

Trọng lượng: 16.7 kg / 36.82 lbs.

PANEL: 4mm Tempered Glass x 1

Màu sắc: Black

Chất liệu: SPCC / ABS

Hệ thống làm mát:

Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

Khoang ổ đĩa: 7 x 3.5” or 12 x 2.5”

Khe mở rộng:  7

Bo mạch chủ:  6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

PSU: Standard PS2 PSU (optional)

Hỗ trợ FAN:

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Top:

1 x 240mm, 1 x 120mm

1 x 140mm

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Bottom:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

CLEARANCE

CPU cooler max height: 190mm

VGA max length:

370mm (With radiator)

420mm (Without radiator)

PSU max length: 220mm
