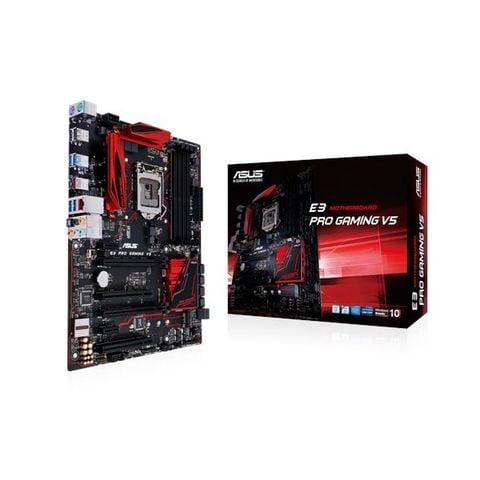

Mainboard ASUS C232 E3 PRO GAMING V5
- Thương hiệu: ASUS
- SKU: E3 PRO GAMING V5
Quà tặng và ưu đãi kèm theo
Đăng ký nhận thông báo khi có hàng
Bạn đang phân vân về sản phẩm Mainboard Asus
- CHI TIẾT SẢN PHẨM
- Chính sách trả góp
Thông Tin Chi Tiết :
- CPUIntel® Socket 1151 for Xeon® E3-1200 v6/v5 and 7th/6th genereation CoreTM, Pentium® and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - ChipsetIntel® C232
- Memory4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by Intel® E3-1200 v6 and 7th Generation processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on Intel® E3-1200 v5 and 6th Generation processors will run at the maximum transfer rate of DDR4 2133MHz. - Multi-GPU SupportSupports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology - Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 mode, )
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
2 x PCIe 3.0/2.0 x1
2 x PCI - StorageIntel® C232 chipset :
1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Enterprise supports*3 - LANIntel® I219LM, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard - AudioSupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II - USB PortsASMedia® USB 3.1 controller :
1 x USB 3.1 port(s) (Type-A)
ASMedia® USB 3.1 controller :
1 x USB 3.1 port(s) (Type-C, Reversible)
Intel® C232 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® C232 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) - Special FeaturesGamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache - Operating System SupportWindows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit *4 - Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x USB 3.1 (red)Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s) - Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s) - AccessoriesUser's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x 12 in 1 Cable Label (s) - BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information - ManageabilityWfM 2.0, DMI 3.0, WOL by PME, PXE
- Support DiscDrivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version) - Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Note*1: When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled.
*2: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
*3: Before creating RAID on Windows 7, we recommend that you install Windows 7 first via ASUS EZ Installer.
*4: Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.
