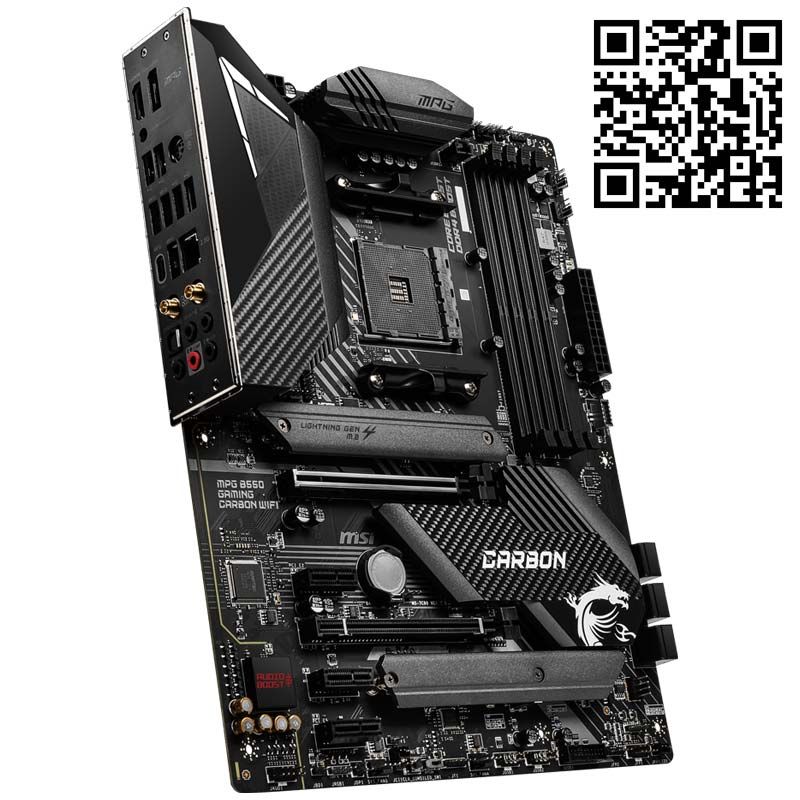

THÔNG SỐ KỸ THUẬT

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

CHIPSET: AMD B550 Chipset

BỘ NHỚ:

• 4x DDR4 memory slots, support up to 128GB
• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE

+ 1DPC 1R max speed 5100 MHZ

+ 1DPC 2R max speed 3866 MHZ

+ 2DPC 1R max speed 4000 MHZ

+ 2DPC 2R max speed 3600 MHZ

• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

KHE CẮM MỞ RỘNG:

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
• 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
• 3x PCIe 3.0 x1 slots

ĐỒ HỌA ONBOARD

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
• Maximum shared memory of 2048 MB

MULTI-GPU: Supports 2-Way AMD CrossFire™ Technology

LƯU TRỮ: Chipset AMD B550

• 6x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
• M2_1 slot (from AMD Processor)

+ Supports PCIe 4.0/ 3.0 x4 1

+ Supports SATA 6Gb/s

+ Supports 2242/ 2260/ 2280/ 22110 storage devices

• M2_2 slot (from AMD B550 chipset)

+ Supports PCIe 3.0x4

+ Supports 2242/ 2260/ 2280 storage devices

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB: Chipset AMD B550

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Bộ xử lý AMD

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO: Realtek® ALC1200 Codec

• 1-Channel High Definition Audio
• Supports S/PDIF output

LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6 AX200

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.1

KẾT NỐI NỘI BỘ

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1x RGB CORSAIR connector
• 1x TPM module connector
• 1x Clear CMOS jumper

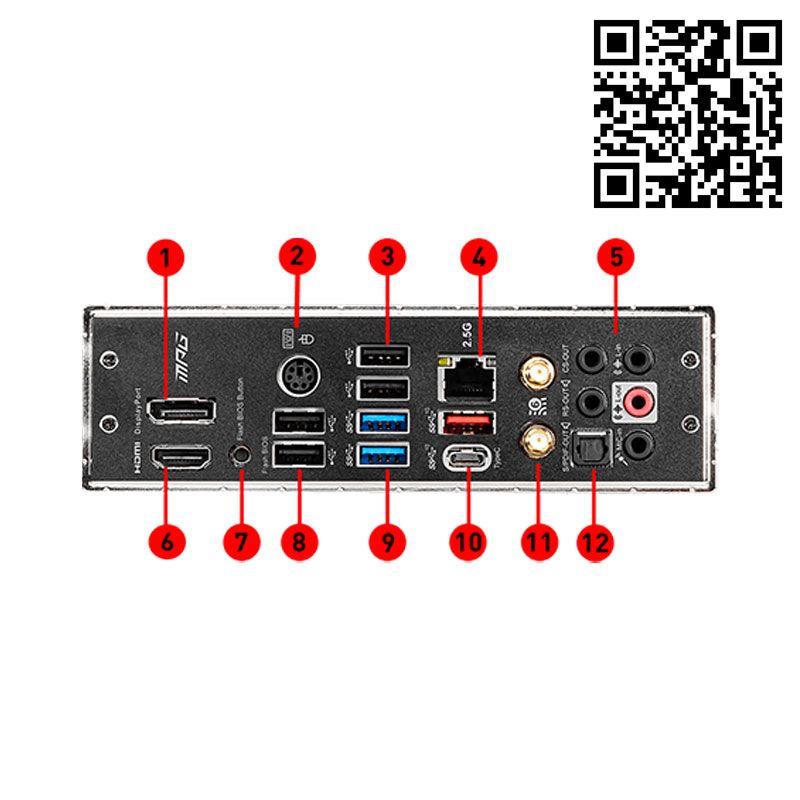

CỔNG KẾT NỐI PHÍA SAU

1. DisplayPort
2. PS/2 Combo Port
3. USB 2.0
4. 5G LAN
5. HD Audio Connectors
6. HDMI
7. Flash BIOS Button
8. USB 2.0
9. USB 3.2 Gen 1 5Gbps (Type-A)
10. USB 3.2 Gen 2 10Gbps (Type-A+C)
11. Wi-Fi / Bluetooth
12. Optical S/PDIF OUT

TÍNH NĂNG LED

• 1x EZ LED Control switch
• 4x EZ Debug LED

BỘ ĐIỀU KHIỂN I/O : NUVOTON NCT6687-R Controller Chip

MÀN HÌNH PHẦN CỨNG:

• CPU/ System/ Chipset temperature detection
• CPU/ System/ Pump fan speed detection
• CPU/ System/ Pump fan speed control

FORM FACTOR

• ATX Form Factor
• 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
