Mainboard Gigabyte Z890I AORUS ULTRA
100% Chính Hãng
Bảo hành
Giao 1H Nội Thành
Ship COD Toàn Quốc
Cài Đặt Miễn Phí
Trả Góp 0%
THƯỜNG ĐƯỢC MUA CÙNG
Hỗ trợ bộ xử lý Intel® Core™ Ultra (Series 2)
Giải pháp VRM kỹ thuật số 8+1+2 pha
D5 Bionic Corsa cho hiệu năng bộ nhớ vô hạn
AI Perfdrive: Cung cấp cấu hình BIOS cài đặt sẵn tối ưu và tùy chỉnh cho người dùng
Khả năng tương thích cao cấp: 2*DDR5 với hỗ trợ mô-đun bộ nhớ XMP
WIFI EZ-Plug: Thiết kế nhanh chóng và dễ dàng để lắp đặt ăng-ten Wi-Fi
EZ-Latch Plus: Khe cắm PCIe và M.2 với thiết kế tháo lắp nhanh và không cần vít
EZ-Latch Click: Tản nhiệt M.2 với thiết kế không cần vít
Giao diện người dùng thân thiện: Đa chủ đề, điều khiển quạt AIO và quét tự động Q-Flash trong BIOS và phần mềm
Trình giám sát nguồn mới trong HWinfo để giám sát thời gian thực các pha nguồn CPU
Lưu trữ cực nhanh: 2 khe cắm M.2, bao gồm 1 khe PCIe 5.0 x4
Tản nhiệt hiệu quả: VRM Thermal Armor Advanced với I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext.

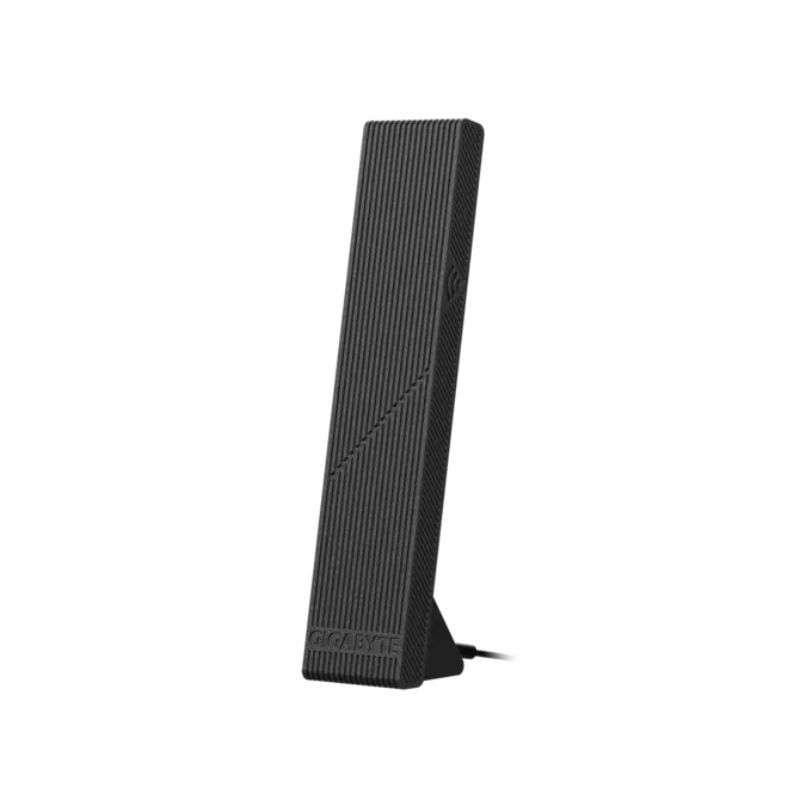

Kết nối mạng tốc độ cao: LAN 2.5GbE & Wi-Fi 7 với ăng-ten định hướng độ lợi cực cao
Kết nối mở rộng: THUNDERBOLT™ 4 Type-C với DP-Alt, HDMI, DisplayPort
Khe cắm PCIe UD X: Khe cắm PCIe 5.0 x16 với độ mạnh gấp 10 lần dành cho card đồ họa
Mainboard Gigabyte Z890I AORUS ULTRA
| Tiêu đề | Mainboard Gigabyte Z890I AORUS ULTRA |
|
CPU |
LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to "CPU Support List" for more information. | |
|
Chipset |
Intel® Z890 Express Chipset |
|
Bộ nhớ |
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
|
Card đồ họa tích hợp |
Integrated Graphics Processor-Intel® HD Graphics support: |
| - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs | |
| When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). | |
| When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6,"Back Panel Connectors," for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to triple-display at the same time | |
|
Âm thanh |
Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Intel® Wi-Fi 7 BE202 (BE200NGW M) |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
|
Khe cắm mở rộng |
|
|
CPU: |
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
|
Giao diện lưu trữ |
|
|
CPU: |
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: | |
| - 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| - 2 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0 and RAID 1 support for SATA storage devices | |
|
USB |
|
|
CPU: |
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel |
| *Support up to 40Gbps with Thunderbolt devices | |
| *Support up to 20Gbps with USB4 devices | |
| *Support up to 10Gbps with USB 3.2 devices | |
| Chipset: | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| - 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Chipset+USB 3.2 Gen 1 Hub: | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
Kết nối I/O bên trong |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan header | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 2 x M.2 Socket 3 connectors | |
| 2 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x speaker header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
|

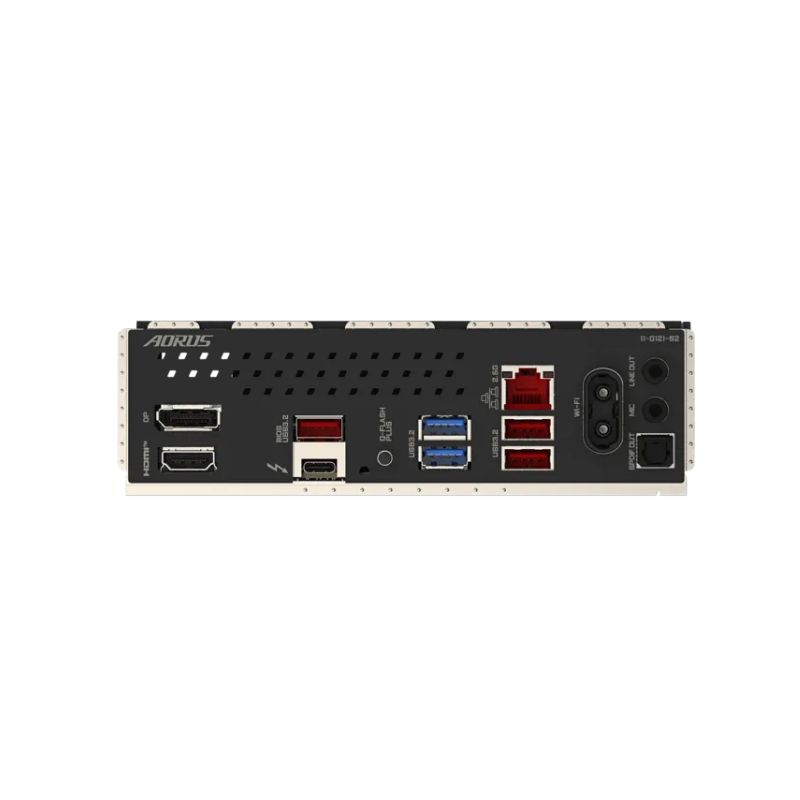

Kết nối bảng phía sau |
1 x DisplayPort (Note) |
| 1 x HDMI port (Note) | |
| 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) | |
| 3 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| (Note) Actual support may vary by CPU. | |
|
Điều khiển I/O |
iTE® I/O Controller Chip |
|
Theo dõi phần cứng |
Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. | |
|
BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Tính năng duy nhất |
Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
|
Gói phần mềm |
Norton® Internet Security (OEM version) |
|
Hệ điều hành |
LAN bandwidth management software |
|
Hệ số khuôn |
Support for Windows 11 64-bit |
|
Mini-ITX Form Factor; 17.0cm x 17.0cm |
