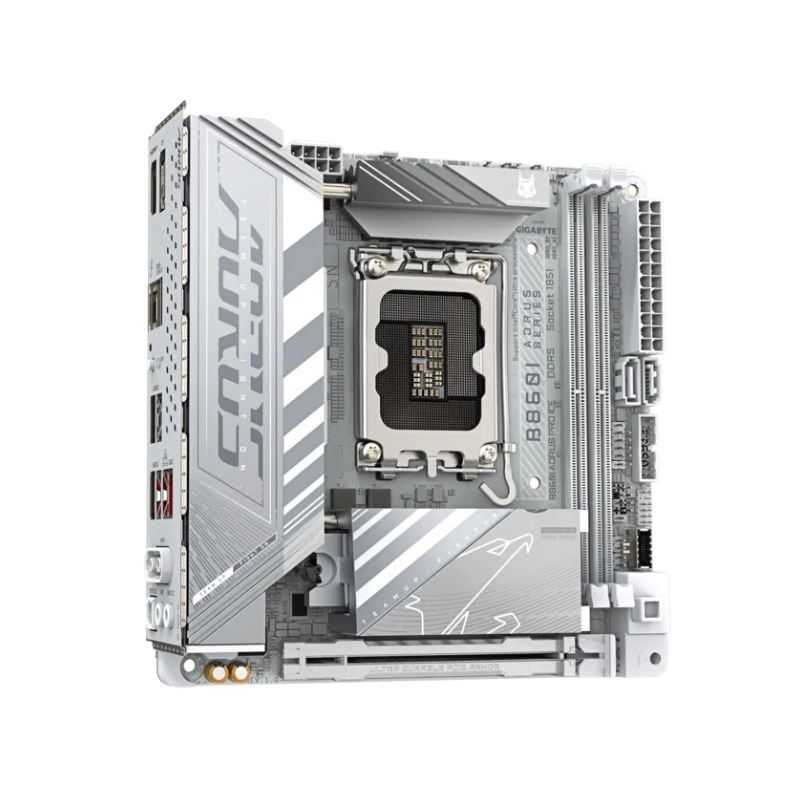

Mainboard Gigabyte B860I AORUS PRO ICE
100% Chính Hãng
Bảo hành
Giao 1H Nội Thành
Ship COD Toàn Quốc
Cài Đặt Miễn Phí
Trả Góp 0%
THƯỜNG ĐƯỢC MUA CÙNG
Socket và CPU hỗ trợ: Bo mạch dùng nền tảng Intel B860, hỗ trợ Intel Core Ultra Series 2.
Nguồn và PCB: Trang bị 8+1+2 Digital VRM Design, dùng 10-layer PCB, Mid-Loss PCB, 2X Copper PCB, cùng Premium Choke và Capacitor. Nguồn cấp gồm 24-pin ATX và 8-pin CPU UD Solid Pin.
RAM: Hỗ trợ 2 khe DDR5 Dual Channel, đi kèm các công nghệ tối ưu bộ nhớ như D5 Bionic Corsa và DDR5 XMP Booster để tăng hiệu năng RAM và tối ưu ép xung dễ hơn.
PCIe và lưu trữ: Có 1 khe PCIe 5.0 x16 với PCIe UD Slot. Phần lưu trữ gồm 2 khe M.2, trong đó 1 khe PCIe 5.0 M.2 ở mặt trước và 1 khe PCIe 4.0 M.2 ở mặt sau. Ngoài ra còn có 2 cổng SATA 6Gb/s.
Kết nối hiển thị và USB: Bo mạch có 1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C với DP-Alt, 2 cổng USB 3.2 Gen 1, 3 cổng USB 3.2 Gen 2 và Front USB-C 10Gb/s.

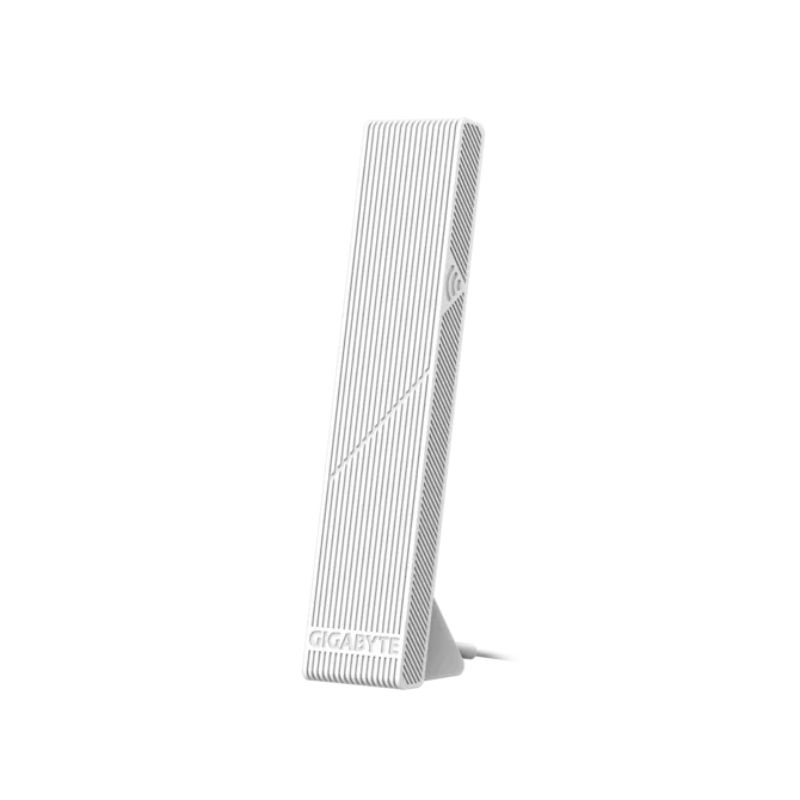

Mạng và không dây: Tích hợp 2.5 GbE LAN và Wi-Fi 7 kèm ăng-ten độ lợi cao, đồng thời có tính năng WIFI EZ-Plug để cắm anten thuận tiện hơn.
Tản nhiệt: Trang bị VRM Thermal Armor Advanced, pad tản nhiệt 5 W/mK, Integrated IO Shield, M.2 Thermal Guard Ext. và hỗ trợ Smart Fan 6 với 2 header PWM/DC cùng Dual Fan Curve Mode.
DIY và tiện ích lắp ráp: Bo mạch có các tính năng thân thiện khi lắp ráp như M.2 EZ-Latch Plus, M.2 EZ-Latch Click, PCIe EZ-Latch Plus và EZ-Debug Zone với Debug LEDs.
RGB: Hỗ trợ RGB Fusion với 2 đầu cắm Addressable LED và 1 đầu cắm RGB LED.
Mainboard Gigabyte B860I AORUS PRO ICE
| Tiêu đề | Mainboard Gigabyte B860I AORUS PRO ICE |
|
CPU |
LGA1851 socket: Support for Intel ® Core™ Ultra Processors |
|
|
(Go to GIGABYTE's website for the latest CPU support list.) |
| L3 cache varies with CPU | |
|
Chipset |
Intel ® B860 Express Chipset |
|
Bộ nhớ |
Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
|
|
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
|
Card đồ họa tích hợp |
|
| Integrated Graphics Processor-Intel® HD Graphics support: | |
|
Integrated Graphics Processor-Intel® HD Graphics support: |
|
| - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to triple-display at the same time | |
|
Âm thanh |
Realtek® Audio CODEC |
|
|
High Definition Audio |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) | |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations | |
|
Khe cắm mở rộng |
|
| CPU: | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) |
| Chipset: | - 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
| - 2 x SATA 6Gb/s connectors | |
| RAID 0 and RAID 1 support for SATA storage devices | |
|
USB |
|
| CPU: | - 1 x USB4® USB Type-C® port on the back panel |
| Chipset: | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| - 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Chipset+USB 3.2 Gen 1 Hub: | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
Kết nối I/O bên trong |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan header | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 2 x M.2 Socket 3 connectors | |
| 2 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x speaker header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
|

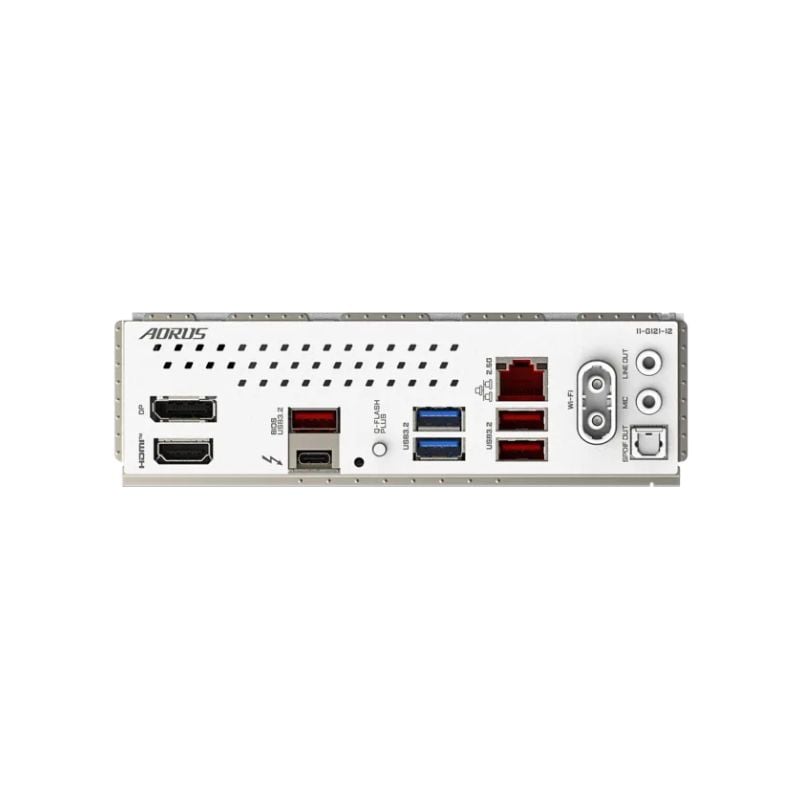

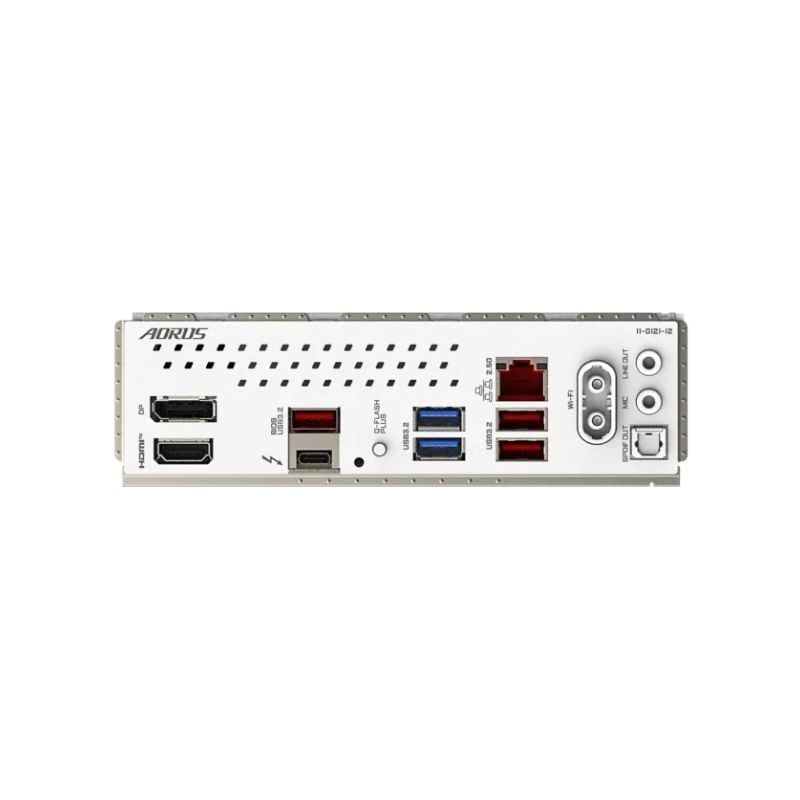

Kết nối bảng phía sau |
1 x DisplayPort* |
| 1 x HDMI port* | |
| 1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port) | |
|
|
3 x USB 3.2 Gen 2 Type-A ports (red) |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| * Actual support may vary by CPU. | |
|
Điều khiển I/O |
iTE® I/O Controller Chip |
|
Theo dõi phần cứng |
Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
|
BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Tính năng duy nhất |
Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
|
Gói phần mềm |
Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
|
Hệ điều hành |
Support for Windows 11 64-bit |
|
Hệ số khuôn |
Mini-ITX Form Factor; 17.0cm x 17.0cm |
