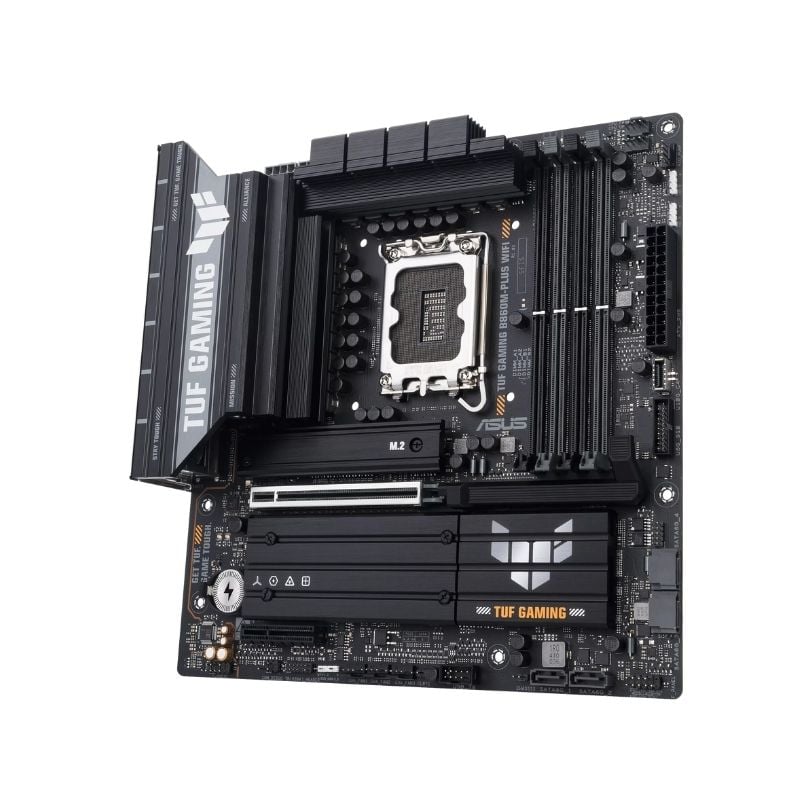

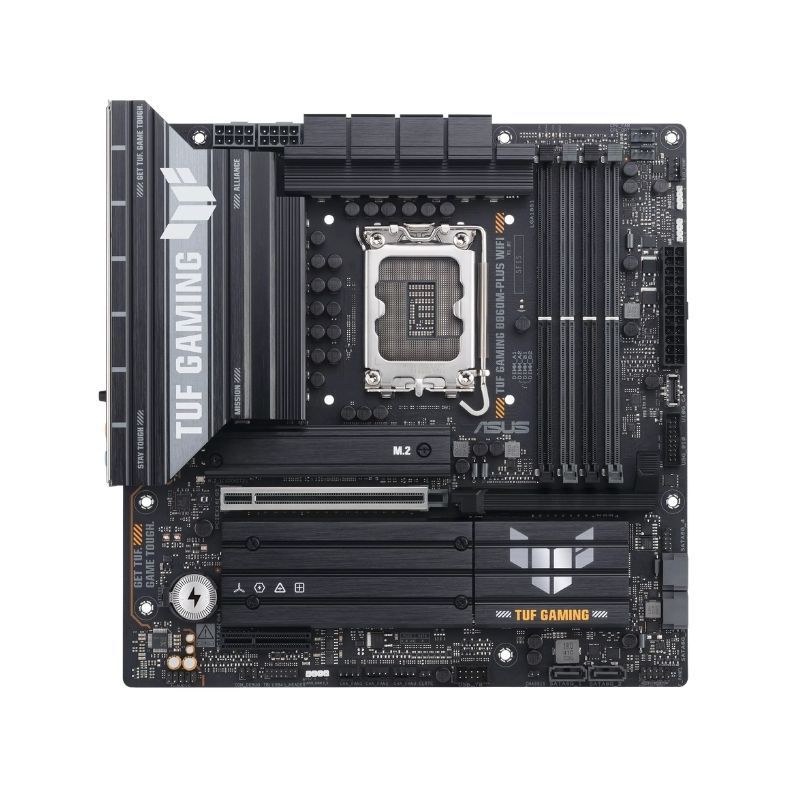

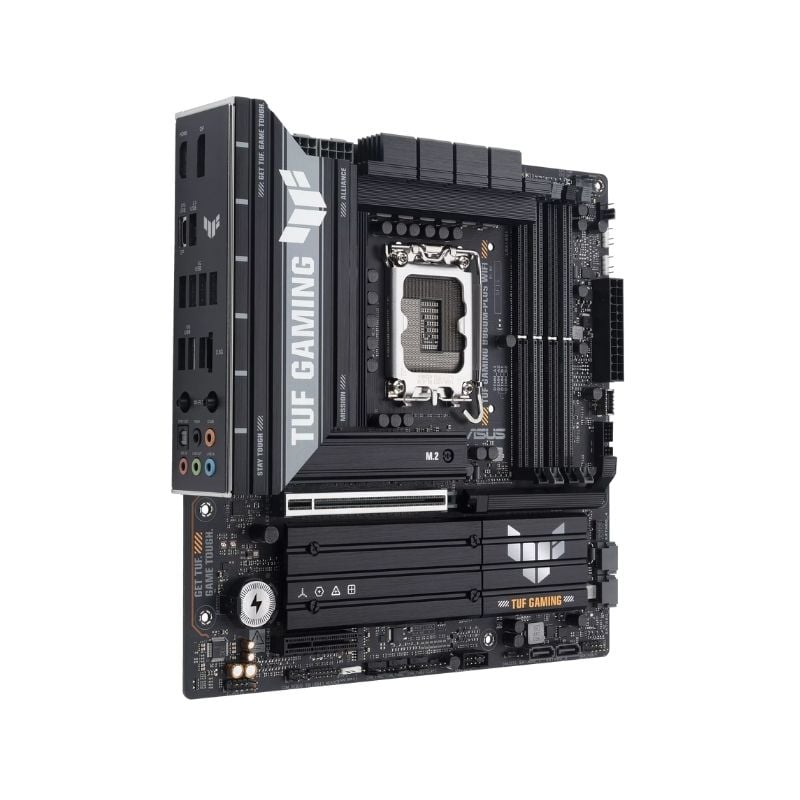

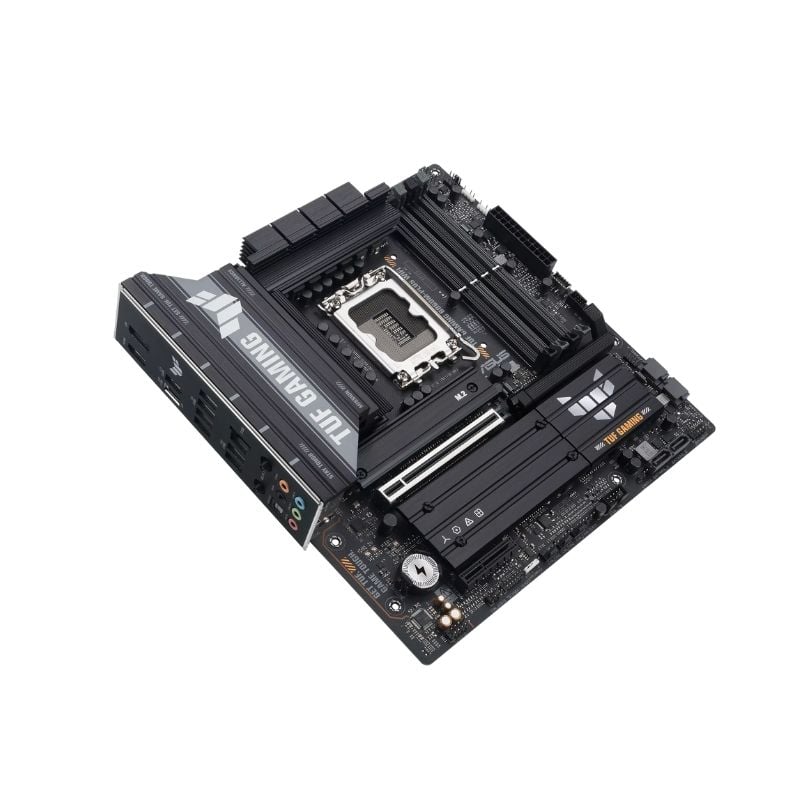

Mainboard ASUSTUF GAMING B860M-PLUS WIFI

SKU: SP009296
Hãng: ASUS
Còn hàng
5,706,750₫
Mainboard ASUSTUF GAMING B860M-PLUS WIFI - Default Title
Hot Chỉ còn 1 sản phẩm cuối
Hàng Chính Hãng (Bảo hành 12 tháng) Hàng Chính Hãng
Giao Hàng Nhanh (Nội thành 1H – Tỉnh 2-5 ngày) Giao Hàng Nhanh (Nội thành 1H – Tỉnh 2-5 ngày)
Hỗ Trợ Kỹ Thuật (Cài đặt & Xử lý sự cố miễn phí) Hỗ Trợ Kỹ Thuật (Cài đặt & Xử lý sự cố miễn phí)
Đổi Trả Trong 7 Ngày Nếu Lỗi Đổi Trả Trong 7 Ngày Nếu Lỗi
? CẦN HÀNG CHO DỰ ÁN / GIAO GẤP?
Gọi trực tiếp 0938.975.268 hoặc chat qua Zalo

Mô tả sản phẩm

Mainboard ASUSTUF GAMING B860M-PLUS WIFI
Tiêu đề Mainboard ASUSTUF GAMING B860M-PLUS WIFI
CPU Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  *Refer to https://www.asus.com/support/download-center/ for CPU support list.
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ chip

Intel® B860 Chipset

Bộ nhớ


  4 x DIMM slots, max. 256GB, DDR5
  Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual Channel Memory Architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III(AEMPIII)
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Đồ họa

1 x DisplayPort**
  1 x HDMI™ port***
  1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  ***Supports 4K@60Hz as specified in HDMI 2.1.
  **** VGA resolution support depends on processors' or graphic cards' resolution.
  *****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Khe cắm mở rộng


Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot
Intel® B860 Chipset 1 x PCIe 4.0 x4 slot
  - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Lưu trữ

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors(Series 2)*
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  Intel® B860 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet
  TUF LANGuard
Không dây & Bluetooth Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®)
  2 x USB 10Gbps port (2 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  1 x USB 2.0 ports (1x Type-A)

Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 headers support 2 additional USB 2.0 ports
  * USB Type-C® power delivery output: max. 5V/3A
Âm thanh Realtek 7.1 Surround Sound High Definition Audio CODEC
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
Audio Features   - Audio Shielding
  - Rear optical S/PDIF out port
  - Premium audio capacitors
  - Dedicated audio PCB layers

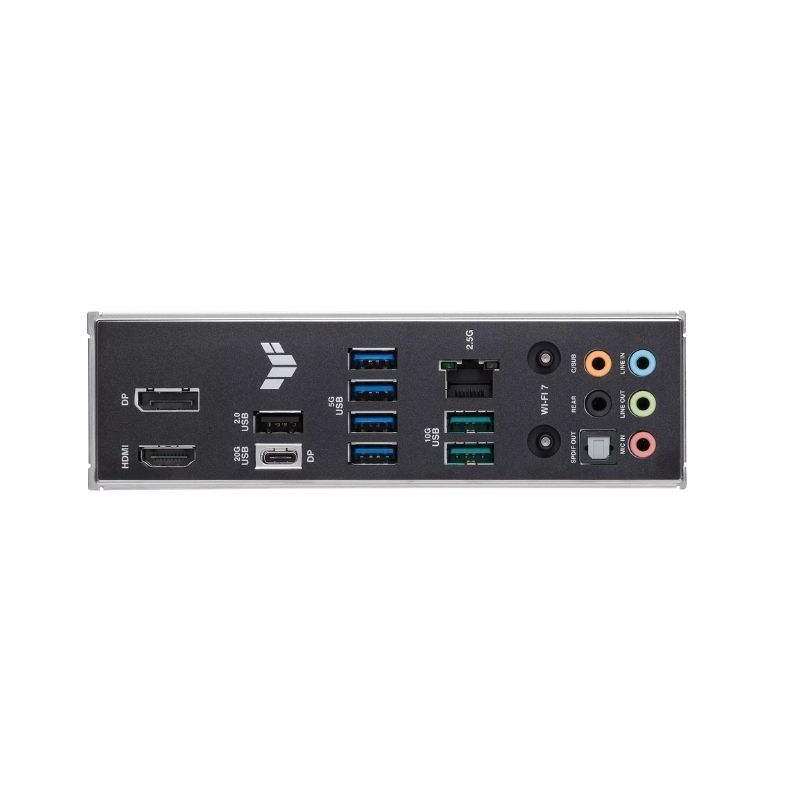

Cổng I/O mặt sau 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  2 x USB 10Gbps port (2 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  1 x USB 2.0 port (1 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý

WOL by PME, PXE

Phụ kiện đi kèm



Cables

2 x SATA 6Gb/s cables

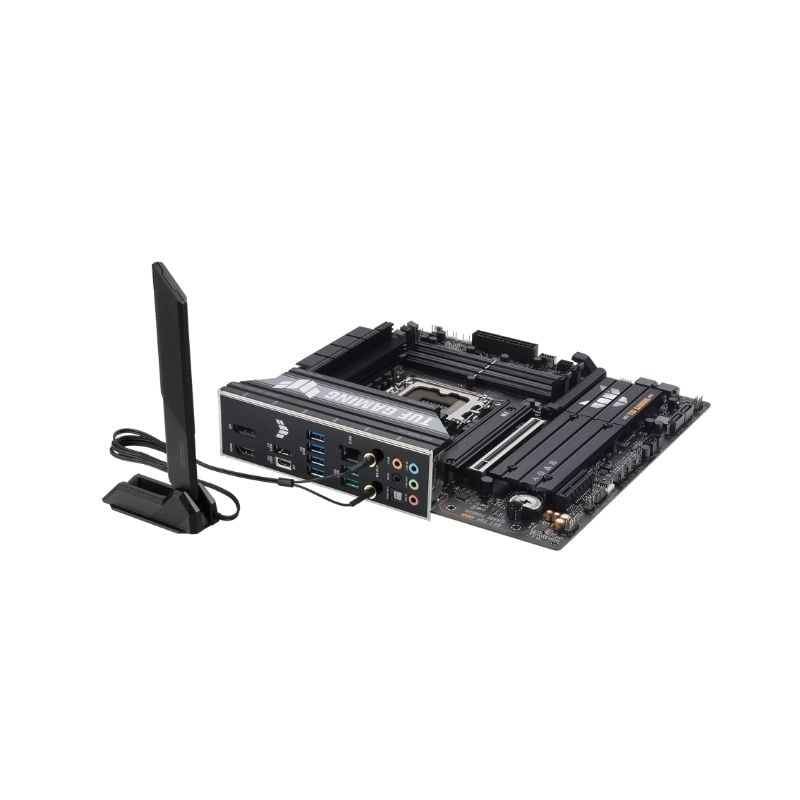

Miscellaneous 1 x ASUS WiFi Q-Antenna
  2 x M.2 Rubber Packages
  1 x TUF Gaming sticker
  1 x Screw package for M.2 SSD
Documentation 1 x Quick start guide

Hệ điều hành

Windows 11 (22H2 & later)

Form Factor

mATX Form Factor

  9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
