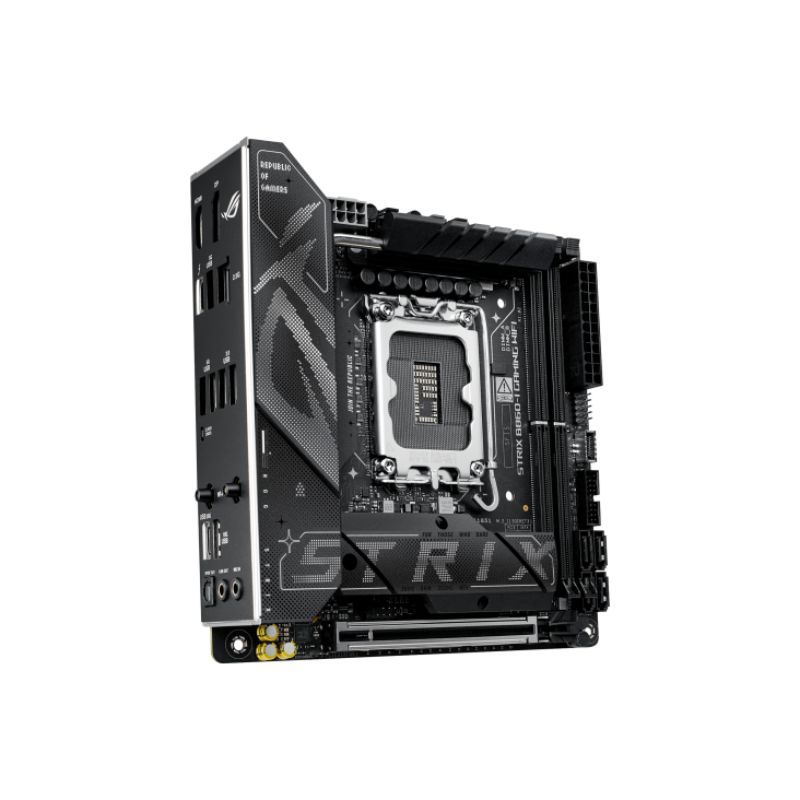

Mainboard ASUS ROG STRIX B860-I GAMING WIFI

Mainboard ASUS ROG STRIX B860-I GAMING WIFI

Name: Mainboard ASUS ROG STRIX B860-I GAMING WIFI
Brand: ASUS
SKU: SP009295
Price: 6812400 VND
Availability: InStock

SKU: SP009295

Thương hiệu: ASUS

Còn hàng

6,812,400₫

100% Chính Hãng

Bảo hành

Giao 1H Nội Thành

Ship COD Toàn Quốc

Cài Đặt Miễn Phí

Trả Góp 0%

ROG Strix B860-I Gaming WiFi được thiết kế để thống trị cuộc chơi với Bộ vi xử lý Intel® Core™ Ultra (Dòng 2). Thiết kế nguồn điện tiên tiến và các giải pháp AI thúc đẩy hiệu năng dẫn đầu, trong khi Thunderbolt™ 4, WiFi 7 và khe cắm DDR5 tốc độ cao cung cấp khả năng kết nối tiên tiến. Bo mạch chủ này cung cấp sức mạnh và tốc độ cần thiết cho các ứng dụng AI đòi hỏi khắt khe và chơi game đỉnh cao.

Mainboard ASUS ROG STRIX B860-I GAMING WIFI

Tiêu đề	Mainboard ASUS ROG STRIX B860-I GAMING WIFI
CPU	Support Intel® Core™ Ultra Processors
	(Series 2)*
	Supports Intel® Turbo Boost Technology 2.0
	and Intel® Turbo Boost Max Technology 3.0**
	* Refer to
	https://www.asus.com/support/download-center/ for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0
	support depends on the CPU types.
Bộ chip	Intel® B860 Chipset
Bộ nhớ	2 x DIMM slots, max. 128GB, DDR5
	Supports up to 9066+MT/s (OC), Non-ECC
	Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
	Dual channel memory architecture
	DIMM Fit
	Supports Intel® Extreme Memory Profile
	(XMP) memory module
	ASUS Enhanced Memory Profile III (AEMP III)
	*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	* Supported memory types, data rate
	(speed), and number of DRAM modules vary depending on the CPU and memory
	configuration, for more information please refer to CPU/Memory Support list
	under the Support tab of product information site or visit
	https://www.asus.com/support/download-center/.
	* *Non-ECC, un-buffered DDR5 memory
	supports On-Die ECC function.
Đồ họa	1 x DisplayPort**
	1 x HDMI™ port***
	1 x Intel® Thunderbolt™ 4 supports
	DisplayPort and Thunderbolt™ video outputs****
	* Graphics specifications may vary between
	CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in
	DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI
	2.1.
	****Supports up to 8K@60Hz x1 with DSC,
	maximum total bandwidth up to 23.8Gbps, for resolution support please check
	DisplayPort 2.1 specs.
	***** VGA resolution support depends on
	processors' or graphic cards' resolution.
Khe cắm mở rộng
Intel® Core™ Ultra Processors (Series 2)	1 x PCIe 5.0 x16 slot
	- To ensure compatibility of the device
	installed, please refer to https://www.asus.com/support/download-center/ for
	the list of supported peripherals.
Lưu trữ
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)	M.2_1 slot (Key M), type 2260/2280
	(supports PCIe 5.0 x4 mode)
Intel® B860 Chipset**	M.2_2 slot (Key M), type 2242/2260/2280
	(supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports
	SATA RAID 0/1/5/10.
Ethernet	1 x Intel® 2.5Gb Ethernet
	ASUS LANGuard
Không dây & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For
	Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi
	6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)	1 x Thunderbolt™ 4 port (1 x USB Type-C®)
	1 x USB 20Gbps port (1 x USB Type-C®)
	1 x USB 10Gbps ports (1 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)	1 x USB 10Gbps connector (supports USB
	Type-C®)
	1 x USB 5Gbps header supports 2 additional
	USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional
	USB 2.0 ports
	* USB Type-C® power delivery output: max.
	5V/3A
Âm thanh
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*	- Impedance sense for front and rear
	headphone outputs
	- Internal audio Amplifier to enhance the
	highest quality sound for headphone and speakers
	- Supports: Jack-detection,
	Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback
	output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz
	playback*"
Audio Features	- SupremeFX Shielding Technology
	- Savitech SV3H712 AMP
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* Due to limitations in HDA bandwidth,
	32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
	** A chassis with an HD audio module in the
	front panel is required to support 7.1 Surround Sound audio output.

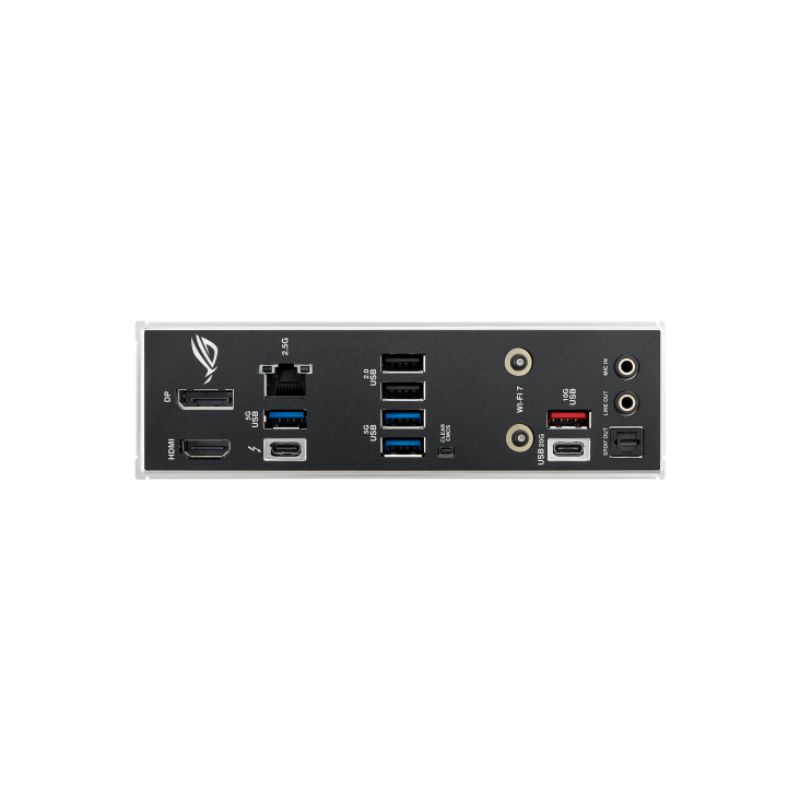

Cổng I/O mặt sau	1 x Thunderbolt™ 4 port (1 x USB Type-C®)
	1 x USB 20Gbps port (1 x USB Type-C®)
	1 x USB 10Gbps ports (1 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Intel® 2.5Gb Ethernet port
	2 x Audio jacks
	1 x Optical S/PDIF out port
	1 x Clear CMOS button
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, UEFI PXE
Phụ kiện đi kèm
Cables	2 x SATA 6Gb/s cables
	1 x ROG USB2.0 splitter cable
	1 x Panel cable
Miscellaneous	1 x ASUS WiFi Q-Antenna
	1 x Cable ties package
	1 x M.2 Q-Latch package
	1 x Screw package for M.2 SSD
	1 x M.2 Bracket
	1 x ROG key chain
	1 x ROG Strix stickers
Documentation	1 x Quick start guide
Hệ điều hành	Windows 11 (22H2 & later)
Form Factor	Mini-ITX Form Factor
	6.7 inch x 6.7 inch ( 17 cm x 17 cm )
