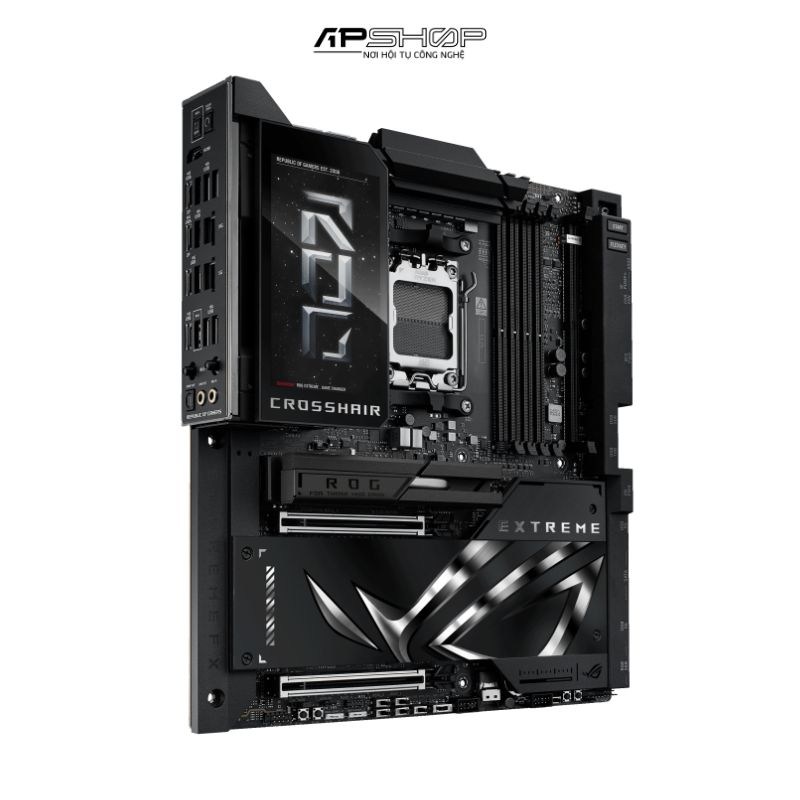

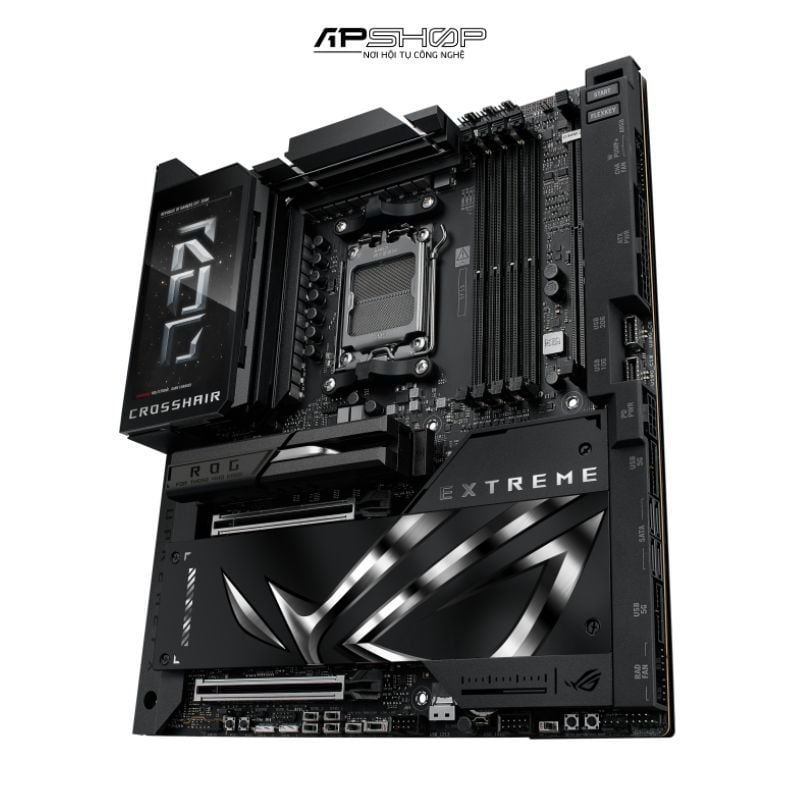

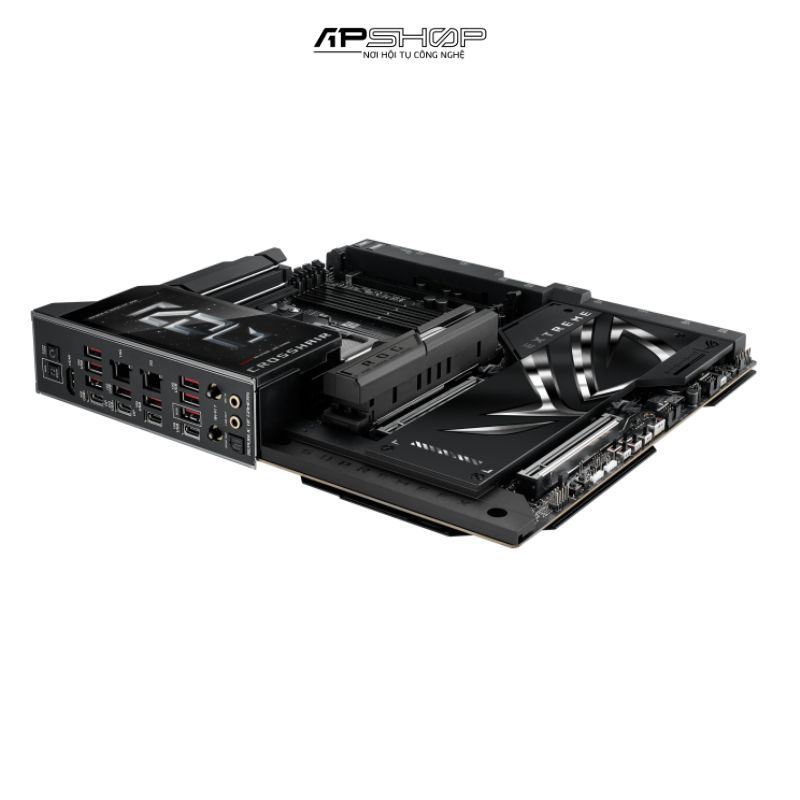

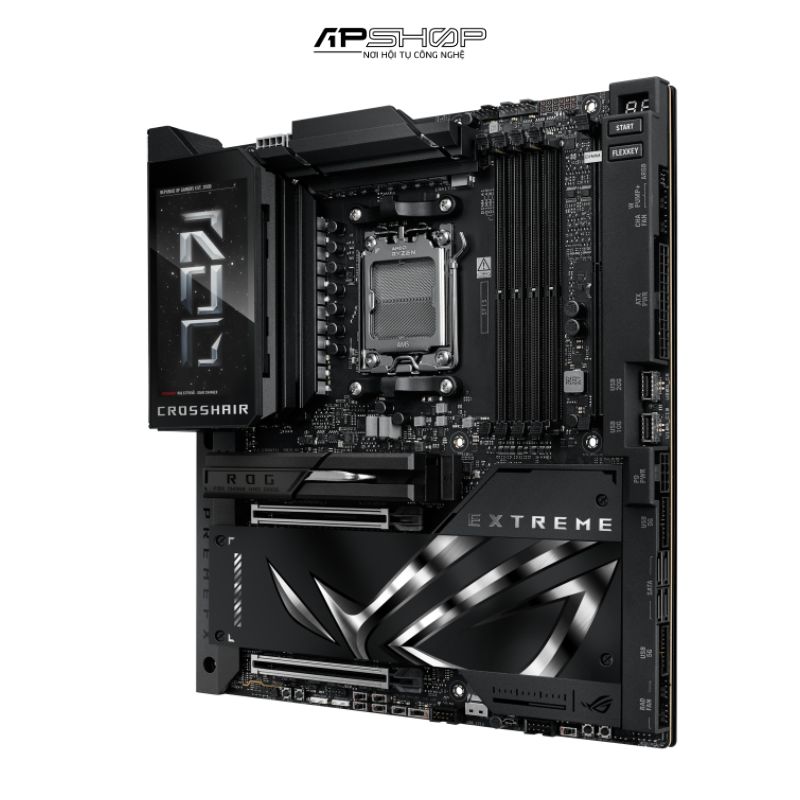

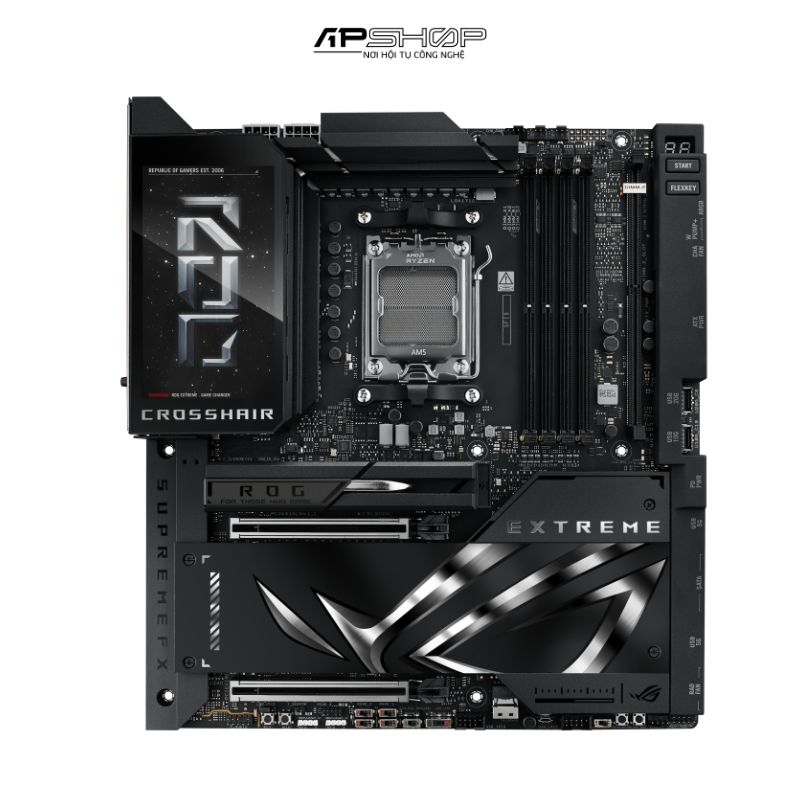

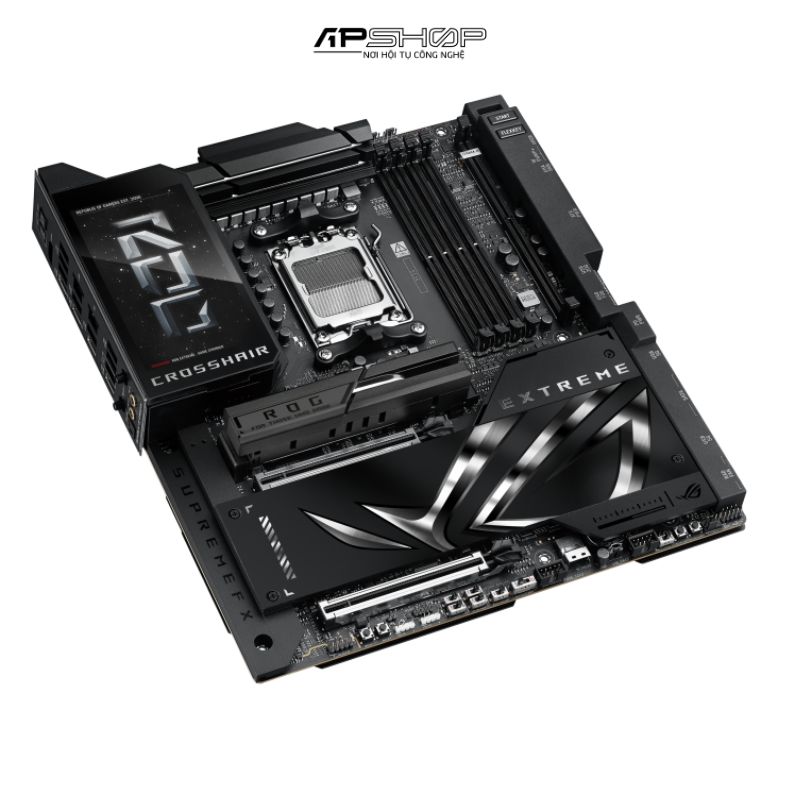

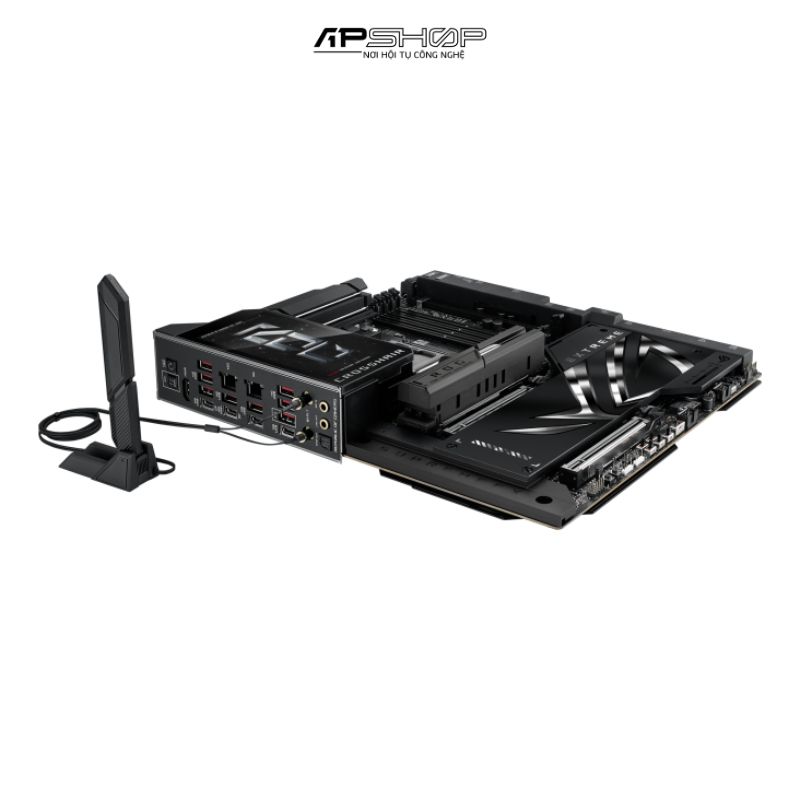

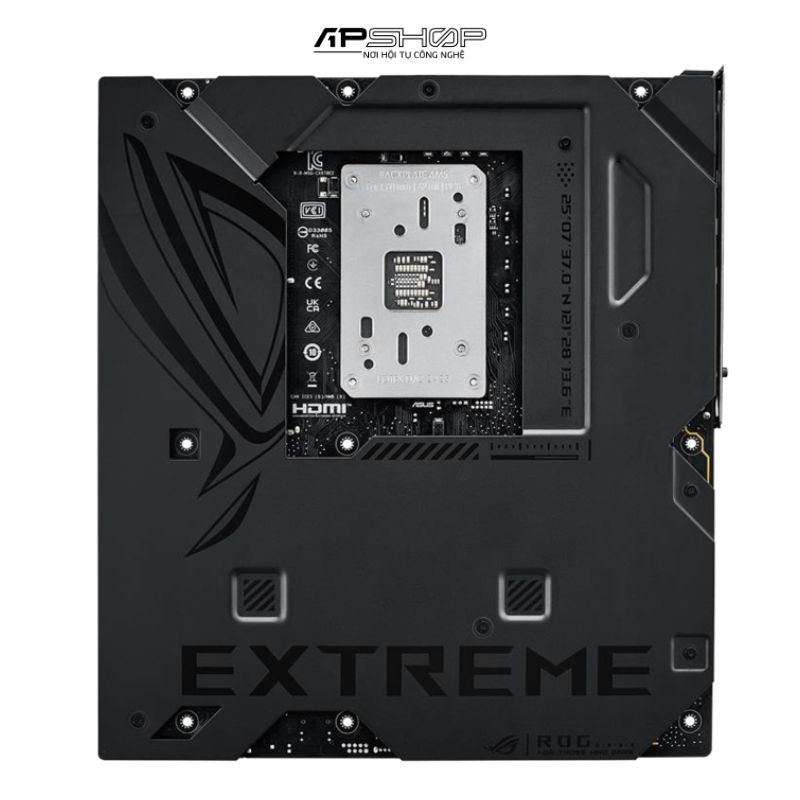

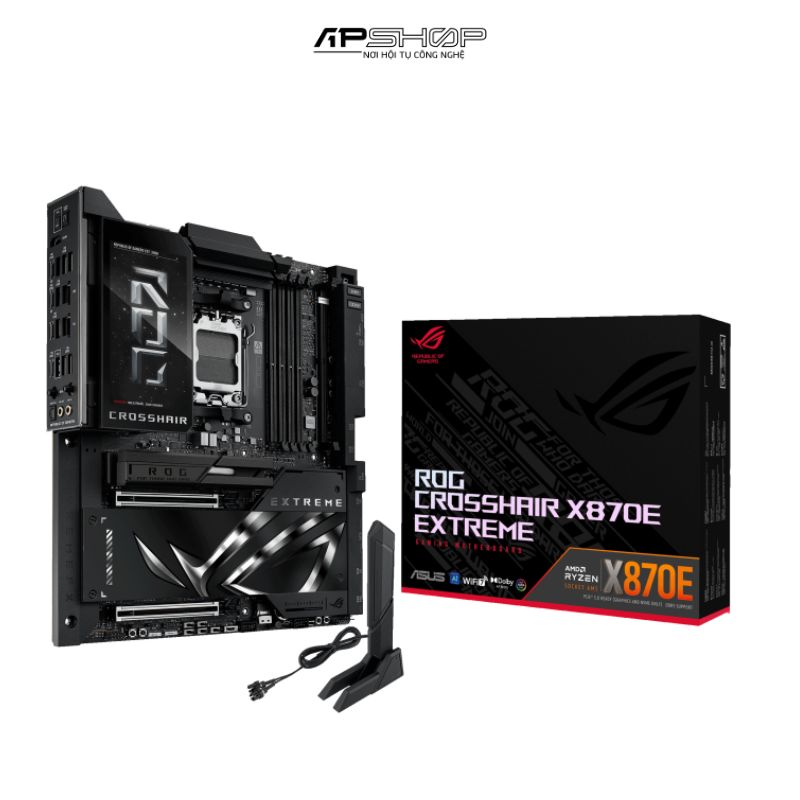

Mainboard Asus ROG CROSSHAIR X870E EXTREME
26,696,250₫
29,490,000₫
-9%
Mainboard Asus ROG CROSSHAIR X870E EXTREME - Default Title
Chính hãng 100%
Bảo hành
Hỏa tốc 1h (TP.HCM)
Giao toàn quốc
Bạn đang phân vân về sản phẩm Mainboard Asus
THƯỜNG ĐƯỢC MUA CÙNG
Mua Kèm Để Tương Thích & Tối Ưu Hóa Trải Nghiệm
Mainboard Asus ROG CROSSHAIR X870E EXTREME
| CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset |
AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 |
| Supports up to | |
| 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, | |
| 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, | |
| ECC and Non-ECC, Un-buffered DIMM* | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| NitroPath DRAM Technology | |
| Graphics | 1 x HDMITM port |
| 2 x USB4® (40Gbps) ports support USB Type-C® display output | |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) | |
| ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8. | |
| ***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4. | |
| **** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. | |
| AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors | |
| 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled) | |
| AMD Ryzen™ 8500 & 8300 Series Desktop Processors* | |
| 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled) | |
| Storage | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) | |
| AMD X870E Chipset | |
| DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. | |
| 4 x SATA 6Gb/s ports | |
| * When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. | |
| ** When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled. | |
| AMD RAIDXpert2 Technology | |
| Ryzen™ 9000 Series Processors: RAID 0/1/5/10 | |
| Ryzen™ 8000 Series Processors: RAID 0/1 | |
| Ryzen™ 7000 Series Processors: RAID 0/1/10 | |
| Ethernet | 1 x Realtek 5Gb Ethernet |
| 1 x Marvell® AQtion 10Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | Rear USB (Total 12 ports) |
| 2 x USB4® (40Gbps) ports (2 x USB Type-C®) | |
| 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®) | |
| Front USB (Total 10 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| USB Type-C® power delivery output: max. 5V/3A | |
| *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback on front panel | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - ESS® ES9219 QUAD DAC | |
| - LED-illuminated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. | |

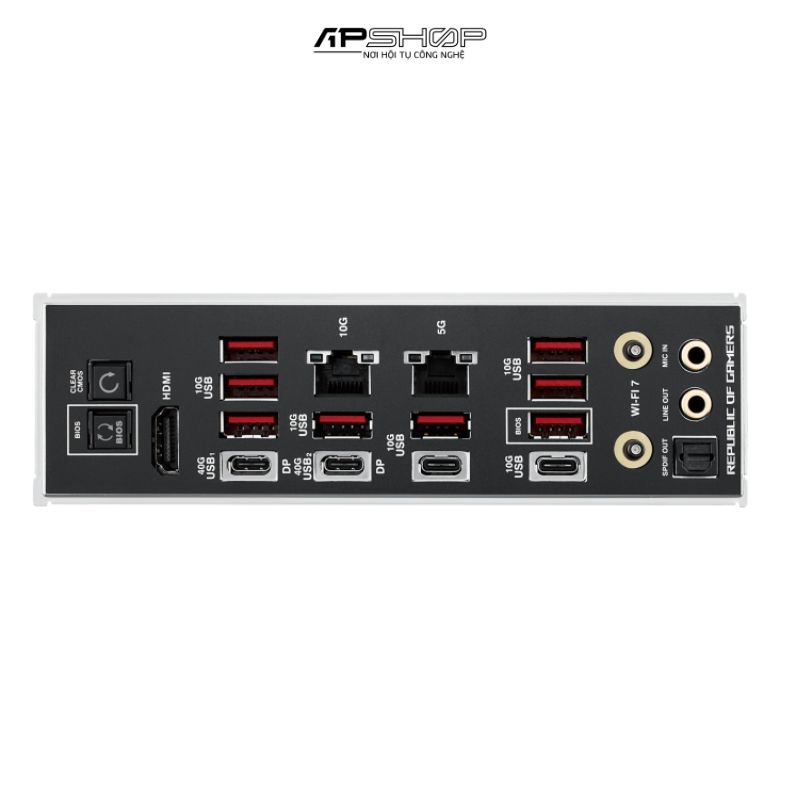

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 5Gb Ethernet port | |
| 1 x Marvell® AQtion 10Gb Ethernet port | |
| 2 x LED-illuminated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| 2 x 4-pin Radiator Fan headers | |
| 2 x W_PUMP+ headers | |
| 1 x VRM Heatsink Fan header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| 1 x 8-pin PCIe Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 1 x DIMM.2 slot supports 2 x M.2 slots (Key | |
| M) | |
| 1 x SlimSAS connector | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB | |
| Type-C®) | |
| 1 x USB 10Gbps connector (supports USB | |
| Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional | |
| USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional | |
| USB 2.0 ports | |
| Miscellaneous | |
| 1 x 6-pin ARGB Gen 2 header to support 2 x | |
| ARGB Gen 2 headers | |
| 2 x Addressable Gen 2 header | |
| 1 x Alteration PCIe mode switch | |
| 2 x BCLK button | |
| 1 x BIOS Switch | |
| 1 x FlexKey button | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x LN2 Mode jumper | |
| 12 x ProbeIt Measurement Points | |
| 1 x ReTry button | |
| 2 x RSVD switchs | |
| 1 x RSVD header | |
| 1 x Safe Boot button | |
| 1 x Slow Mode switch | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Pause switch | |
| Special Features | Extreme OC Kit |
| - FlexKey button | |
| - LN2 Mode | |
| - ProbeIt | |
| - ReTry button | |
| - Safe boot button | |
| - Start button | |
| - Slow Mode | |
| Extreme Engine Digi+ | |
| - 10K Black Metallic Capacitors | |
| - MicroFine Alloy Choke | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - M.2 Q-Release | |
| - M.2 Q-Slide | |
| - Q-Release Slim (with PCIe SafeSlot) | |
| - Q-Antenna | |
| - Q-Code | |
| - Q-Connector | |
| - Q-Dashboard | |
| - Q-LED (CPU [red], DRAM [yellow], VGA | |
| [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| - Q-DIMM.2 | |
| ASUS Thermal Solution | |
| - Fan bracket | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| - Metal backplate | |
| - VRM heatsink design | |
| - 3D VC M.2 Heatsink | |
| ASUS EZ DIY | |
| - Backplate | |
| - BIOS FlashBack™ button | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Addressable Gen 2 headers | |
| Dual BIOS | |
| Full Color 5" LCD Display | |
| Front Panel USB 20Gbps with Quick Charge 4+ | |
| Support | |
| - Support: up to 60W fast charging and USB | |
| Wattage Watcher* | |
| - Output: 5/9/15/20V max. 3A, PPS:3.3–21V | |
| max. 3A | |
| - Compatible with PD3.0 and PPS | |
| * To support 60W, please install the power | |
| cable to the 8-pin PCIe power connector or else only 27W will be supported. | |
| Software Features | ROG Exclusive Software |
| - ROG CPU-Z | |
| - Dolby Atmos | |
| - Internet Security (1-year full version) | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (1 year full version) | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - GameFirst | |
| - HWiNFO | |
| - Power Saving | |
| - LCD Display | |
| ASUS AI Advisor | |
| ASUS DriverHub | |
| Turbo Vcore | |
| ASUS GlideX | |
| USB Wattage Watcher | |
| WinRAR (40 Days Free Trial) | |
| Adobe Creative Cloud (Free Trial) | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| - ASUS MyHotkey | |
| FlexKey | |
|
BIOS |
2 x 256 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME |
|
Operating System |
Windows® 11 |
|
Form Factor |
E-ATX Form Factor |
| 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
