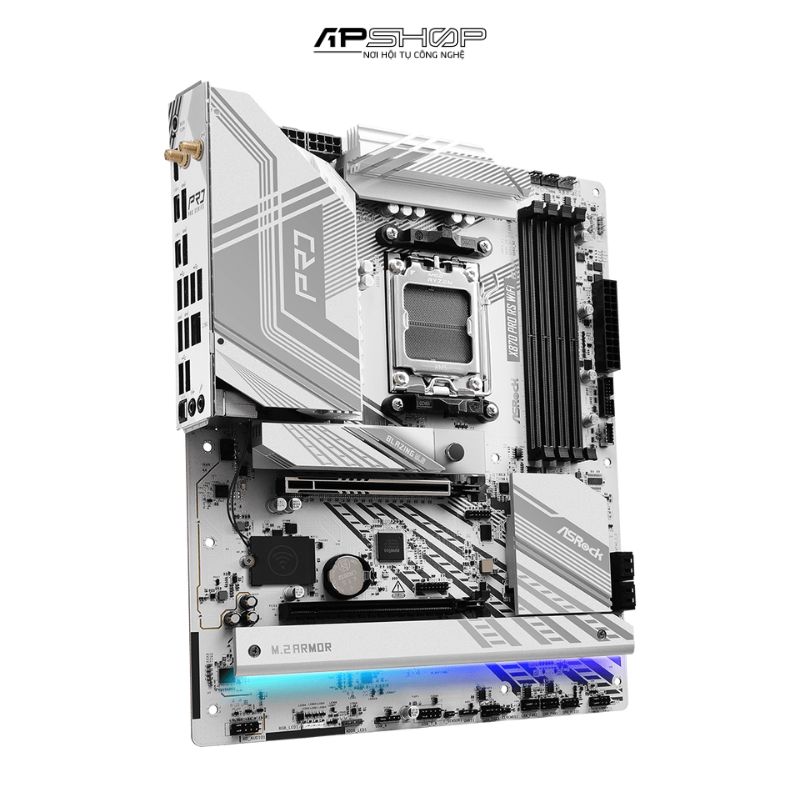

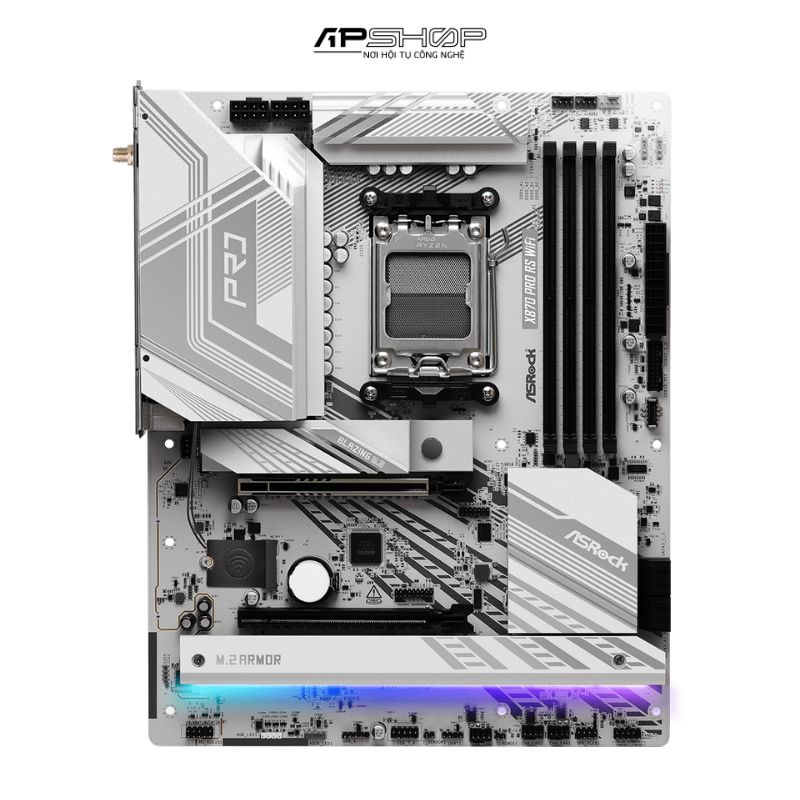

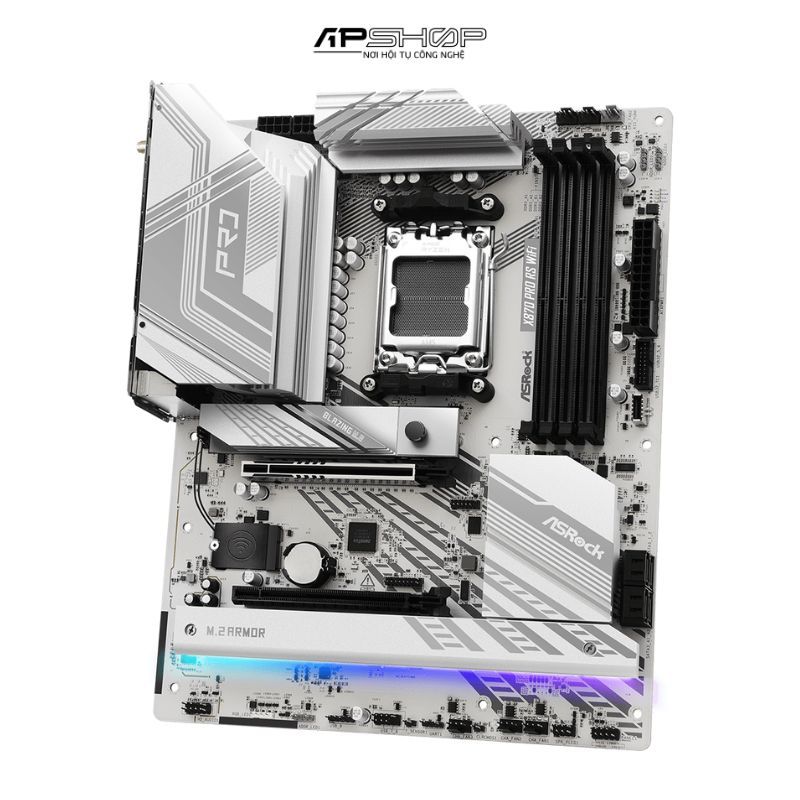

Mainboard ASrock X870 Pro RS WiFi
Chính hãng 100%
Bảo hành
Hỏa tốc 1h (TP.HCM)
Giao toàn quốc
THƯỜNG ĐƯỢC MUA CÙNG
|
||
|
Superb Productivity |
- PCIe Gen5 (Graphics, M.2) | |
| - Dual Channel DDR5 | ||
| - USB4 Type-C Ports (40 Gb/s) | ||
| Rock-Solid Durability | - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor | |
| - Flexible Integrated I/O Shield | ||
| Ultrafast Connectivity | - 2.5G LAN, 802.11be Wi-Fi 7 Module | |
| EZ Update | - BIOS Flashback Button | |
| - ASRock Auto Driver Installer | ||
| EZ Troubleshooter | - ASRock Post Status Checker | |
|
CPU |
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
|
|
*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
||
|
Chipset |
- AMD X870 |
|
|
Memory |
- Dual Channel DDR5 Memory Technology |
|
| - 4 x DDR5 DIMM Slots | ||
| - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* | ||
| - Max. capacity of system memory: 256GB | ||
| - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | ||
|
*Please refer to Memory Support List on ASRock's website for more information. |
||
|
BIOS |
- 256Mb AMI UEFI Legal BIOS with GUI support |
|
|
Graphics |
Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
|
| - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | ||
| - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* | ||
|
* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics. |
||
|
Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
|
| - Impedance Sensing on Rear Out port | ||
| - Individual PCB Layers for R/L Audio Channel | ||
| - Nahimic Audio | ||
|
LAN |
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
| - Dragon RTL8125BG | ||
| - Supports Dragon 2.5G LAN Software | ||
| - Smart Auto Adjust Bandwidth Control | ||
| - Visual User Friendly UI | ||
| - Visual Network Usage Statistics | ||
| - Optimized Default Setting for Game, Browser, and Streaming Modes | ||
| - User Customized Priority Control | ||
|
Wireless LAN |
- 802.11be 2x2 Wi-Fi 7 Module |
|
| - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be | ||
| - Supports 2.4GHz/5GHz/6GHz* frequency band | ||
| - Supports 160MHz channel bandwidth with 6GHz* frequency band | ||
| - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology | ||
| - Supports Bluetooth 5.4 | ||
| - Supports MU-MIMO | ||
|
*The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
||
|
Slots |
||
|
CPU: |
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| Chipset: | - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* | |
| - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | ||
| - Supports AMD CrossFire™ | ||
| - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | ||
|
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. |
||
| If M2_2 is occupied, PCIE2 will be disabled. | ||
| Supports NVMe SSD as boot disks | ||
|
Storage |
||
|
CPU: |
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| Chipset: | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* | ||
| - 2 x SATA3 6.0 Gb/s Connectors | ||
| ASMedia ASM1061: | - 2 x SATA3 6.0 Gb/s Connectors | |
|
* Supports NVMe SSD as boot disks |
||
| M2_1 is the first priority for M.2 installation. | ||
| M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. | ||
| If M2_2 is occupied, PCIE2 will be disabled. | ||
| If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode. | ||
|
RAID |
- Supports RAID 0 and RAID 1 for SATA storage devices |
|
| - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* | ||
|
* Requires additional M.2 NVMe expansion cards to support RAID 10 |
||
|
USB |
||
|
CPU: |
- 2 x USB4 Type-C (Rear) | |
| - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) | ||
| Chipset: | - 1 x USB 3.2 Gen2x2 Type-C (Front) | |
| - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) | ||
| - 9 x USB 2.0 (6 Rear, 3 Front) | ||
|
* All USB ports support ESD Protection |
||
|
Connector |
- 1 x Thermistor Cable Header |
|
| - 1 x SPI TPM Header | ||
| - 1 x Power LED and Speaker Header | ||
| - 1 x RGB LED Header* | ||
| - 3 x Addressable LED Headers** | ||
| - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** | ||
| - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** | ||
| - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** | ||
| - 1 x 24 pin ATX Power Connector | ||
| - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | ||
| - 1 x Front Panel Audio Connector | ||
| - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) | ||
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | ||
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | ||
|
* Supports in total up to 12V/3A, 36W LED Strip |
||
| ** Support in total up to 5V/3A, 15W LED Strip | ||
| *** CPU_FAN1 supports the fan power up to 1A (12W). | ||
| CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). | ||
| CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. | ||
|

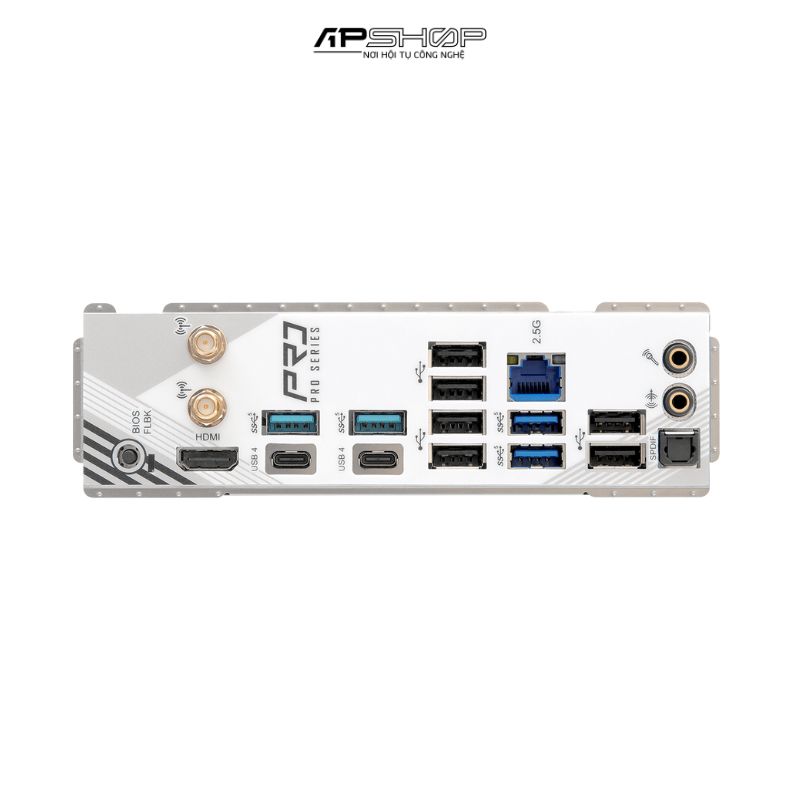

Rear Panel I/O |
- 2 x Antenna Ports |
|
| - 1 x HDMI Port | ||
| - 1 x Optical SPDIF Out Port | ||
| - 2 x USB4 Type-C Ports (40 Gb/s)* | ||
| - 4 x USB 3.2 Gen1 Type-A Ports | ||
| - 6 x USB 2.0 Ports | ||
| - 1 x RJ-45 LAN Port | ||
| - 1 x BIOS Flashback Button | ||
| - 1 x Line Out Jack (Gold Audio Jack) | ||
| - 1 x Microphone Input Jack (Gold Audio Jack) | ||
|
* Supports USB PD 3.0 up to 5V@3A (15W) charging |
||
|
Software and UEFI |
||
|
Software |
- ASRock Motherboard Utility (A-Tuning) | |
| - ASRock Dragon 2.5G LAN Software | ||
| - ASRock Polychrome SYNC* | ||
| UEFI | - ASRock EZ Mode | |
| - ASRock Full HD UEFI | ||
| - ASRock Auto Driver Installer | ||
| - ASRock Instant Flash | ||
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
||
|

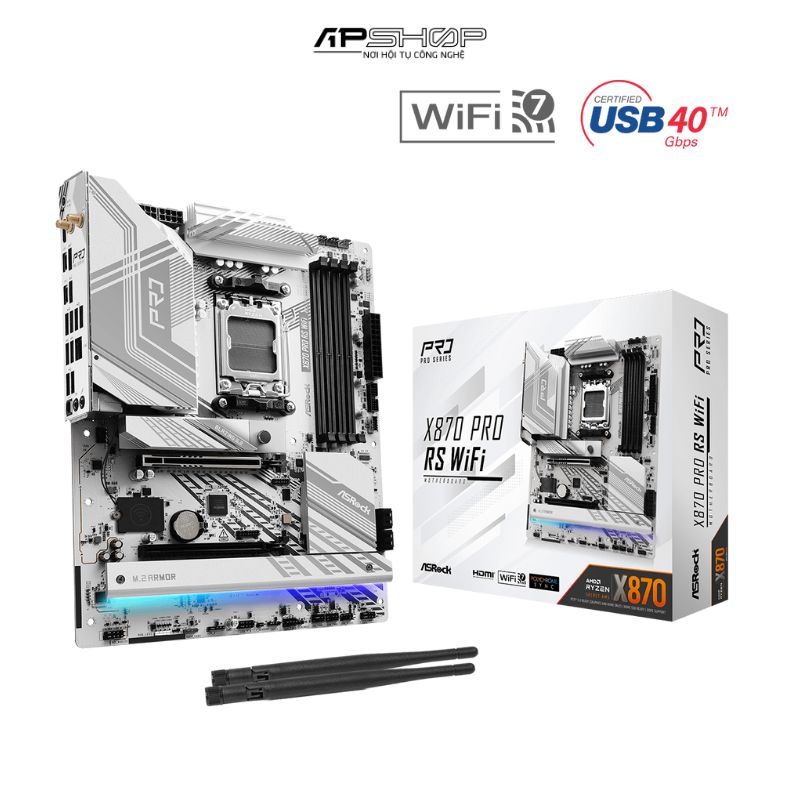

Accessories |
- 2 x SATA Data Cables |
|
| - 2 x ASRock WiFi 2.4/5/6 GHz Antennas | ||
|
Form Factor |
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
| - 8 Layer PCB | ||
|
OS |
- Microsoft Windows® 10 64-bit / 11 64-bit |
|
|
Certifications |
- FCC, CE |
|
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
