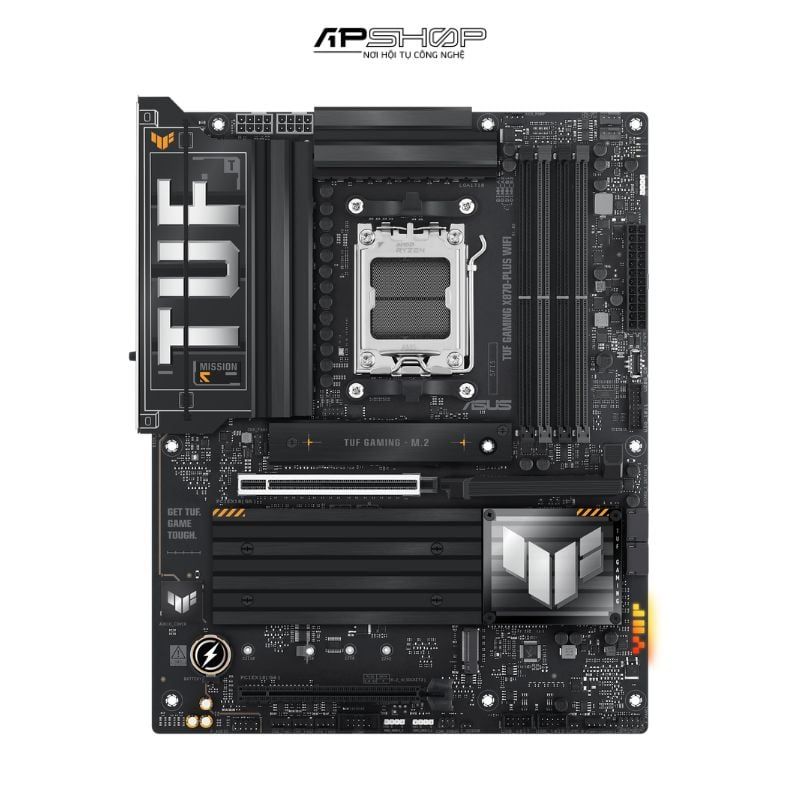

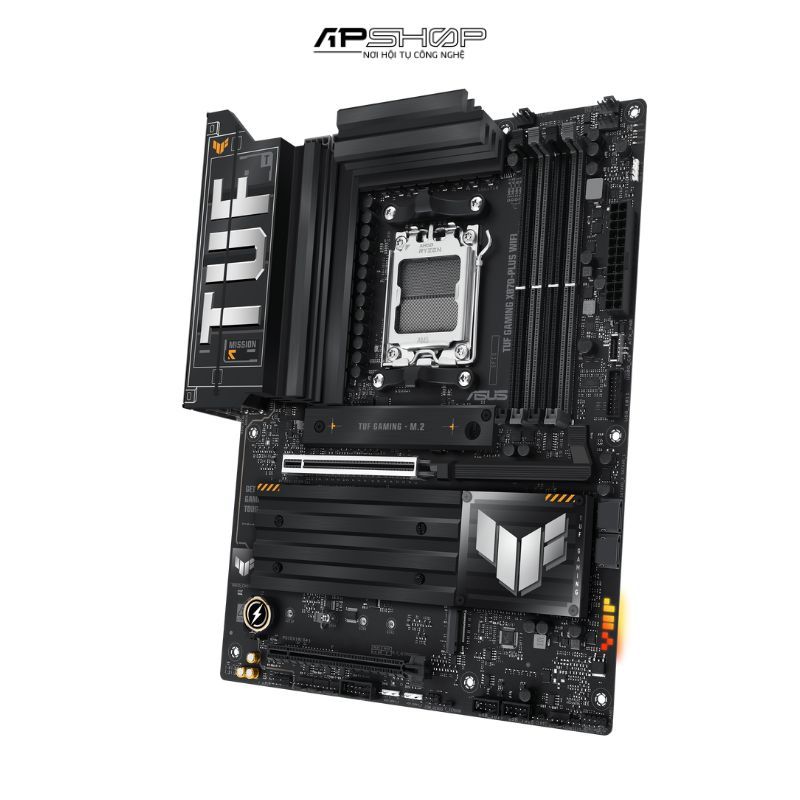

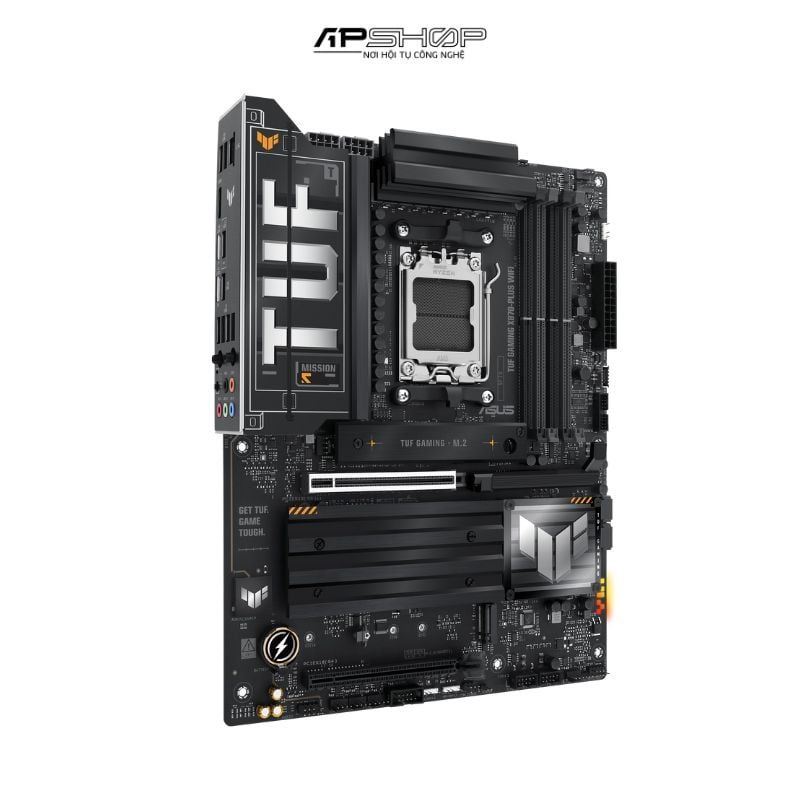

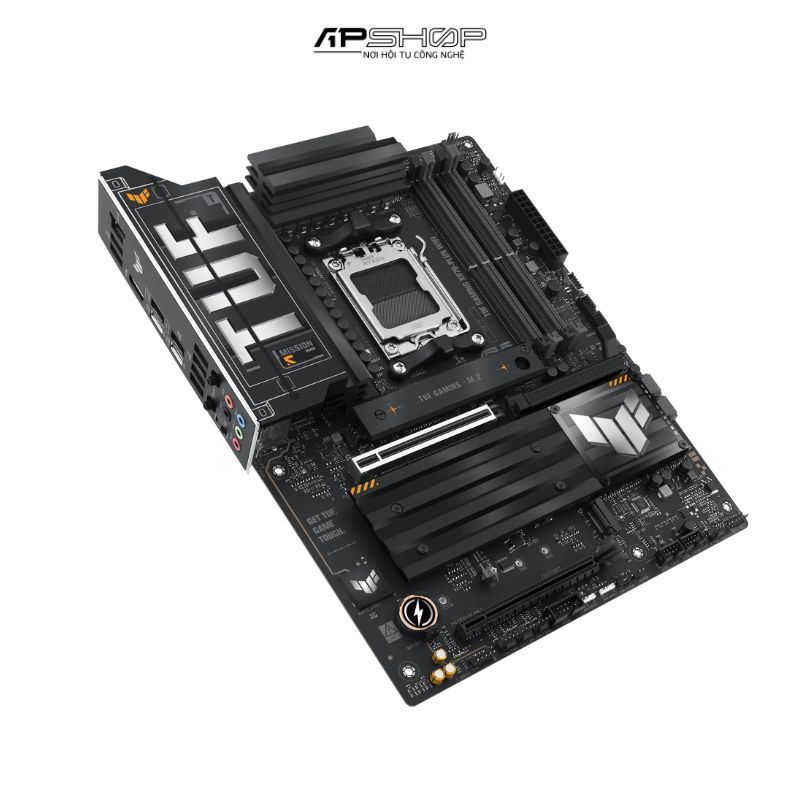

Maiboard Asus TUF GAMING X870-PLUS WIFI

Thương hiệu: ASUS
SKU: SP008642

9,990,000₫

Số lượng

Cần hàng cho dự án gọi ngay 0938 975 268 (8h - 22h)

Bạn đang phân vân về sản phẩm Mainboard Asus

Sản phẩm liên quan

CHI TIẾT SẢN PHẨM
THÔNG SỐ KỸ THUẬT
Chính sách trả góp

Maiboard Asus TUF GAMING X870-PLUS WIFI

CPU: Hỗ trợ ổ cắm AMD Socket AM5 cho AMD Ryzen™ 9000, 8000, và 7000 Series.

Chipset: AMD X870.

Memory: 4 khe DIMM, tối đa 192GB, DDR5, hỗ trợ đến 8000+MT/s (OC) với các bộ xử lý Ryzen™ 9000, 8000, và 7000 Series.

Graphics: 1 cổng HDMI™ và 2 cổng USB4® hỗ trợ xuất tín hiệu qua USB Type-C®.

Expansion Slots: 1 khe PCIe 5.0 x16 và 1 khe PCIe 4.0 x16, tùy thuộc vào loại CPU.

Đọc thêm

CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
	ECC and Non-ECC, Un-buffered DIMM*
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI™ port**
	2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
	AMD X870 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)****
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	*** Specifications vary by CPU types.
	**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
	AMD Ryzen™ 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot not support
	AMD X870 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
	2 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supported by AMD Ryzen™ 9000 series CPU.
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3A
	** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback*
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

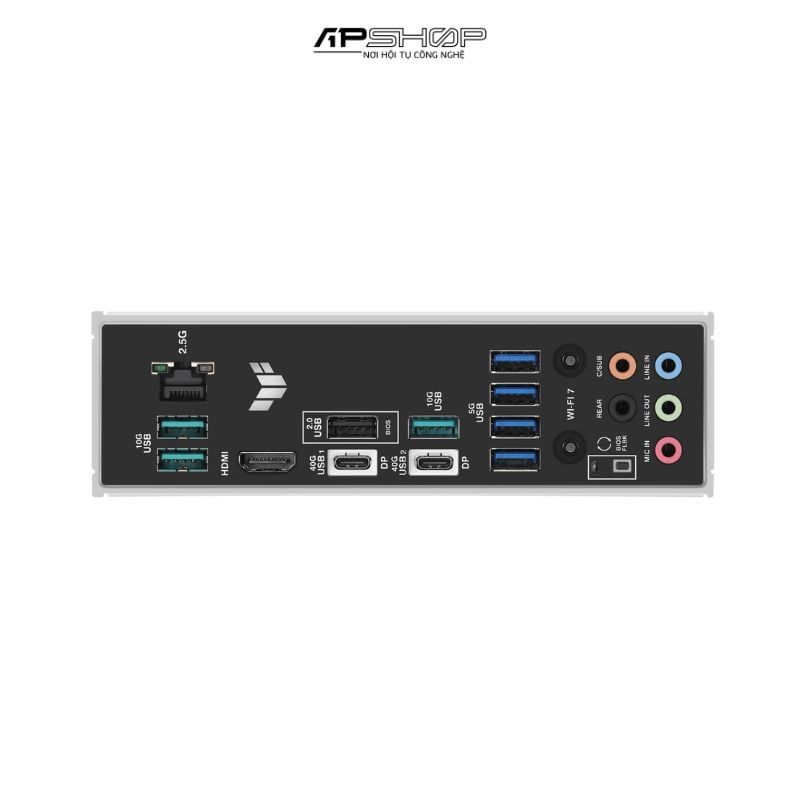

Back Panel I/O Ports	2 x USB4® (40Gbps) (2 x USB Type-C®)
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	4 x M.2 slots (Key M)
	2 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thermal Sensor header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with SPS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsinks
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
	Front Panel USB 20Gbps with PD Fast Charge Support
	- Support: up to 30W fast charging and USB Wattage Watcher
	- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
	- Compatible with PD3.0
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

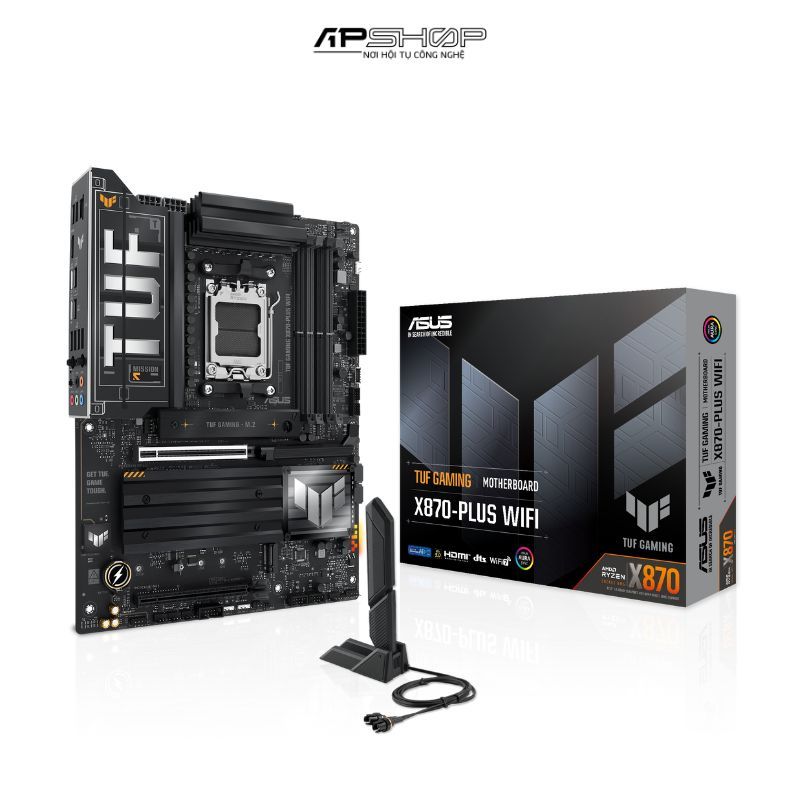

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	2 x M.2 rubber packages
	1 x Screw package for M.2 SSD
	1 x TUF GAMING sticker
	Documentation
	1 x Quick start guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Đọc thêm

Mua hàng trả góp 0% lãi xuất tại AP Shop: Lấy hàng trước- trả tiền sau được triển khai lần đầu tiên tại AP SHOP gaming gear nhân dịp kỉ niệm 10 năm ngày thành lập doanh nghiệp.

Với mong muốn mang đến cho khách hàng những trải nghiệm dịch vụ tốt nhất, chương trình trả góp 0% được áp dụng trên tất cả các danh mục sản phẩm có giá bán trên 3 triệu đồng: gaming gear, PC gaming, laptop gaming, bàn ghế chơi game...

Bạn có thể tiến hành mua sắm thỏa thích ngay tại cửa hàng chúng tôi hoặc đăng kí dịch vụ vận chuyển miễn phí nếu bạn ở xa. Đến với chúng tôi, bạn sẽ chỉ mất vài phút để sở hữu cho mình những sản phẩm gaming gear chất lượng tốt nhất.

Với ưu đãi trả góp 0% lãi xuất tại AP Shop – bạn có thể:

Mua ngay những gì mình thích với mức trả trước 0 đồng

Cơ hội nhận thêm những quà tặng hấp dẫn

Tiết kiệm chi phí

Thủ tục nhanh gọn, đơn giản

Hỗ trợ mua sắm online và offline tại cửa hàng

Dịch vụ mua sắm trả góp của AP Shop được liên kết thông qua kênh trả góp hàng đầu tại Việt Nam Mpos, bạn hoàn toàn yên tâm về uy tín và độ tin cậy.

Hình ảnh sản phẩm

Cổng thanh toán thích hợp

Chúng tôi liên kết với hơn 18 ngân hàng phát hành thẻ uy tín tại Việt Nam cho phép chủ thẻ mua sắm trả góp 0% tại cửa hàng.

Quy trình mua bán hoàn toàn tối ưu

Bạn chỉ cần sở hữu thẻ Visa của 1 trong hơn 18 ngân hàng mà AP Shop đã liên kết, giao dịch của bạn sẽ được thực hiện nhanh chóng không phải qua trung gian xét duyệt.

Qúa trình trả góp vô cùng tiện lợi

Người mua hàng chỉ cần thanh toán trả góp hàng tháng trực tiếp cho ngân hàng phát hành thẻ tín dụng. Trả góp 0% lãi suất chính là giải pháp tối ưu mang đến sự thoải mái và tiện ích khi mua sắm của mọi khách hàng.

Hình ảnh sản phẩm

LỢI ÍCH CỦA KHÁCH HÀNG KHI TRẢ GÓP QUA MPOS - Apshop

TRẢ GÓP LAPTOP HP PAVILION GAMING 15 CX 0178TX

Giá bán: 28,600,000₫

	Trả góp 0% tại AP Shop (chưa bao gồm phí chuyển đổi của ngân hàng)
Số tiền cần trả trước	0 VNĐ
Kỳ hạn trả góp	Tùy chọn (3-6-9-12 tháng)
Trả mỗi tháng	2.383.333VNĐ (Đối với kỳ hạn 12 tháng và chưa bao gồm phí chuyển đổi của ngân hàng)
Lãi suất tháng	0%
Tổng tiền phải trả	28.600.000VNĐ
Chênh lệch so với giá bán	0 đồng
Giấy tờ, thủ tục cần có	Thẻ tín dụng

Cách đặt mua:

Bước 1: Click Tại đây để chọn sản phẩm

Bước 2: Bấm vào mua trả góp, chọn gói trả góp phù hợp và điền thông tin.

Bước 3: Hoàn tất đặt hàng.

Để được hỗ trợ thêm những thông tin chi tiết về chương trình, vui lòng liên hệ:

Mua hàng: 0938 975 268 - Bảo hành: 0902 390 389

Email: lienhe@apshop.vn

Hình ảnh sản phẩm

Đọc thêm

THÔNG SỐ KỸ THUẬT

CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
	ECC and Non-ECC, Un-buffered DIMM*
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI™ port**
	2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
	AMD X870 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)****
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	*** Specifications vary by CPU types.
	**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
	AMD Ryzen™ 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot not support
	AMD X870 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
	2 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supported by AMD Ryzen™ 9000 series CPU.
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3A
	** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback*
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

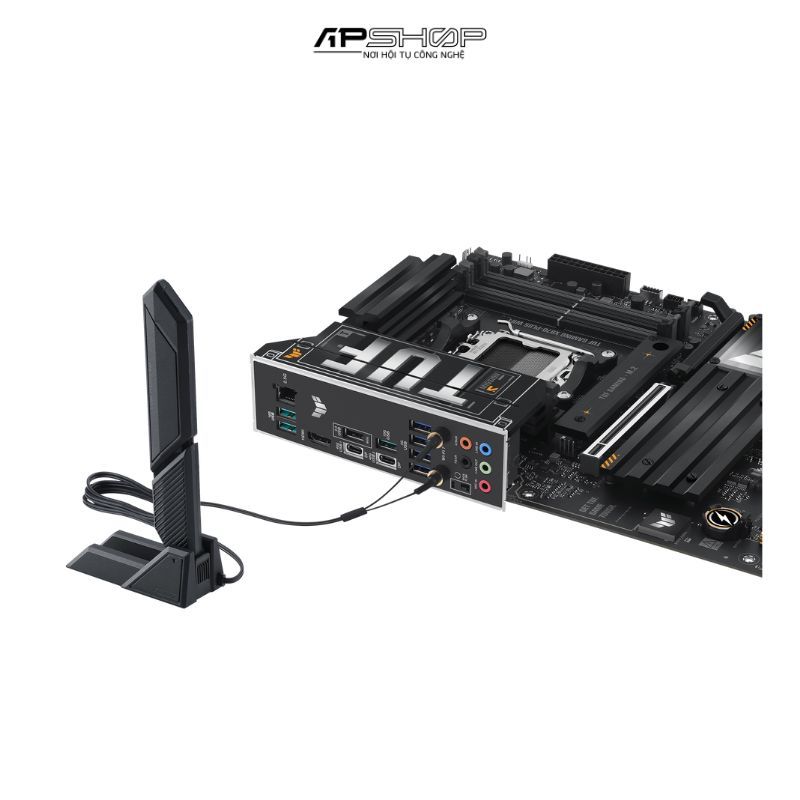

Back Panel I/O Ports	2 x USB4® (40Gbps) (2 x USB Type-C®)
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	4 x M.2 slots (Key M)
	2 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thermal Sensor header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with SPS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsinks
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
	Front Panel USB 20Gbps with PD Fast Charge Support
	- Support: up to 30W fast charging and USB Wattage Watcher
	- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
	- Compatible with PD3.0
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	2 x M.2 rubber packages
	1 x Screw package for M.2 SSD
	1 x TUF GAMING sticker
	Documentation
	1 x Quick start guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Xem thêm cấu hình chi tiết

CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
	ECC and Non-ECC, Un-buffered DIMM*
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI™ port**
	2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
	AMD X870 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)****
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	*** Specifications vary by CPU types.
	**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
	AMD Ryzen™ 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot not support
	AMD X870 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
	2 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supported by AMD Ryzen™ 9000 series CPU.
	** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
	*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3A
	** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback*
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports	2 x USB4® (40Gbps) (2 x USB Type-C®)
	3 x USB 10Gbps ports (3 x Type-A)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	4 x M.2 slots (Key M)
	2 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thermal Sensor header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with SPS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsinks
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
	Front Panel USB 20Gbps with PD Fast Charge Support
	- Support: up to 30W fast charging and USB Wattage Watcher
	- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
	- Compatible with PD3.0
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	2 x M.2 rubber packages
	1 x Screw package for M.2 SSD
	1 x TUF GAMING sticker
	Documentation
	1 x Quick start guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Danh mục sản phẩm

Danh mục sản phẩm

Maiboard Asus TUF GAMING X870-PLUS WIFI

Quà tặng và ưu đãi kèm theo

Sản phẩm liên quan

Maiboard Asus TUF GAMING X870-PLUS WIFI

Với ưu đãi trả góp 0% lãi xuất tại AP Shop – bạn có thể:

Cổng thanh toán thích hợp

Quy trình mua bán hoàn toàn tối ưu

Qúa trình trả góp vô cùng tiện lợi

LỢI ÍCH CỦA KHÁCH HÀNG KHI TRẢ GÓP QUA MPOS - Apshop

THÔNG SỐ KỸ THUẬT

Đã bán

Giỏ hàng

Báo giá

Đặt ngay
