GIGABYTE Z490M GAMING X
Intel® Z490M GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen2 Type-C™, M.2 with Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Design, RGB FUSION 2.0

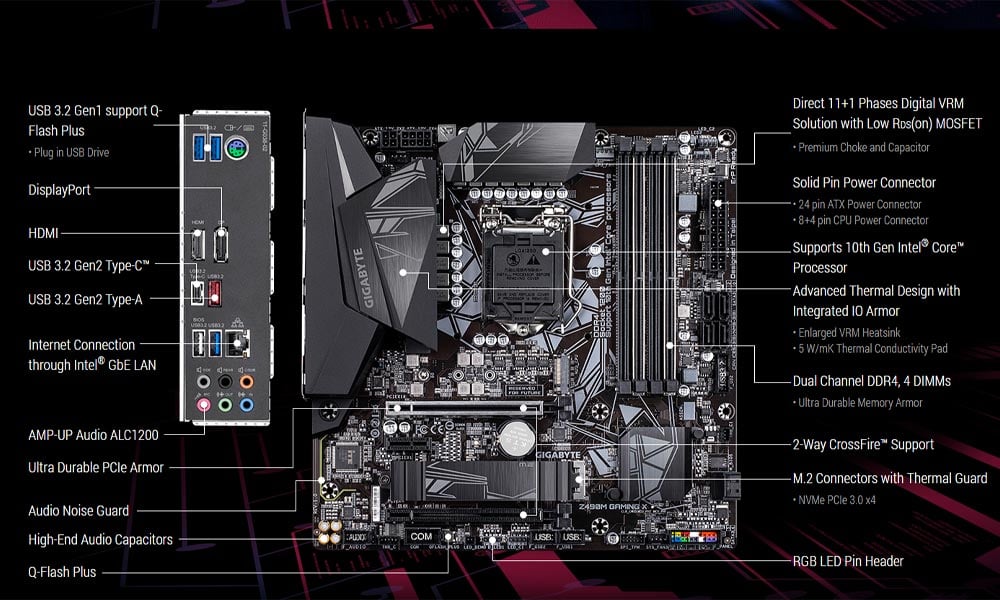

Mô tả chi tiết GIGABYTE Z490M GAMING X

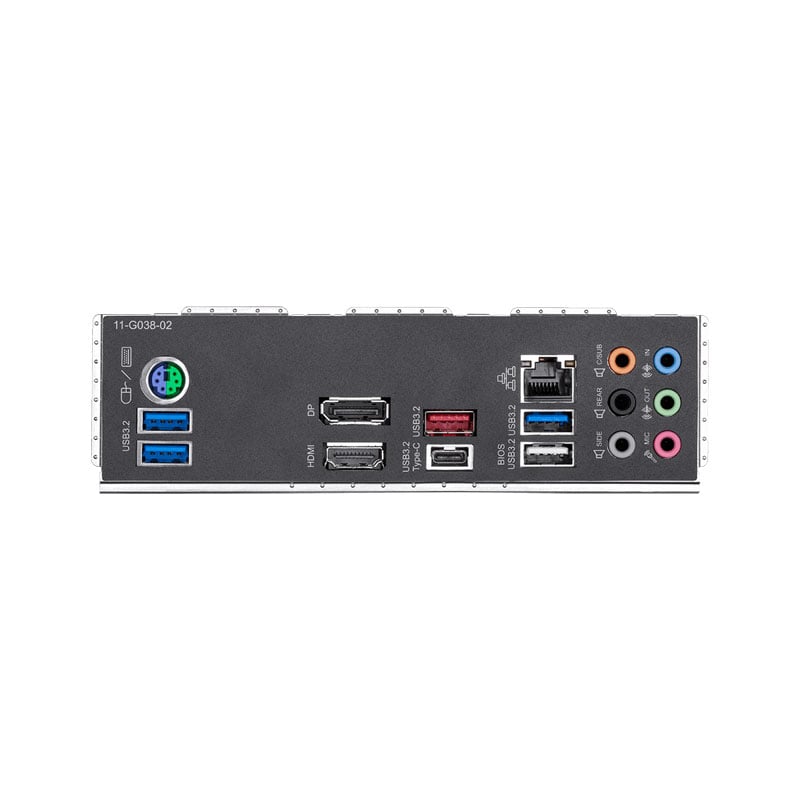

Cổng kết nối mặt sau GIGABYTE Z490M GAMING X
THÔNG SỐ KỸ THUẬT
CHIPSET: Intel® Z490 Express Chipset
Integrated Graphics Processor-Intel® HD Graphics support:
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Intel® GbE LAN chip (1000 Mbit/100 Mbit)
WIRELESS COMMUNICATION MODULE
Intel® Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
BACK I/O PORTS
INTERNAL I/O PORTS
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Windows® 10 64-bit
Micro ATX Form Factor
24.4 cm x 24.4 cm
