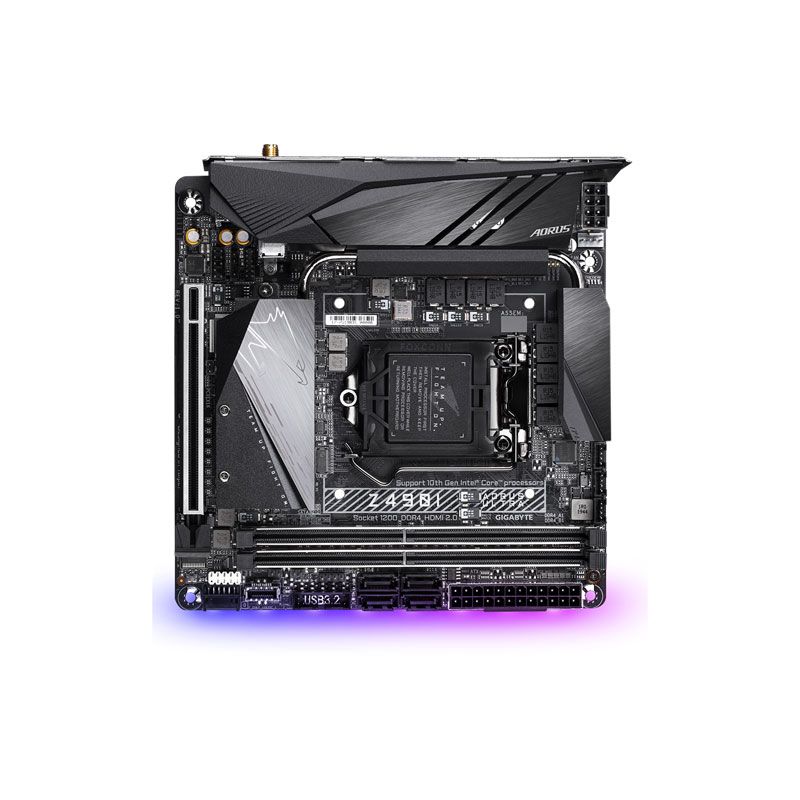

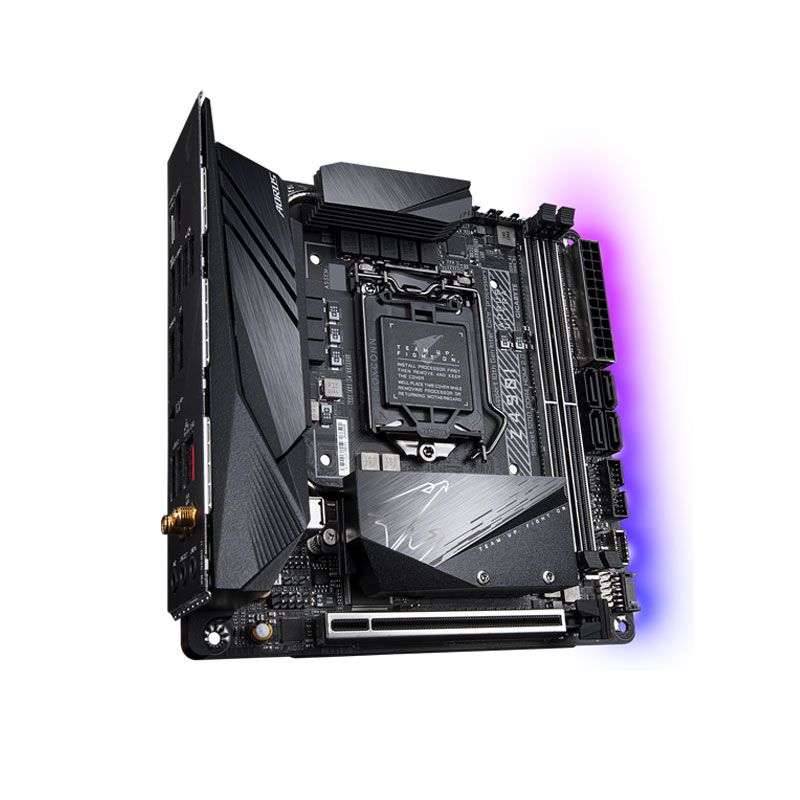

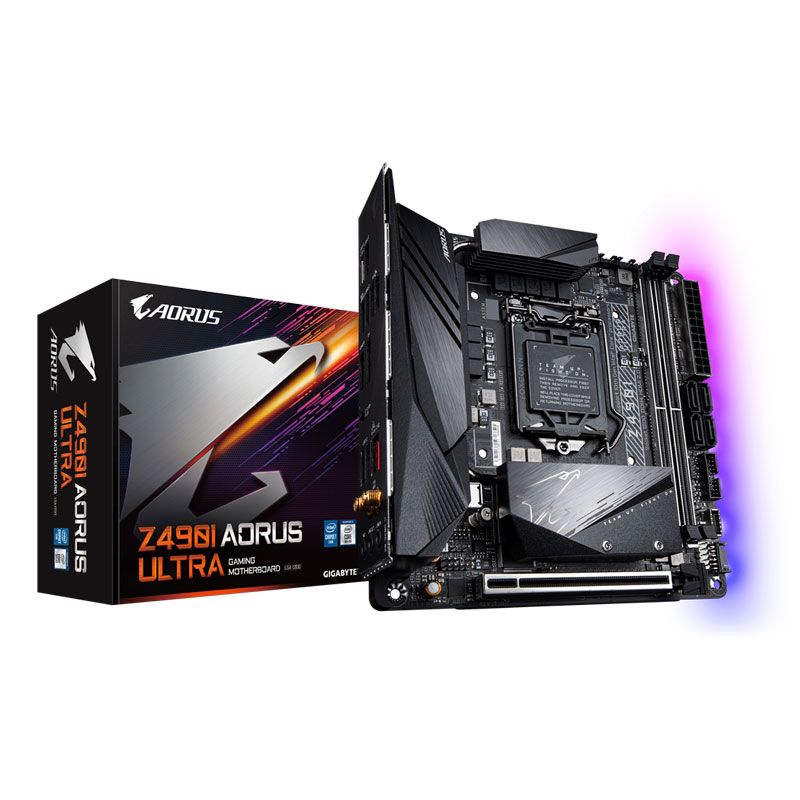

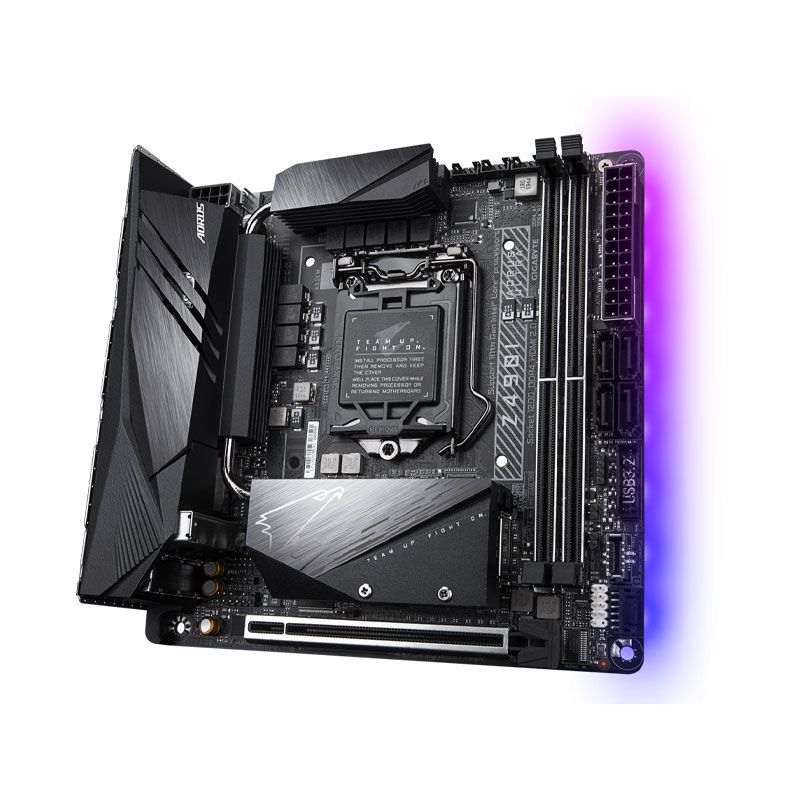

GIGABYTE Z490I AORUS ULTRA

Rê chuột lên hình để phóng to

GIGABYTE Z490I AORUS ULTRA

  • SKU: GA-Z490I AORUS ULTRA
  • Thương hiệu: Gigabyte

7,300,000₫

(Đã bao gồm 10% VAT)

Bảo hành: 36 tháng

Trả góp 0%

CAM KẾT BÁN HÀNG :

  • Sản phẩm 100% chính hãng.
  • Sản phẩm mới 100%.
  • Hoàn tiền 120%. Phát hiện hàng. giả
  • Hỗ trợ nhanh khi cần.
  • Mua hàng nhanh : 0938 975 268.

GIAO HÀNG :

  • Nội thành HCM 30 đến 120 phút.
  • Tỉnh thành khác - Từ 1 - 3 ngày.
  • Thanh toán khi nhận hàng
  • Xem hàng trước khi thanh toán
Liên kết với chúng tôi

SẢN PHẨM CÓ THỂ MUA CÙNG

ASUS ROG Z490I AORUS ULTRA


Z490I AORUS ULTRA(1.0)Z490I AORUS ULTRA(1.0)Z490I AORUS ULTRA(1.0)Z490I AORUS ULTRA(1.0)Z490I AORUS ULTRA(1.0)

Intel® Z490 Mini-ITX AORUS Motherboard with Direct 8 Phase Digital VRM Design, Advanced Thermal Solution, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, HDMI 2.0, RGB FUSION 2.0



Mô tả tổng quan GIGABYTE Z490I AORUS ULTRA

Cổng kết nối mặt sau GIGABYTE Z490I AORUS ULTRA



THÔNG SỐ KỸ THUẬT
CPU

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

CHIPSET: Intel® Z490 Express Chipset

MEMORY

Intel® Core™ i9/i7 processors:

Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

GRAPHICS

Integrated Graphics Processor+PARADE PS175 chip:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 512 MB

EXPANSION SLOTS

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

STORAGE

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU)

1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

LAN

Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

WIRELESS COMMUNICATION MODULE

Intel® Wi-Fi 6 AX201

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.1

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

AUDIO

Realtek® ALC1220-VB codec

* The back panel line out jack supports DSD audio.

Support for DTS® Ultra

High Definition Audio

2/4/5.1/7.1-channel

* To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

USB PORTS

Chipset:

1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)

BACK I/O PORTS

1 x DisplayPort

1 x HDMI port

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

INTERNAL I/O PORTS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C™ header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Clear CMOS jumper

1 x chassis intrusion header

H/W MONITORING

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

UNIQUE FEATURES

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

BUNDLED SOFTWARE

Norton® Internet Security (OEM version)

cFosSpeed

XSplit Gamecaster + Broadcaster (12 months license)

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

Mini- ITX Form Factor

17.0 cm x 17.0 cm
