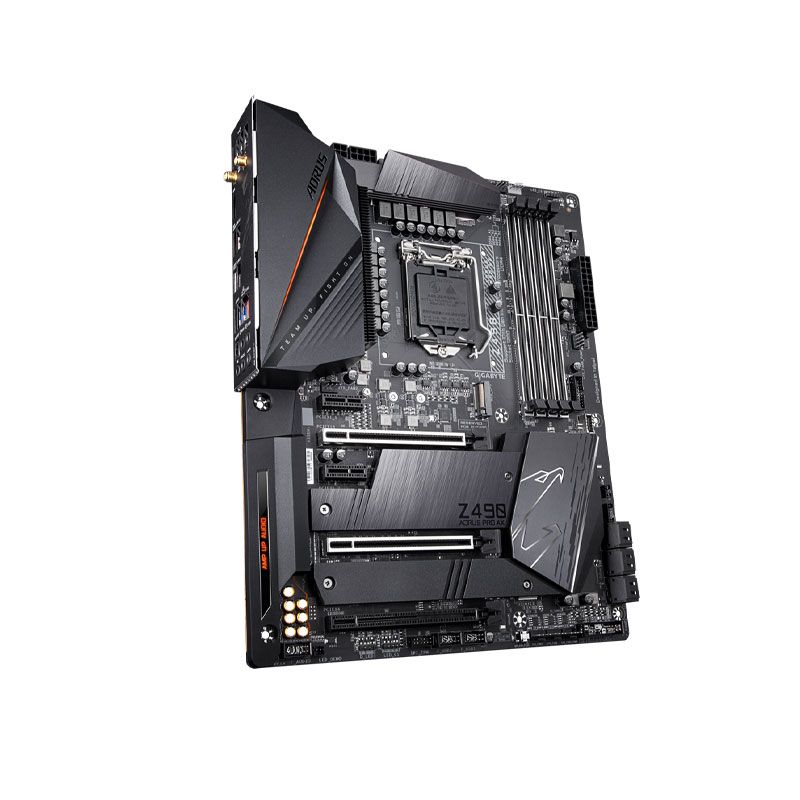

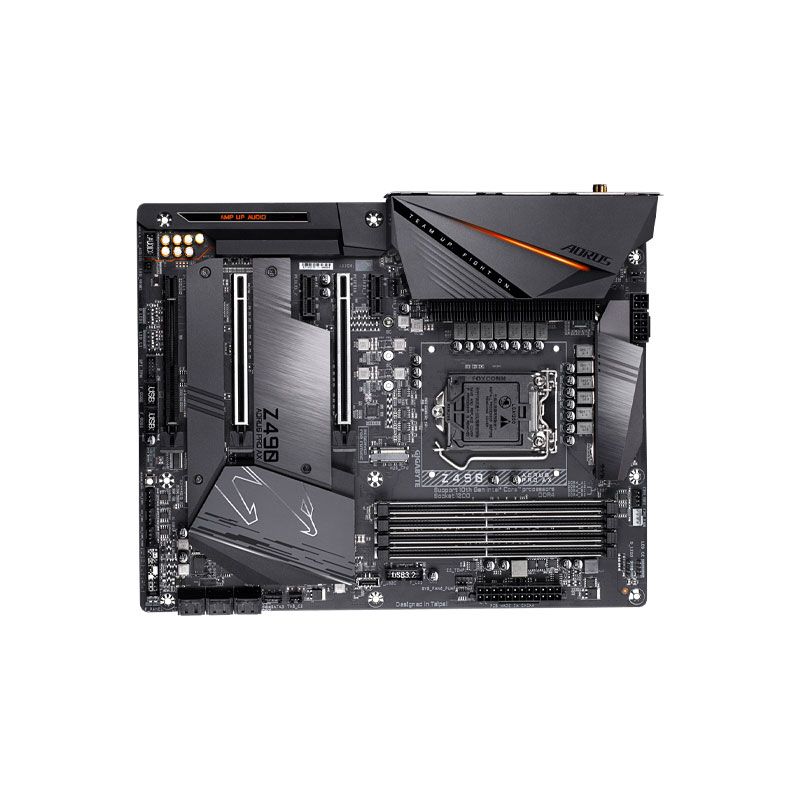

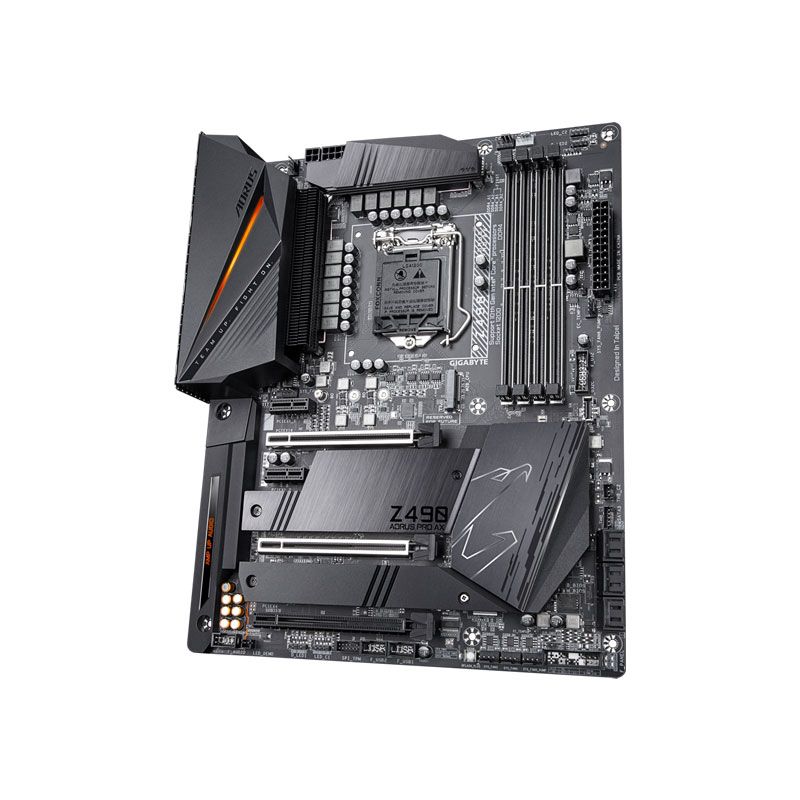

GIGABYTE Z490 AORUS PRO AX

Rê chuột lên hình để phóng to

GIGABYTE Z490 AORUS PRO AX

0₫

(Đã bao gồm 10% VAT)

Bảo hành: 36 tháng

Trả góp 0%

CAM KẾT BÁN HÀNG :

  • Sản phẩm 100% chính hãng.
  • Sản phẩm mới 100%.
  • Hoàn tiền 120%. Phát hiện hàng. giả
  • Hỗ trợ nhanh khi cần.
  • Mua hàng nhanh : 0938 975 268.

GIAO HÀNG :

  • Nội thành HCM 30 đến 120 phút.
  • Tỉnh thành khác - Từ 1 - 3 ngày.
  • Thanh toán khi nhận hàng
  • Xem hàng trước khi thanh toán
Liên kết với chúng tôi

SẢN PHẨM CÓ THỂ MUA CÙNG

GIGABYTE Z490 AORUS PRO AX


Intel® Z490 AORUS Motherboard with Direct 12 Phases Digital VRM Design, Comprehensive Thermal Solution with Fins-Array II, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, RGB FUSION 2.0



Mô tả chi tiết GIGABYTE Z490 AORUS PRO AX

Cổng kết nối GIGABYTE Z490 AORUS PRO AX

THÔNG SỐ KỸ THUẬT
CPU

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package.

L3 cache varies with CPU

CHIPSET: Intel® Z490 Express Chipset

MEMORY

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

* To support 3200 MHz, you must use XMP memory.

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

GRAPHICS

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

EXPANSION SLOTS

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

STORAGE

2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

LAN

Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

WIRELESS COMMUNICATION MODULE

Intel® Wi-Fi 6 AX201

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.1

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

AUDIO

Realtek® ALC1220-VB codec

* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

MULTI-GRAPHICS TECHNOLOGY

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB PORTS

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

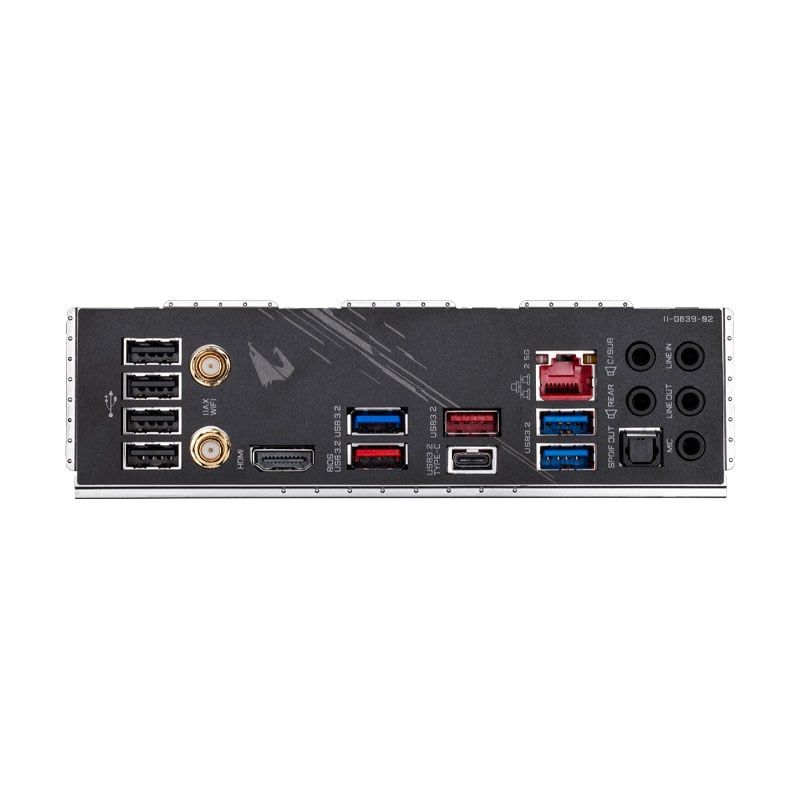

BACK I/O PORTS

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

INTERNAL I/O PORTS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x Q-Flash Plus button

H/W MONITORING

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

UNIQUE FEATURES

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

BUNDLED SOFTWARE

Norton® Internet Security (OEM version)

cFosSpeed

XSplit Gamecaster + Broadcaster (12 months license)

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

Mini- ITX Form Factor

30.5 cm x 24.4 cm
