GIGABYTE Z490 AORUS ELITE

Rê chuột lên hình để phóng to

GIGABYTE Z490 AORUS ELITE

6,190,000₫

(Đã bao gồm 10% VAT)

Bảo hành: 36 tháng

Trả góp 0%

CAM KẾT BÁN HÀNG :

  • Sản phẩm 100% chính hãng.
  • Sản phẩm mới 100%.
  • Hoàn tiền 120%. Phát hiện hàng. giả
  • Hỗ trợ nhanh khi cần.
  • Mua hàng nhanh : 0938 975 268.

GIAO HÀNG :

  • Nội thành HCM 30 đến 120 phút.
  • Tỉnh thành khác - Từ 1 - 3 ngày.
  • Thanh toán khi nhận hàng
  • Xem hàng trước khi thanh toán
Liên kết với chúng tôi

SẢN PHẨM CÓ THỂ MUA CÙNG

Z490 AORUS ELITE

Intel® Z490 AORUS Motherboard with Direct 12 Phase Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, 2.5GbE LAN, RGB FUSION 2.0

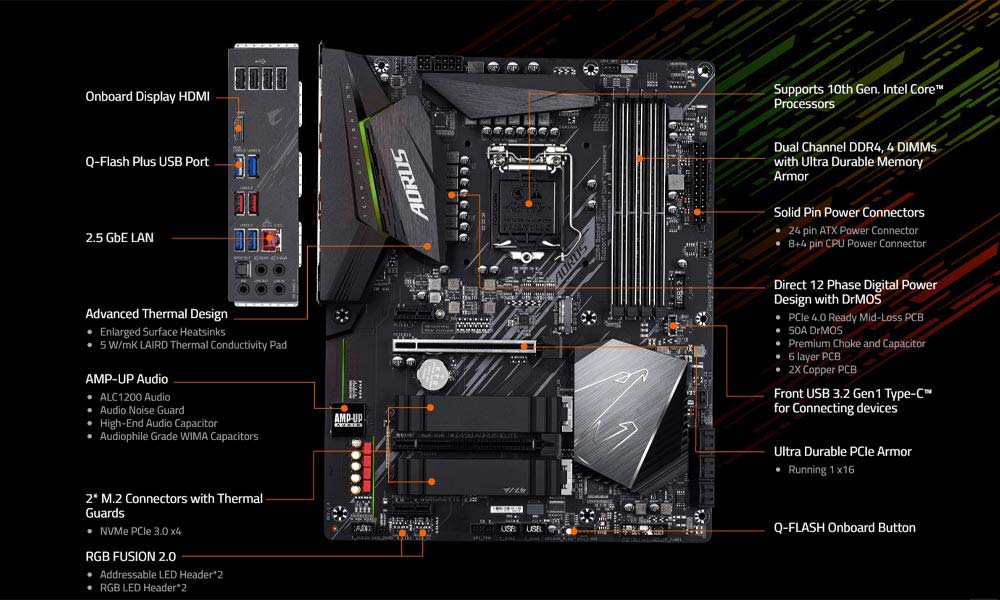

Thông tin mô tả GIGABYTE Z490 AORUS ELITE

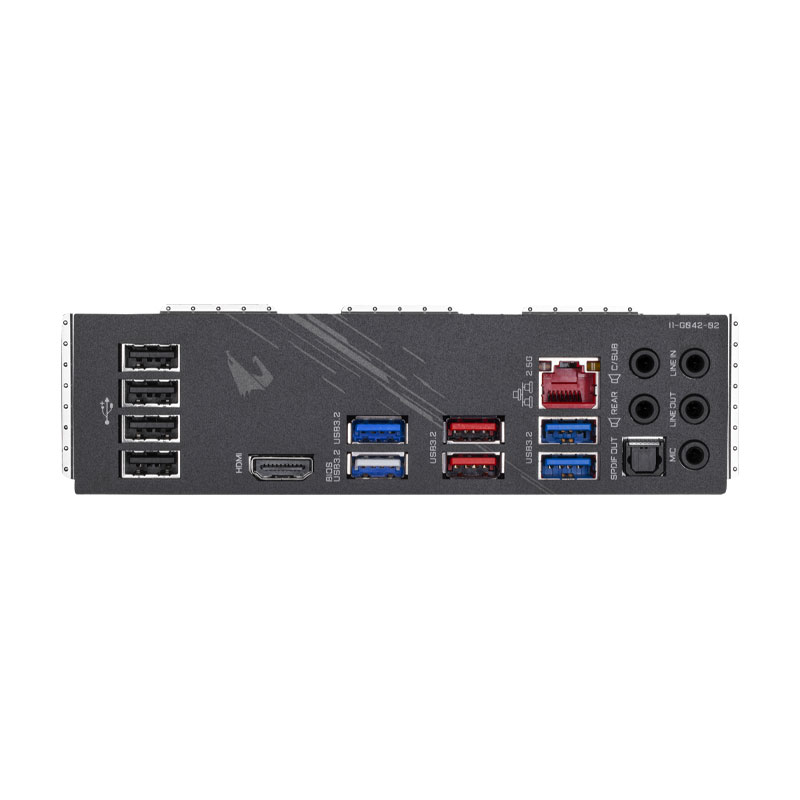

Cổng kết nối mặt sau GIGABYTE Z490 AORUS ELITE

THÔNG SỐ KỸ THUẬT
CPU

  • Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  • L3 cache varies with CPU

CHIPSET: Intel® Z490 Express Chipset

MEMORY

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

* To support 3200 MHz, you must use XMP memory.

  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

GRAPHICS

Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

EXPANSION SLOTS

  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

STORAGE

  • 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  • Intel® Optane™ Memory Ready

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

WIRELESS COMMUNICATION MODULE

Intel® Wi-Fi AC 9462:

  • Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5
  • Support for 1x1 11ac wireless standard and up to 433 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

AUDIO

  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out

MULTI-GRAPHICS TECHNOLOGY

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies.

USB PORTS

Chipset:

  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

BACK I/O PORTS

  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x HDMI port
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks

INTERNAL I/O PORTS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button

H/W MONITORING

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • Whether the fan speed control function is supported will depend on the fan you install.

UNIQUE FEATURES

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features

BUNDLED SOFTWARE

  • Norton® Internet Security (OEM version)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

Mini- ITX Form Factor

30.5 cm x 24.4 cm
