ASUS TUF GAMING Z490 PLUS

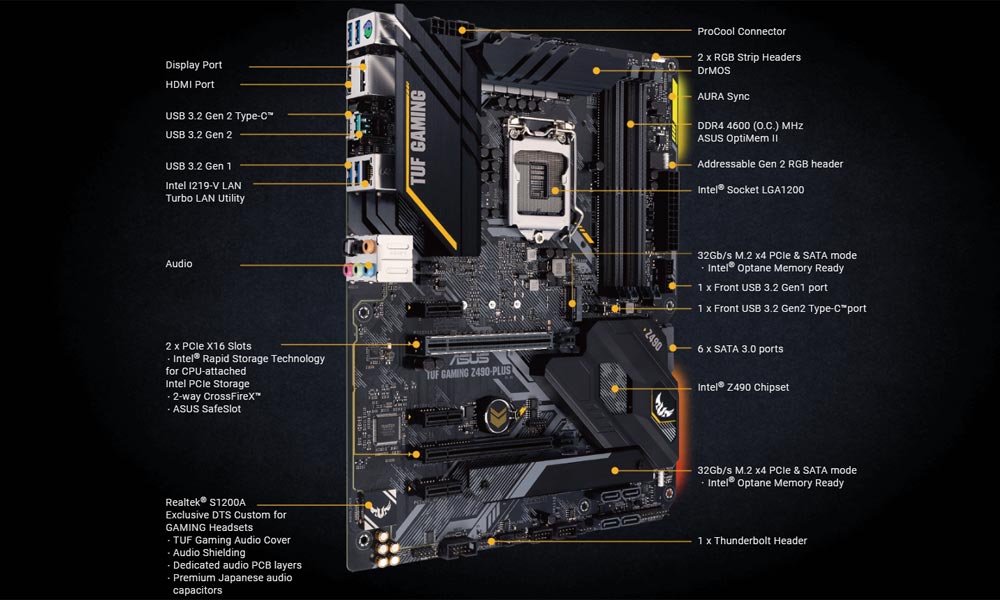

Intel® Z490 (LGA 1200) ATX gaming motherboard with M.2, 14 DrMOS power stages, Intel® 1Gb LAN, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderbolt™ 3 support, and Aura Sync RGB lighting.




THÔNG SỐ KỸ THUẬT

SẢN PHẨM: Mainboard - Bo mạch chủ

TÊN HÃNG: ASUS

MODEL: ASUS TUF GAMING Z490 PLUS

CPU: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

CHIPSET: Intel® Z490

MEMORY:

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

GRAPHIC:

Integrated Graphics Processor

1 x DisplayPort 1.4 **

1 x HDMI 1.4b

*Graphics specifications may vary between CPU types.

**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.

MULTI-GPU SUPPORT: Supports AMD 2-Way CrossFireX Technology

EXPANSION SLOTS:

Intel® 10th Gen Processors

1 x PCIe 3.0 x16 (x16 mode)

Intel® Z490 Chipset

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe x1

STORAGE:

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® Z490 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

LAN:

Intel® I219-V 1Gb Ethernet

TUF LANGuard

BLUETOOTH:

Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

AUDIO:

Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB PORTS:

Rear USB Port ( Total 6 )

2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Front USB Port ( Total 7 )

1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)

1 x USB 3.2 Gen 1 port(s)(2 x Type-A)

2 x USB 2.0 port(s)(4 x Type-A)

SOFTWARE FEATURES:

ASUS Exclusive Software

Armoury Crate

- Aura Sync

AI Suite 3:

- Performance And Power Saving Utility

Turbo V Evo

EPU

Digi+ VRM

Fan Xpert 4

System information

- EZ update

AI Charger

ASUS Turbo LAN

DTS Custom for GAMING Headsets

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

OPERATING SYSTEM SUPPORT: Windows® 10 64-bit

ASUS Special Features:

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Stylish heatsink

ASUS EZ DIY

- Procool

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header

BACK I/O PORTS

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

1 x Optical S/PDIF out

5 x Audio jack(s)

INTERNAL I/O PORTS

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3

6 x SATA 6Gb/s connector(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x COM port header

ACCESSORIES

User's Manual

1 x ASUS Fan Holder

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x TUF GAMING Sticker

1 x TUF Certification card(s)

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY: WOL by PME, PXE

FORM FACTOR:

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
