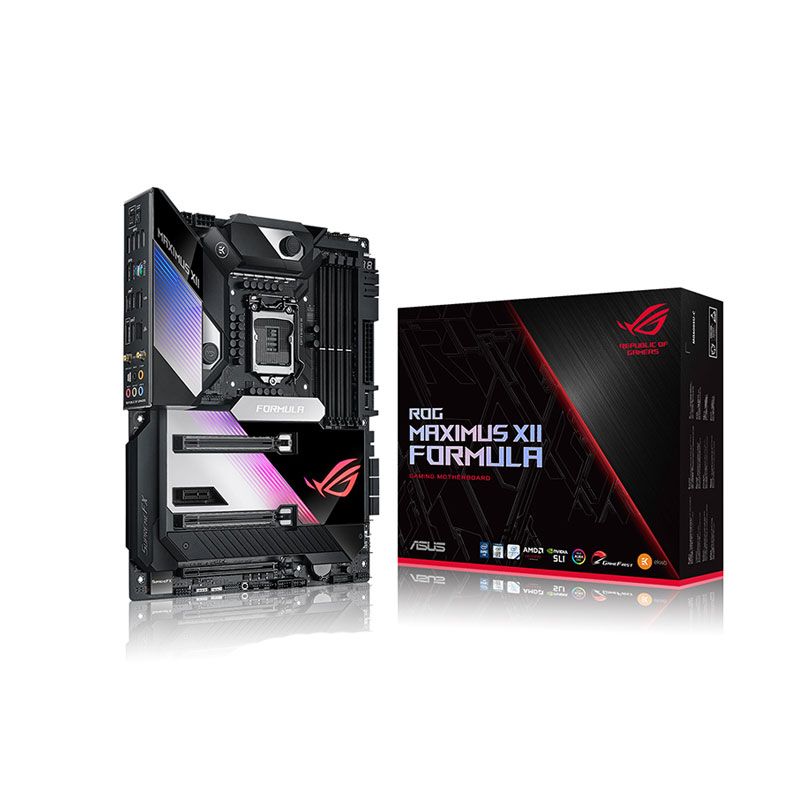

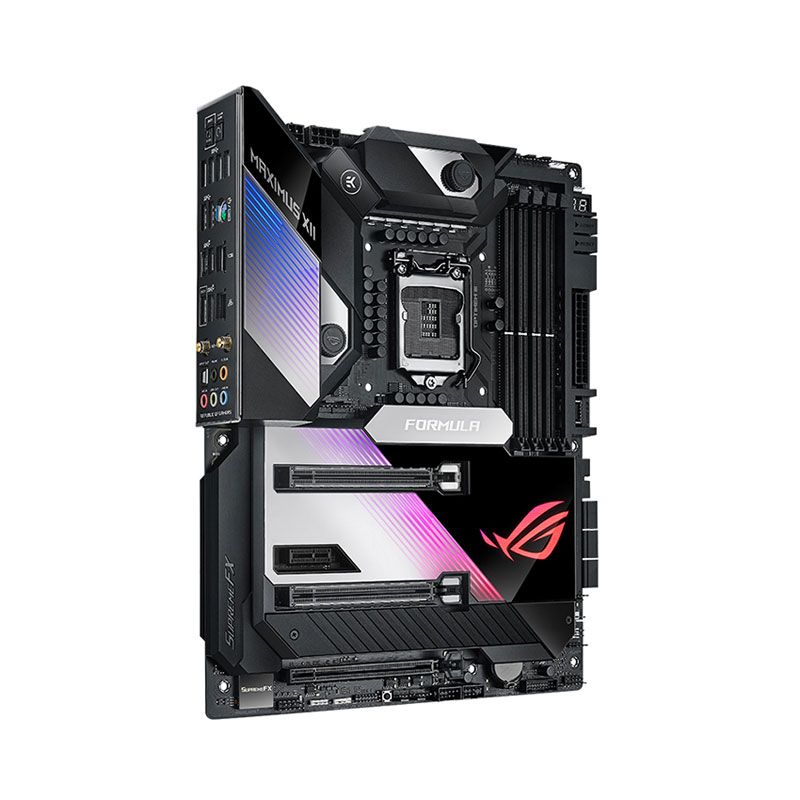

ASUS ROG Z490 MAXIMUS XII FORMULA

Rê chuột lên hình để phóng to

ASUS ROG Z490 MAXIMUS XII FORMULA

  • SKU: 90MB1370-M0UAY0
  • Thương hiệu: Asus ROG

13,220,000₫

(Đã bao gồm 10% VAT)

Bảo hành: 36 tháng

Chát Now

CAM KẾT BÁN HÀNG :

  • Sản phẩm 100% chính hãng.
  • Sản phẩm mới 100%.
  • Hoàn tiền 120%. Phát hiện hàng. giả
  • Hỗ trợ nhanh khi cần.
  • Mua hàng nhanh : 0938 975 268.

GIAO HÀNG :

  • Nội thành HCM 30 đến 120 phút.
  • Tỉnh thành khác - Từ 1 - 3 ngày.
  • Thanh toán khi nhận hàng
  • Xem hàng trước khi thanh toán
Liên kết với chúng tôi

SẢN PHẨM CÓ THỂ MUA CÙNG

ASUS ROG Z490 MAXIMUS XII FORMULA



ASUS ROG Z490 MAXIMUS XII FORMULA

Extreme Power & Performance

Cổng kết nối ASUS ROG Z490 MAXIMUS XII FORMULA

Phụ kiện ASUS ROG Z490 MAXIMUS XII FORMULA

THÔNG SỐ KỸ THUẬT


CPU

  • Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: Intel® Z490

MEMORY

  • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem III

MULTI-GPU SUPPORT

  • Supports NVIDIA 2-Way SLI® Technology
  • Supports AMD 3-Way CrossFireX™ Technology

EXPANSION SLOTS

Intel® 10th Gen Processors

  • 2 x PCIe 3.0 x16 (x16 or dual x8) *1

Intel® Z490 Chipset

  • 1 x PCIe 3.0 x16 (x4 mode) *2
  • 1 x PCIe 3.0 x1 *3

STORAGE

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® Z490 Chipset :

  • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
  • 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5
  • 6 x SATA 6Gb/s port(s)
  • 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*6
  • Support Raid 0, 1, 5, 10
  • Intel® Rapid Storage Technology supports
  • Intel® Optane™ Memory Ready

LAN

  • Intel® I225-V 2.5Gb Ethernet
  • Marvell® AQtion AQC107 10Gb Ethernet
  • ASUS LANGuard

WIRELESS DATA NETWORK

  • Intel® Wi-Fi 6 AX201
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports CNVI interface

BLUETOOTH: Bluetooth 5.1

AUDIO

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220

- Impedance sense for front and rear headphone outputs

- Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/192kHz playback

Audio Feature :

- SupremeFX Shielding™ Technology

- Gold-plated jacks

- Optical S/PDIF out port(s) at back panel

- Premium Japanese audio capacitors

- Audio Cover

USB PORTS

Rear USB Port ( Total 10 )

  • 4 x USB 3.2 Gen 2 port(s)(3 x Type-A + USB Type-CTM)
  • 6 x USB 3.2 Gen 1 port(s)(6 x Type-A)

Front USB Port ( Total 9 )

  • 1 x USB 3.2 Gen 2 front panel connector port(s)
  • 4 x USB 3.2 Gen 1 port(s)
  • 4 x USB 2.0 port(s)

SOFTWARE FEATURES

ROG Exclusive Software

- Mem Tweakit

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- BullGuard Internet Security (1-year full version)



ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

- 5-way Optimization with AI Overclocking

TPU

EPU

Digi+ Power Control

Fan Xpert 4

Turbo app

- EZ update

AI Charger

WinRAR



UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

ASUS SPECIAL FEATURES

ROG Extreme OC kit

- FlexKey button

- ReTry button

- Start button

ASUS Q-Design

- ASUS Q-Code

- ASUS Q-Connector

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

- CrossChill EK III

- Steel backplate

ASUS EZ DIY

- BIOS Flashback™ button

- Clear CMOS button

- Procool II

- Pre- mounted I/O shield

- SafeSlot

AURA Sync

- ROG Aura sync Armor

- Standard RGB header(s)

- Addressable Gen 2 RGB header(s)

LiveDash OLED 2"

BACK I/O PORTS

  • 1 x Intel® I225-V 2.5Gb Ethernet
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 4 x USB 3.2 Gen 2
  • 6 x USB 3.2 Gen 1
  • 1 x Optical S/PDIF out
  • 1 x Clear CMOS button(s)
  • 1 x USB BIOS FlashBack™ Button(s)
  • 1 x ASUS Wi-Fi Module
  • 5 x Gold-plated audio jacks
  • 1 x Aquantia AQC-107 10G LAN port

INTERNAL I/O PORTS

  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x H_AMP fan connector
  • 1 x W_PUMP+ connector
  • 1 x W_IN header
  • 2 x W_OUT header
  • 3 x W_FLOW header
  • 1 x AAFP connector
  • 2 x Aura RGB Strip Headers
  • 2 x Addressable Gen 2 header(s)
  • 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 3 x M.2 Socket 3
  • 6 x SATA 6Gb/s connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Thermal sensor connector(s)
  • 1 x ReTry button
  • 1 x System panel connector
  • 1 x USB 3.2 Gen 2 front panel connector
  • 1 x Speaker connector
  • 1 x Start button
  • 1 x FlexKey button

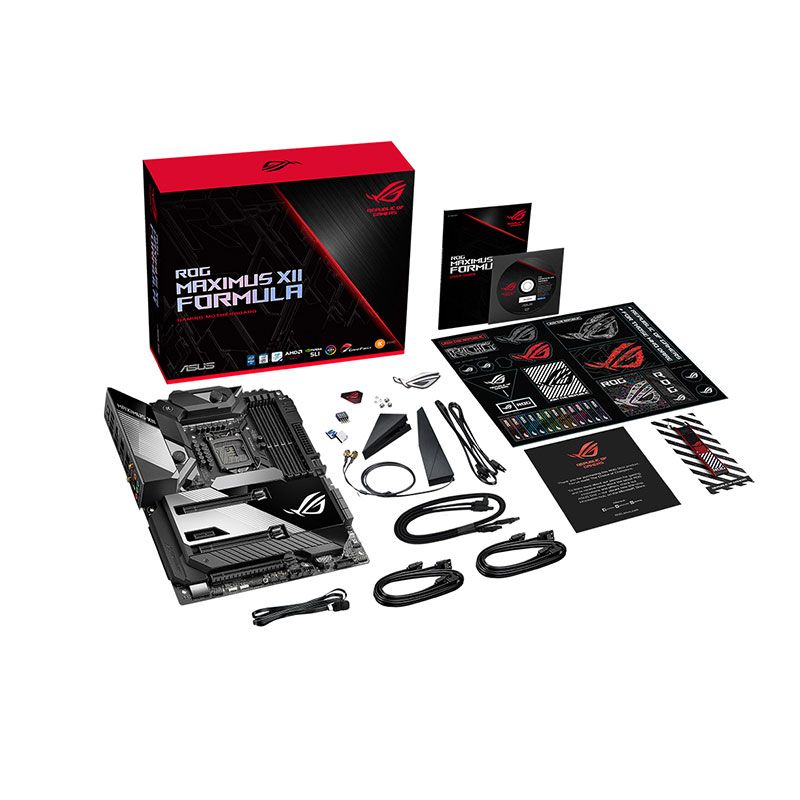

ACCESSORIES

User's manual

  • Addressable LED extension cable
  • 1 x ROG logo plate sticker
  • 4 x SATA 6Gb/s cable(s)
  • 2 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ROG big sticker
  • 1 x Q-Connector
  • 1 x Wi-Fi Antenna(s)
  • 1 x Extension Cable for RGB strips (40 cm)
  • 2 x ROG weave SATA 6G cable
  • 1 x ROG Thank you card
  • 1 ROG key chain

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME, PXE

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
