ASUS ROG STRIX Z490 G GAMING

ASUS ROG STRIX Z490 G GAMING
Z490 là Chipset mới nhất của Intel sử dụng cho các bộ vi xử lý Core i thế hệ 10 - Intel Comet Lake-S mới nhất. Được nâng cấp vượt trội từ số nhân tới số luồng, đặc biệt trên các bộ vi xử lý như Core i9-10900K hay Core i7-10700K yêu cầu bo mạch chủ phải có sự nâng cấp tương xứng.

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.
Bo mạch chủ ROG Strix Z490 G Gaming là dòng sản phẩm được kỳ vọng cao, tăng cường khả năng cung cấp năng lượng, thiết kế làm mát được tối ưu hóa và phần mềm ROG trực quan để giúp bạn tận dụng tối đa bộ xử lý Intel® Core™ thế hệ thứ 10 mới nhất.
ROG Strix Z490 G Gaming có tính thẩm mỹ cao, được lấy cảm hứng từ cyberpunk và bảng tên Strix được làm bằng thép không gỉ để nó trông hoàn hảo hơn.

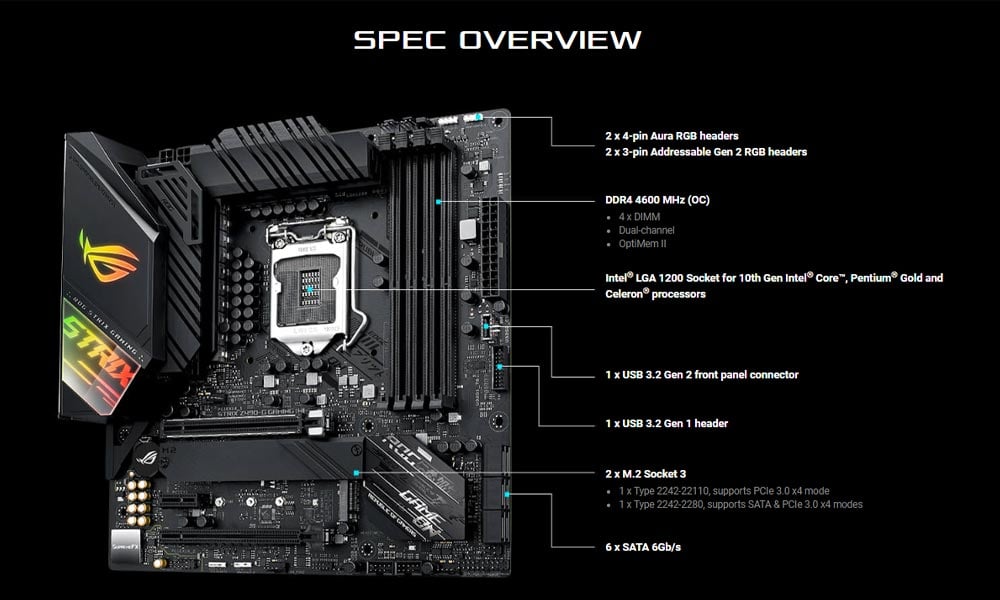

THÔNG SỐ KỸ THUẬT
CPU:
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
CHIPSET: Intel® Z490
MEMORY
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non- ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
MULTI-GPU SUPPORT
Supports AMD 2-Way CrossFireX Technology
GRAPHIC
Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
EXPANSION SLOTS
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (chế độ x16)
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (tối đa ở chế độ x4)
1 x PCIe 3.0 x1
STORAGE
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
WIRELESS DATA NETWORK
Hỗ trợ tần số kép 2.4/5 GHz
Intel® Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Hỗ trợ băng thông của kênh: HT20/HT40/HT80/HT160
Supports up to 2.4Gbps max data rate
Supports CNVI interface
BLUETOOTH: Bluetooth v5.1
AUDIO
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Premium Japanese audio capacitors
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB PORTS
Cổng USB sau ( Tổng cộng 8 )
2 cổng USB 3.2 Gen 2(1 x Kiểu A +1 x USB Kiểu CTM)
4 cổng USB 3.2 Gen 1(4 x Kiểu A)
2 cổng USB 2.0
Cổng USB trước ( Tổng cộng 7 )
1 cổng USB 3.2 Gen 2(1 x USB Kiểu CTM)
2 cổng USB 3.2 Gen 1(2 x Kiểu A)
4 cổng USB 2.0
SOFTWARE FEATURES
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
-5-way Optimization with AI Overclocking.
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
-EZ update
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
ASUS SPECIAL FEATURES
Extreme Engine Digi+
- 5K Black Metallic Capacitors
- ON-semi NCP302045
- MicroFine Alloy Choke
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
BACK I/O PORTS
1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
INTERNAL I/O PORTS
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x VRM_HS_FAN Header
PHỤ KIỆN
User's manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
1 x 2-in-1 Rubber pad
1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)
1 ROG key chain
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
MANAGEABILITY
WOL by PME, PXE
FORM FACTOR
Dạng thiết kế mATX
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
