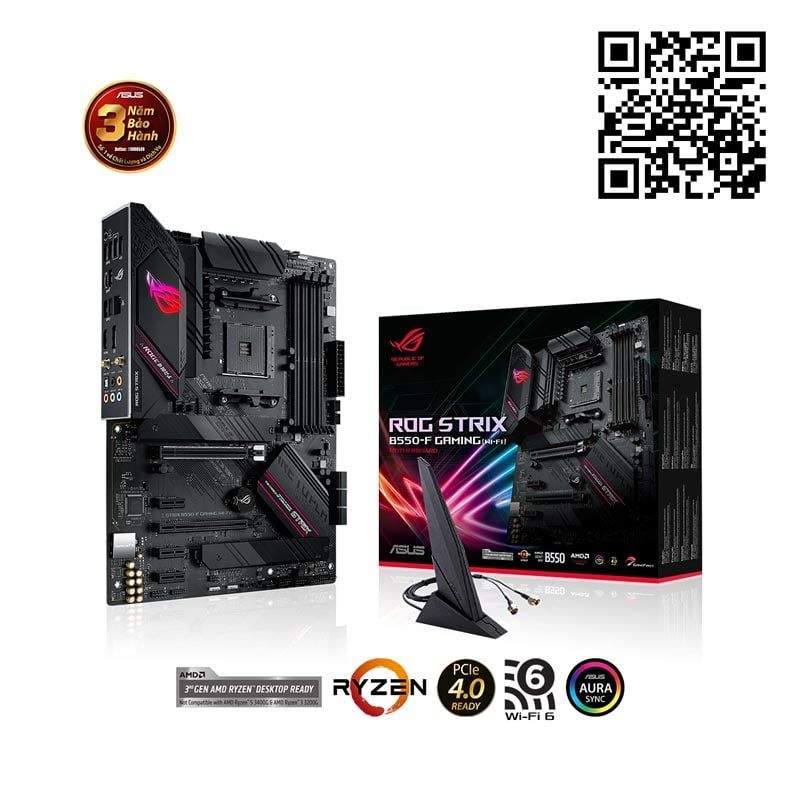

ASUS ROG STRIX B550-F GAMING WIFI

ASUS ROG STRIX B550 F GAMING WIFI

ROG STRIX B550-F GAMING (WI-FI)

ROG STRIX B550-F GAMING (WI-FI)

ROG STRIX B550-F GAMING (WI-FI)

THÔNG SỐ KỸ THUẬT

CPU: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Chipset: AMD B550

Bộ nhớ:

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Next Generation AMD Ryzen PRO Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory

Dual Channel Memory Architecture

OptiMem II

ECC Memory (ECC mode) support varies by CPU.

Đồ họa:

Integrated Graphics Processor

1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

Multi-GPU Support:

Supports AMD 2-Way CrossFireX Technology

Khe cắm mở rộng:

3rd Gen AMD Ryzen™ Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 3.0 x1

Lưu trữ: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

LAN:

Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Dữ liệu mạng không dây

Intel® Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth: Bluetooth v5.1

Âm thanh:

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/192kHz playback *

Audio Feature :

- SupremeFX Shielding™ Technology

- Optical S/PDIF in port(s) at back panel

- Audio Shielding

- Premium Japanese audio capacitors

- Audio Cover

Cổng USB

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 2.0 port(s)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

Tính năng phần mềm

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software Features

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise Cancelling Microphone

AI Suite 3:

- PPSU

EPU

DIGI+ VRM

Fan Xpert 4

TurboV EVO

- EZ update

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Tính năng đặc biệt của ASUS

Aura Sync

- Standard RGB header(s)

- Addressable Gen 2 RGB header(s)

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

-BIOS FlashBack™ button

-BIOS FlashBack™ LED

-Clear CMOS header

-ProCool

-Pre-mounted I/O shield

- SafeSlot

Cổng I/O phía sau

1 x Intel® I225-V 2.5Gb Ethernet

1 x DisplayPort

1 x HDMI

2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Cổng I/O nội bộ

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x AAFP connector

2 x Aura RGB Strip Header(s)

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

Phụ kiện:

User's manual

4 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x ROG Strix stickers

1 x Cable ties pack(s)

1 x Extension cable for Addressable LED

1 x ROG Thank you card

1 x Wi-Fi moving antenna

1 x M.2 SSD screw package(s)

1 x M.2 Rubber Package(s)

Khả năng quản lý: WOL by PXE

Hệ điều hành: Windows® 10 64-bit

Kích thước bo mạch chủ:

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
