ASUS PROART Z490 CREATOR 10G

ASUS PROART Z490 CREATOR 10G

ASUS PROART Z490 CREATOR 10G

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

THÔNG SỐ KỸ THUẬT

CPU:

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: Intel® Z490

MEMORY

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

THUNDERBOLT

2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs

Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*

* VGA resolution support depends on VGA cards' resolution.

Data transfer rate up to 40 Gbps

Daisy-chain up to 12 Thunderbolt devices

Up to 5V/3A, 15W charging support

MULTI-GPU SUPPORT

Supports AMD 3-Way CrossFireX™ Technology

GRAPHIC

Integrated Graphics Processor

1 x DisplayPort 1.4

1 x HDMI 1.4b

EXPANSION SLOTS

Intel® 10th Gen Processors

2 x PCIe 3.0 x16 (x16 or dual x8) *1

Intel® Z490 Chipset

1 x PCIe 3.0 x16 (x4 mode) *2

2 x PCIe 3.0 x1

STORAGE

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Z490 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

LAN

Intel® I225-V 2.5Gb Ethernet

WIRELESS DATA NETWORK

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports CNVI interface

AUDIO

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback

- High quality 120 dB SNR stereo playback output and SNR recording input

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

- Audio Cover

- Unique de-pop circuit

USB PORTS

Intel® Thunderbolt™ 3 Controller :

2 x USB 3.2 Gen 2 port(s) (USB Type-C®)

Rear USB Port ( Total 6 )

4 x USB 3.2 Gen 2 port(s)(4 x Type-A)

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

Front USB Port ( Total 7 )

1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C®)

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)

SOFTWARE FEATURES

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

5-Way Optimization with AI Overclocking

- TPU

- EPU

- Digi+ VRM

- EZ update

- Fan Xpert 4

- Turbo app

ProArt Creator Hub

AI Charger

Optimization tool specially for content creators

WinRAR

UEFI BIOS

AI Optimization Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

- ASUS UEFI BIOS EZ Mode

ASUS SPECIAL FEATURES

ASUS 5X PROTECTION III

- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED

- ASUS Q-Shield

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS EZ DIY

- Procool

- SafeSlot

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header(s)

- Addressable Gen 2 RGB header

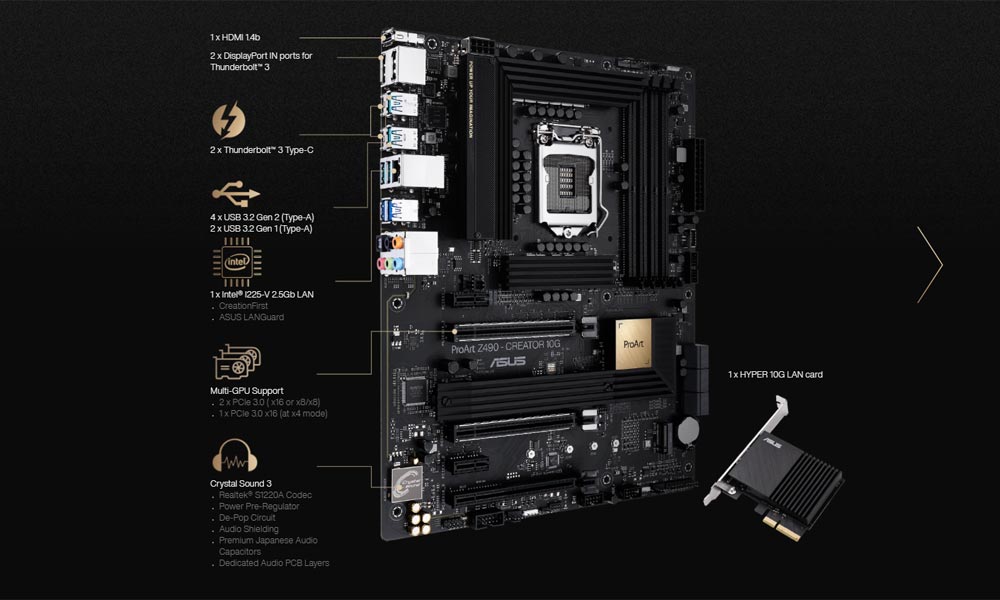

BACK I/O PORTS

2 x Thunderbolt 3 ports TypeC™

2 x DisplayPort IN ports for Thunderbolt™ 3

1 x HDMI

1 x LAN (2.5G) port(s)

4 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1 Type-A

1 x Optical S/PDIF out

5 x Audio jack(s)

INTERNAL I/O PORTS

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function

1 x Thermal sensor connector(s)

1 x CPU OV

1 x Clear CMOS jumper(s)

1 x COM port header

PHỤ KIỆN

I/O Shield

4 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x DisplayPort cable

User manual

1 x CPU Fan Holder

1 x 2-in-1 Rubber pad

1 x HYPER 10G LAN CARD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME, PXE

HỆ ĐIỀU HÀNH: Windows® 10 64-bit

FORM FACTOR

ATX Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
