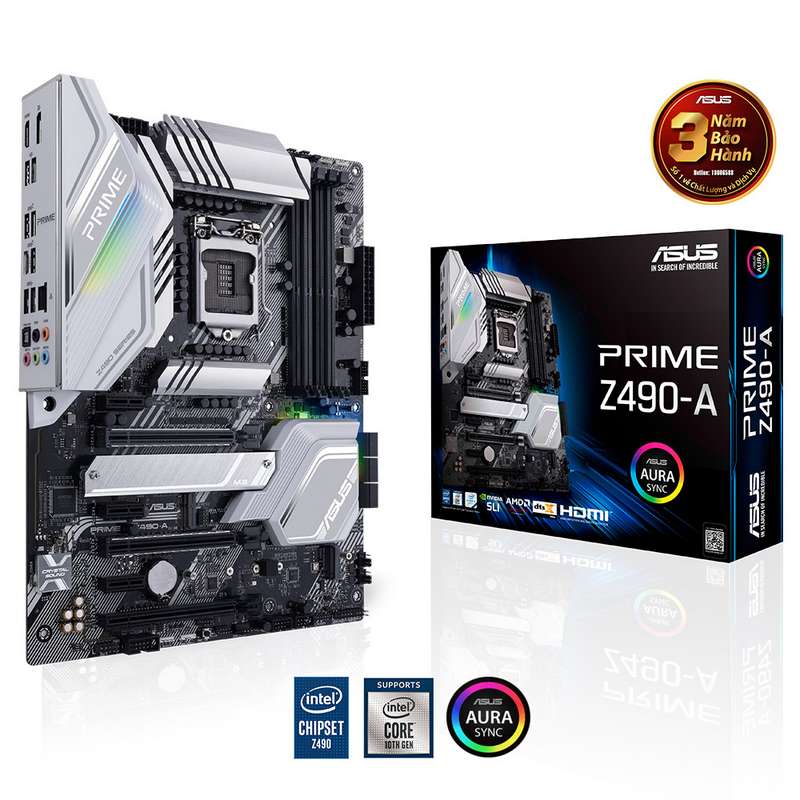

ASUS PRIME Z490 A

Rê chuột lên hình để phóng to

ASUS PRIME Z490 A

  • SKU: PRIME Z490-A
  • Thương hiệu: ASUS

6,720,000₫

(Đã bao gồm 10% VAT)

Bảo hành: 36 tháng

Trả góp 0%

CAM KẾT BÁN HÀNG :

  • Sản phẩm 100% chính hãng.
  • Sản phẩm mới 100%.
  • Hoàn tiền 120%. Phát hiện hàng. giả
  • Hỗ trợ nhanh khi cần.
  • Mua hàng nhanh : 0938 975 268.

GIAO HÀNG :

  • Nội thành HCM 30 đến 120 phút.
  • Tỉnh thành khác - Từ 1 - 3 ngày.
  • Thanh toán khi nhận hàng
  • Xem hàng trước khi thanh toán
Liên kết với chúng tôi

SẢN PHẨM CÓ THỂ MUA CÙNG

ASUS PRIME Z490 A


ASUS PRIME Z490 A

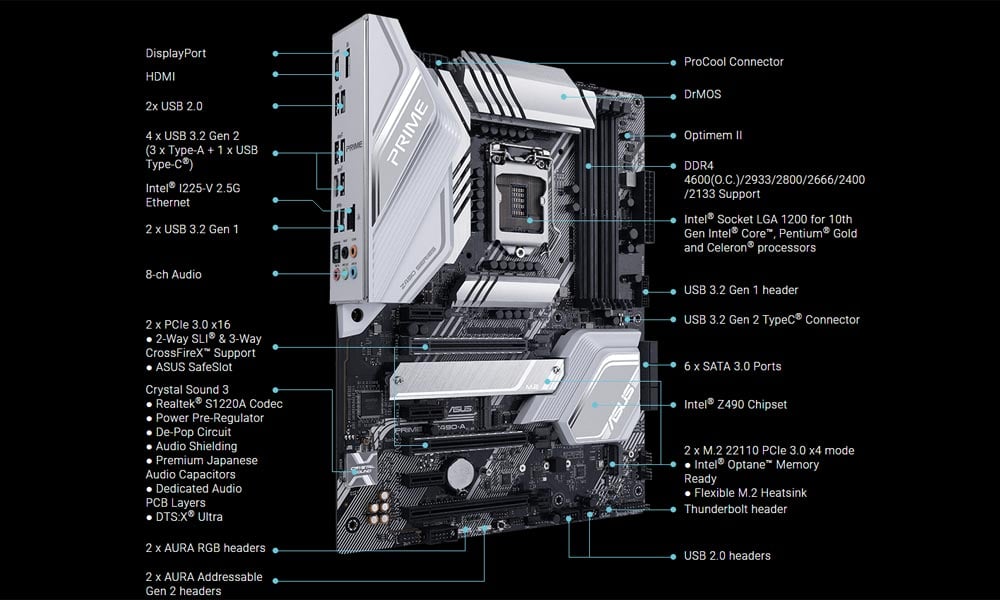

THÔNG SỐ KỸ THUẬT

THÔNG SỐ KỸ THUẬT

CPU:

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: Intel® Z490

MEMORY

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

OptiMem II

GRAPHIC

Integrated Graphics Processor

1 x DisplayPort 1.4 **

1 x HDMI 1.4b

MULTI-GPU SUPPORT

Supports NVIDIA 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

EXPANSION SLOTS

Intel® 10th Gen Processors

2 x PCIe 3.0 x16 (x16 or dual x8) *1

Intel® Z490 Chipset

1 x PCIe 3.0 x16 (max at x4 mode)

3 x PCIe 3.0 x1 *2

STORAGE

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® Z490 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

LAN

Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

WIRELESS DATA NETWORK

M.2 slot only (Key E) (Support CNVI & PCIe interface)

AUDIO

Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/192kHz playback

Audio Feature :

- Optical S/PDIF in port(s) at back panel

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

- Audio Cover

- Unique de-pop circuit

- Power pre-regulator: Reduces power input noise to ensure consistent performance

USB PORTS

Rear USB Port ( Total 8 )

4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 7 )

1 x USB 3.2 Gen 2 front panel connector port(s)

2 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

SOFTWARE FEATURES

ASUS Exclusive Software:

Armoury Crate:

- Aura Creator

- Aura Sync

AI Suite 3

- 5-way Optimization with AI Overclocking

TPU

EPU

Digi+ VRM

Fan Xpert 4

Turbo app

- EZ update

AI Charger

ASUS Turbo LAN

DTS

:X

®

Ultra

UEFI BIOS:

AI Overclocking Guide

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- EZ Tuning Wizard

FlexKey

ASUS SPECIAL FEATURES

ASUS 5X Protection III :

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM - Digital power design with Dr. MOS

- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention

- ASUS ESD Guards - Enhanced ESD protection

AURA :

- Aura RGB Strip Headers

- Addressable Gen 2 Header

ASUS Exclusive Features :

- Pre- mounted I/O shield

ASUS Quiet Thermal Solution :

- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution

ASUS Q-Design :

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

DIY Friendly Design

- Procool

- SafeSlot

BACK I/O PORTS

1 x Intel® I225-V 2.5Gb Ethernet

1 x DisplayPort

1 x HDMI

4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)

2 x USB 3.2 Gen 1

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

INTERNAL I/O PORTS

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x W_PUMP+ connector

1 x AAFP connector

2 x Aura RGB Strip Headers

2 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)

1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 with E key for Wi-Fi module

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Thermal sensor connector(s)

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

1 x CPU_OV jumper

1 x M.2 Fan Header

ACCESSORIES

User's manual

3 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x Q-Connector

1 x CPU Fan Holder

1 x M.2 SSD screw package(s)

1 x M.2 Key E screw package(s)

1 x M.2 Rubber Package(s)

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME, PXE

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
