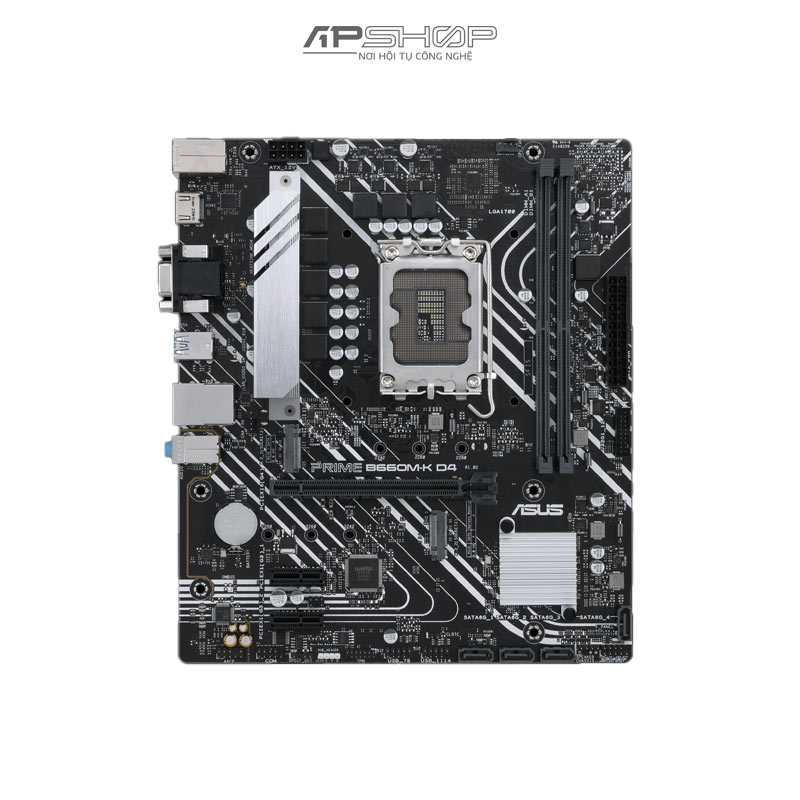

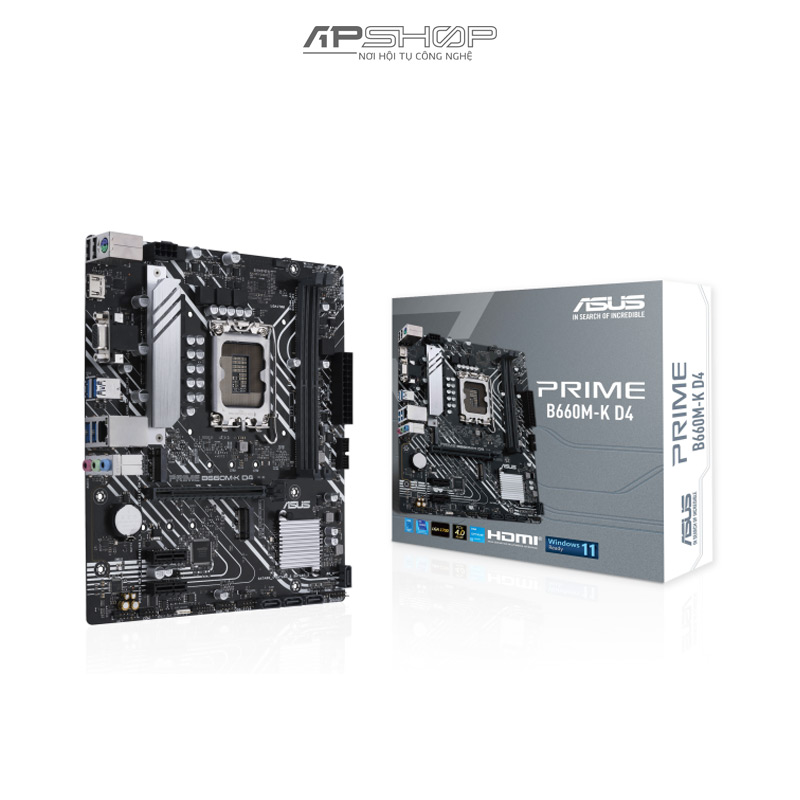

ASUS PRIME B660M-K D4 | Chính hãng

CPU:

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ nhớ:

Kênh bộ nhớ:2DDR4 (Bộ nhớ kép)

Dung lượng bộ nhớ tối đa:64GB

2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Đồ họa:

1 x D-Sub

1 x HDMI 2.0

1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Support 4K@60Hz as specified in HDMI® 2.1.

Khe cắm mở rộng:

1 x PCIe 4.0/3.0 x16 (chế độ x16)

Intel® 13th & 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel® B660 Chipset

2 x PCIe 3.0 x1 slots

Ethernet:

1 x Realtek 1Gb Ethernet

ASUS LANGuard

USB:

USB phía sau:6 cổng

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A）

USB phía trước:6 cổng

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Âm thanh:

ALC887/897

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Cổng I/O mặt sau:

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Đầu nối I/O nội bộ:

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB:

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý: WOL by PME, PXE

Phụ kiện:

Cables

2x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

2 x M.2 anchors

Installation Media

1 x Support DVD

Documentation

1 x User manual

Hệ điều hành: Windows® 11, Windows® 10 64-bit

Dạng thiết kế:

microATX

24,4cm x 21,1cm
