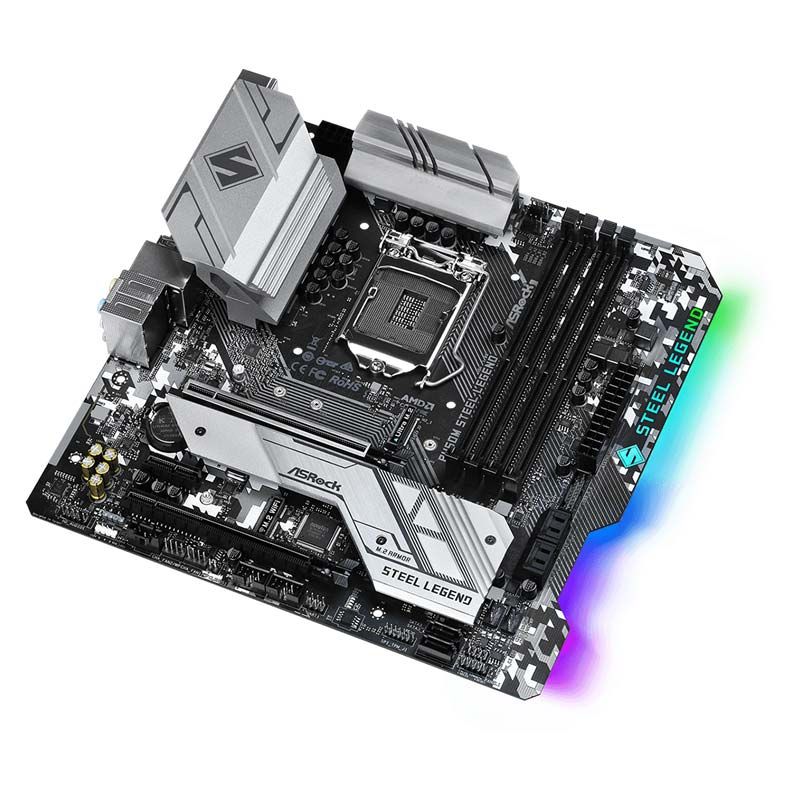

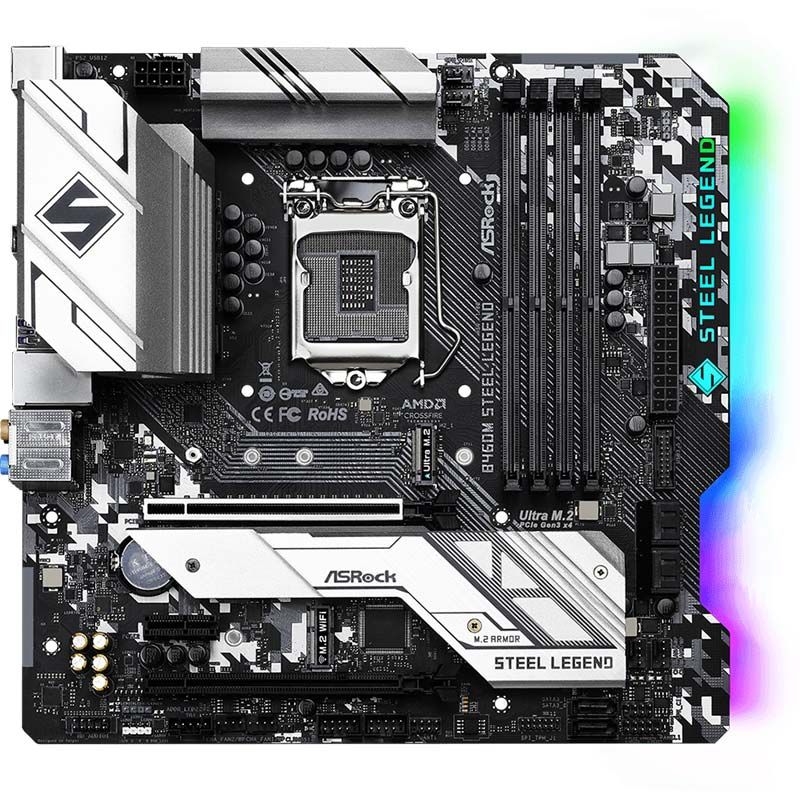

ASROCK B460M Steel Legend

Rê chuột lên hình để phóng to

ASROCK B460M Steel Legend

  • SKU:
  • Thương hiệu: Asrock

2,790,000₫

(Đã bao gồm 10% VAT)

Bảo hành: 36 tháng

Trả góp 0%

CAM KẾT BÁN HÀNG :

  • Sản phẩm 100% chính hãng.
  • Sản phẩm mới 100%.
  • Hoàn tiền 120%. Phát hiện hàng. giả
  • Hỗ trợ nhanh khi cần.
  • Mua hàng nhanh : 0938 975 268.

GIAO HÀNG :

  • Nội thành HCM 30 đến 120 phút.
  • Tỉnh thành khác - Từ 1 - 3 ngày.
  • Thanh toán khi nhận hàng
  • Xem hàng trước khi thanh toán
Liên kết với chúng tôi

SẢN PHẨM CÓ THỂ MUA CÙNG

ASROCK B460 Steel Legend

ASROCK B460M Steel Legend

  • Supports 10th Gen Intel® Core™ Processors(Socket 1200)
  • 9 Phase Dr.MOS Power Design
  • Supports DDR4 2933MHz
  • 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2(Key E) For WiFi
  • AMD CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
  • 7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)
  • Dragon 2.5 Gigabit LAN
  • ASRock Polychrome SYNC



THÔNG SỐ KỸ THUẬT

Sản phẩm: Bo mạch chủ

Tên Hãng: Asrock

Model: B460M Steel Legend

CPU hỗ trợ: Intel

Chipset: B460

RAM hỗ trợl: 4 x DDR4 DIMM Slots ( tối đa 128GB )

Khe cắm mở rộng

  • 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
  • 1 x PCI Express 3.0 x1 Slot
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • Ổ cứng hỗ trợ
  • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
  • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Cổng kết nối (Internal)

  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x RGB LED Header
  • 2 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

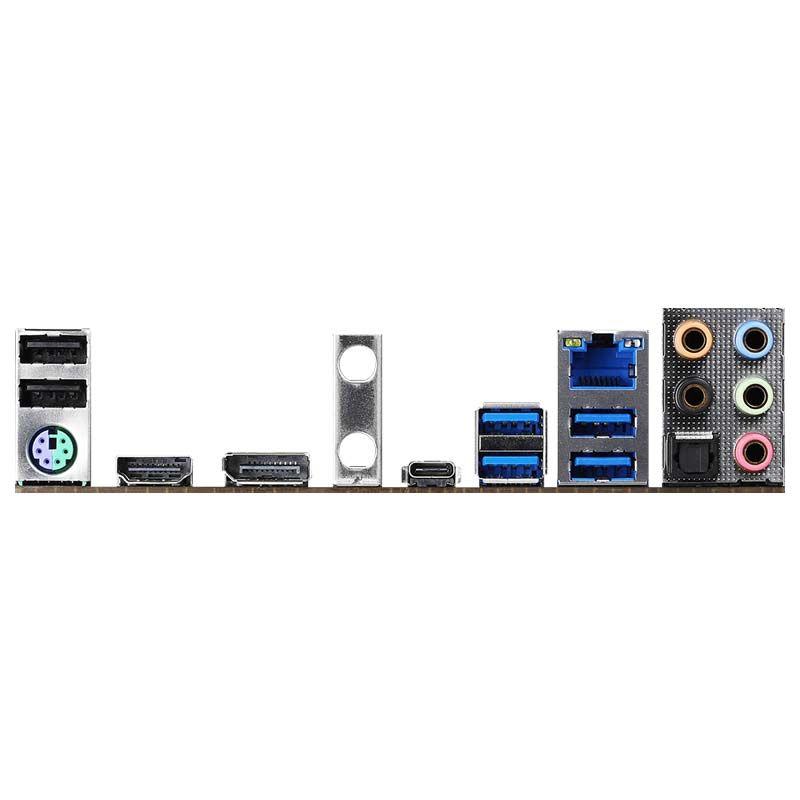

Cổng kết nối (Back Panel)

  • 1 x Antenna Bracket
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

LAN / Wireless:

  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE

Kích cỡ: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
